Operating Instructions Chapter 6
C4000 Palletizer Std./Adv.
C4000 Fusion
8012249/YT69/2016-02-25 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 69
Subject to change without notice
Mounting
Mount the bolts marked with to on the operator side of the system to ensure that
they remain accessible after mounting and to allow you to readjust the safety light
curtain later, if necessary.
If you wish to use the additional front screen (see “Additional front screen (weld spark
guard)” on page 115), make sure that the curved side of the device remains accessible
after mounting.

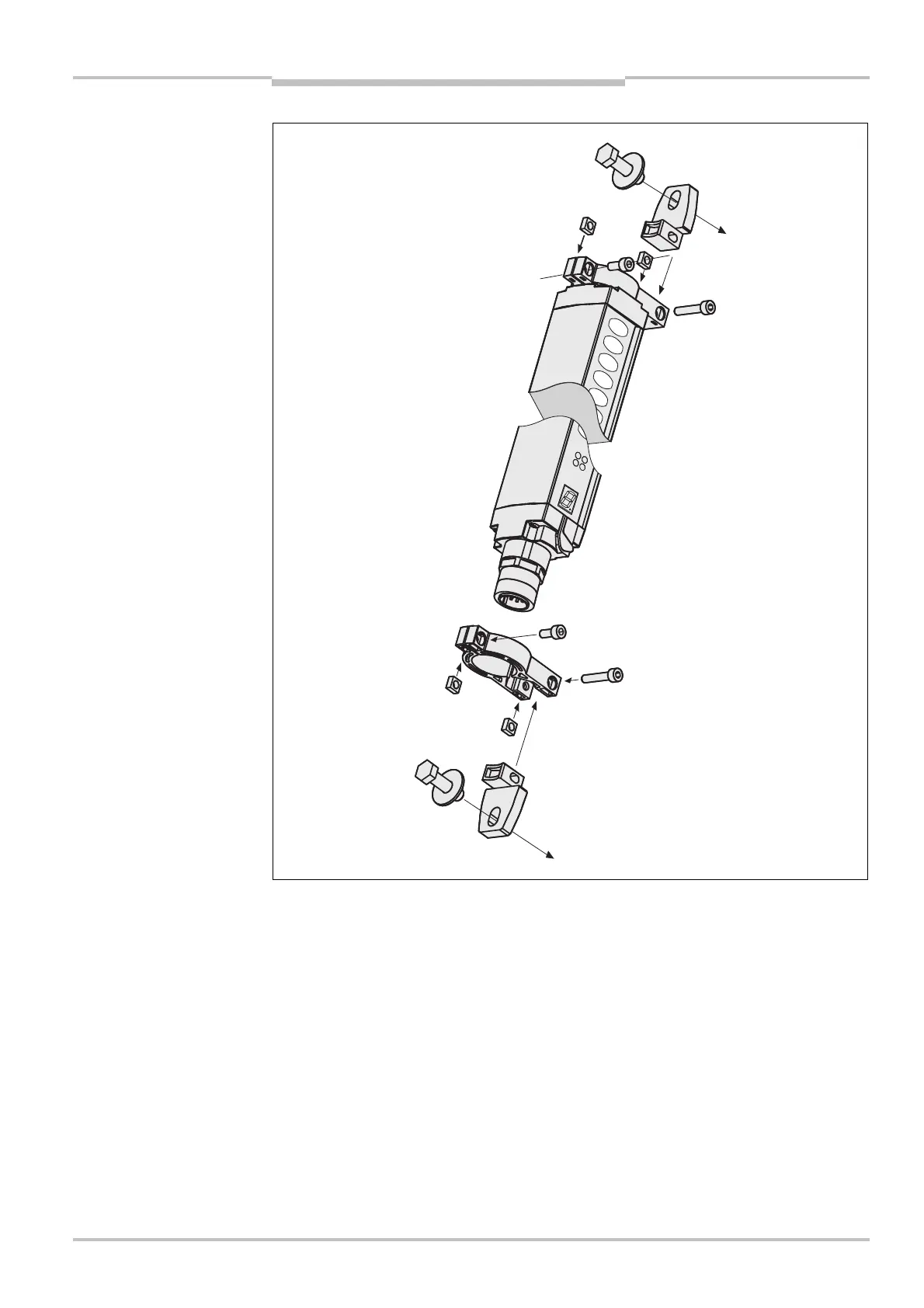

receiver using swivel mount
brackets
