SICK DUSTHUNTER T User Manual

Operating Instructions GM35
Probe Model
Handling the evaluation unit
8009389/07-2006 © SICK MAIHAK GmbH • Germany · All rights reserved 43

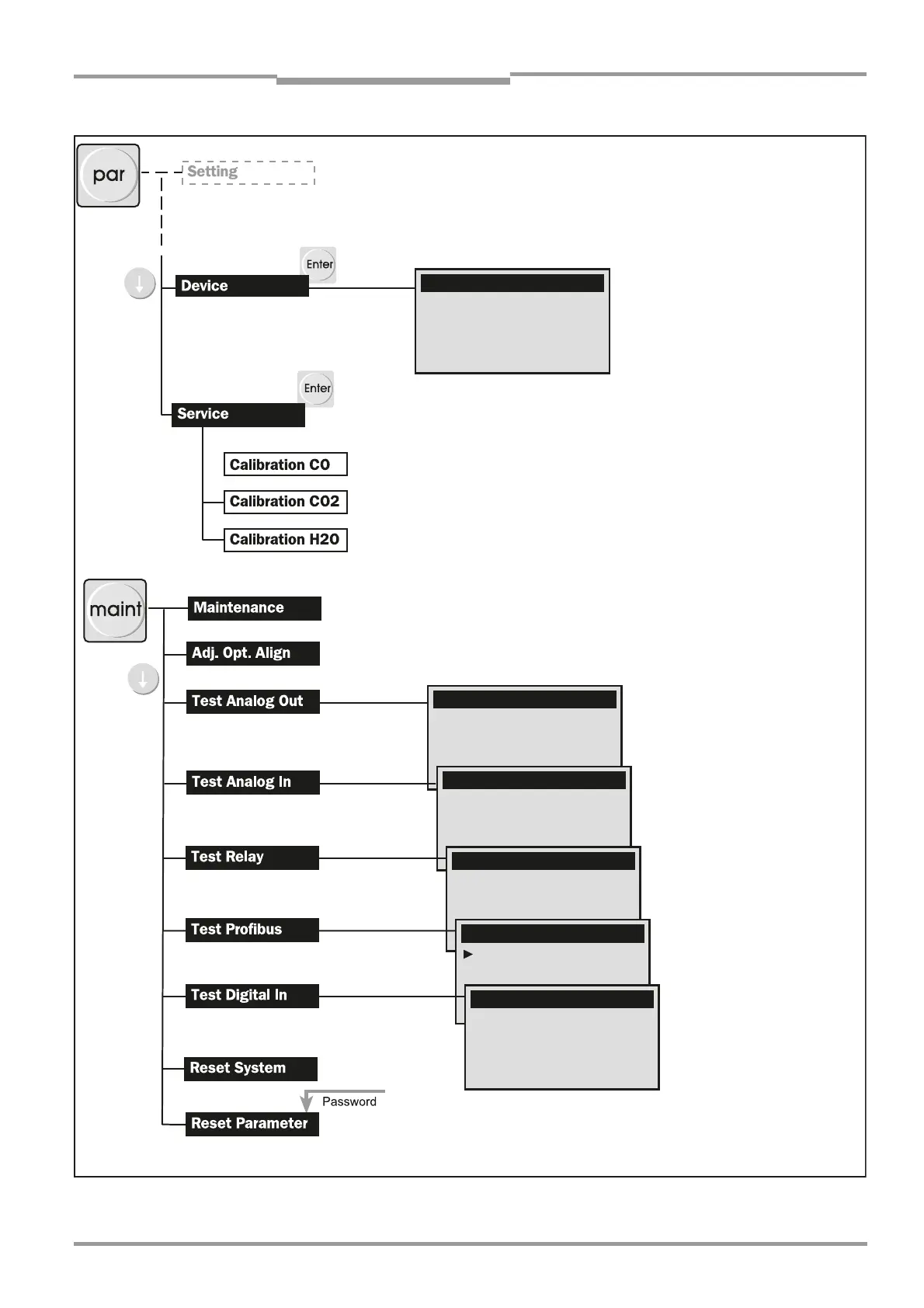

Fig. 23 Menu structure of the GM35/part 3
Parameter Device
Serial Number:
Software Revision
Parameter settings,
continued
Maintenance mode
Maintenance switch:
ON / OFF
Function for optical
alignment of the SR unit
and reflector
Test analog outputs
Test analog inputs
Test relay outputs
PROFIBUS test:
• Cold start (initialization):
default values are
loaded.
• Warm start: PROFIBUS
module restarted.
Test digital inputs
System restart
Reset: default parameter
settings active
Test Analog Out
← back
AO 1: 20.0 mA
AO 2: 4.0 mA
AO 3: 16.4 mA
AI 4: not active
Test Analog In
← back
AI 1: 0.0 mA
AI 2: 4.0 mA
AI 3: 10.0 mA
Test Relay
← back
Relay 1: on
Relay 2: off
Relay 3: on
Test Profibus
← back
Cold Start
Warm Start
Test Digital In
← back
DI 1: open
DI 2: open
DI 3: close
