SICK DUSTHUNTER T User Manual

(7) Communication port setup (F3 screen)
1) Outline
-. Communication port set-up
-. Communication protocol set-up

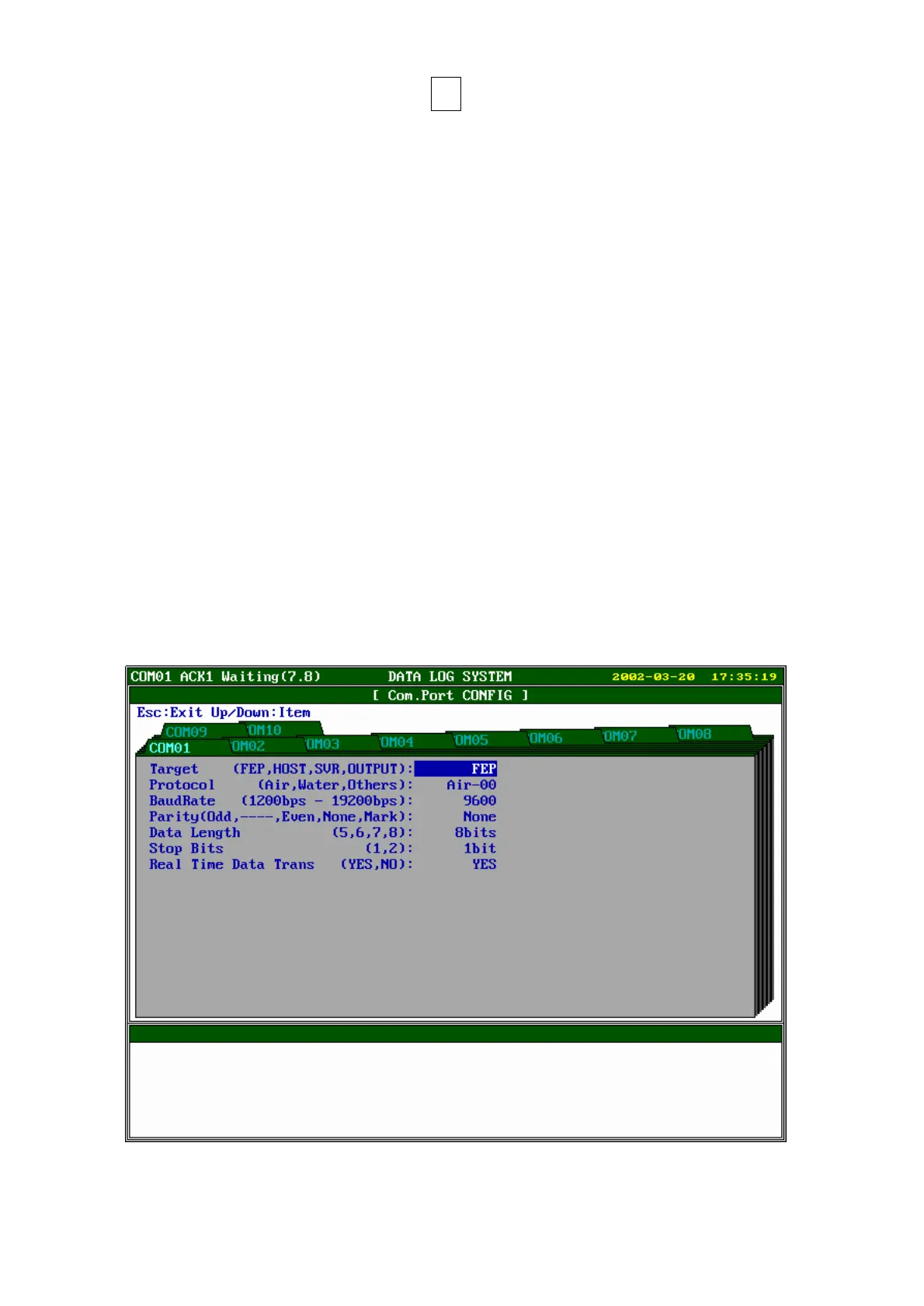

2) Screen Feature
① Target: set a target to be connected into the selected communication port.
A. DL, HOST: Data transmission by exchanging bi-directional controlling signal.
(Protocol that is defined by ‘ 2000 airs environmental pollution process
examination processes’ ) (Set point: HOST, FEP)
B. FEP: Data transmission by FEP
C. SVR, OUT1~3: data transmission by single direction at fixed time (one-way
communication)
② Protocol: Air-00 (Air), Water (Quality of water) etc (Set point: AIR-00)
③ Baud Rate: Transmission speed (Set point: 9600)
④ Parity: Even, Odd, None, etc (Set point: None)
⑤ Data Length: 5, 6, 7, 8 (Set point: 8)
⑥ Stop Bits: 1,2 (Set point: 1)
