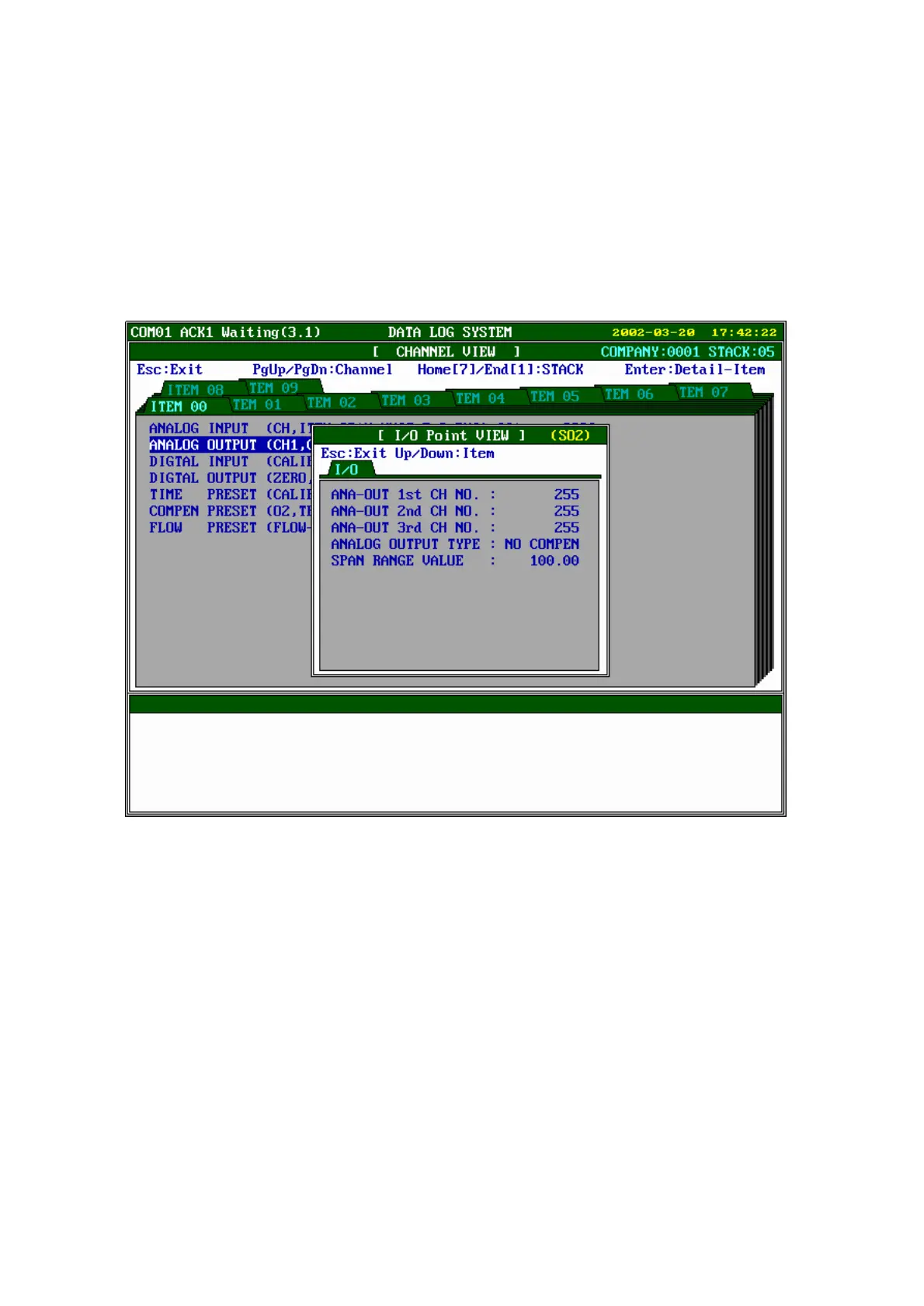

④ ANALOG OUTPUT’ s Point View
A. ANA-OUT 1st CH NO.: AO POINT number of relevant item
B. ANA-OUT 2nd CH NO.: AO POINT number of relevant item
C. ANA-OUT 3rd CH NO.: AO POINT number of relevant item
D. ANALOG OUTPUT TYPE: Select one of output AO values, which are of
calibration applied to and not applied to the AI value Data Logger.
PARAMETER RANGE: NO COMPEN -- COMPENSAT
E. SPAN RANGE VALUE: SPAN RANGE value
[Picture 19]
