â‘¡ Selecting Point View screen: move bar cursor by using arrow key, then press
enter.

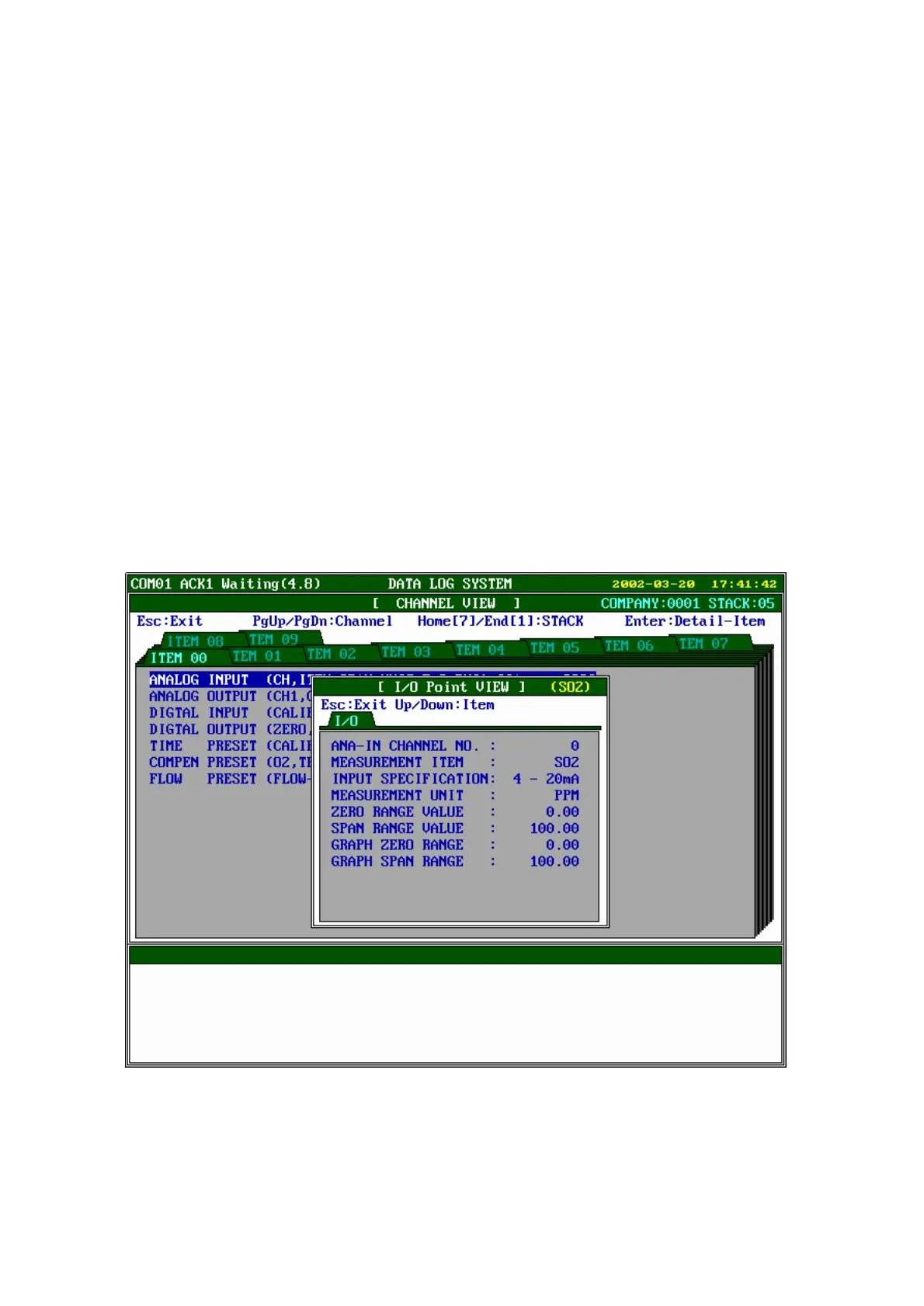

③ ANALOG INPUT‘ s point view
A. ANA-IN CHANNEL NO.: AI POINT number connected relevant item.
! Caution: if the number is 255, it is considered as disable. So, it is not
connected to measuring instrument.
B. MEASUREMENT ITEM: Item to measure
! Caution: If item does not exist, terminate the program. After register the item at
‘ item and unit register/correct utility (TABLE.EXE)’ , then reboot the system.
C. INPUT SPECIFICATION: Class of input SOURCE
D.MEASUREMENT UNIT: Unit of measuring item
! Caution: If unit does not exist, terminate the program. After register the unit at
‘ item and unit register/correct utility (TABLE.EXE)’ , then reboot the system.
E. ZERO RANGE VALUE: ZERO RANGE value
F. SPAN RANGE VALUE: SPAN RANGE value
G. GRAPH ZERO RANGE: Trend graph ZERO RANGE value
H. GRAPH SPAN RANGE: Trend graph SPAN RANGE value
[Picture 18]
