8012428/YWL2/3-0/2016-08| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER T
Subject to change without notice
PRODUCT DESCRIPTION 2
Self-alignment functionality (only DUSTHUNTER T200)
sender module can be moved horizontally and vertically using motors and bevel gears so
that the sender light beam can be adjusted by approximately 2° in all directions. Tracking
is performed using the measurement signal on the 4 quadrants of the measurement
receiver. This allows automatic compensation of optical axis misalignment caused by, for
example, distortion of duct walls due to temperature fluctuations.

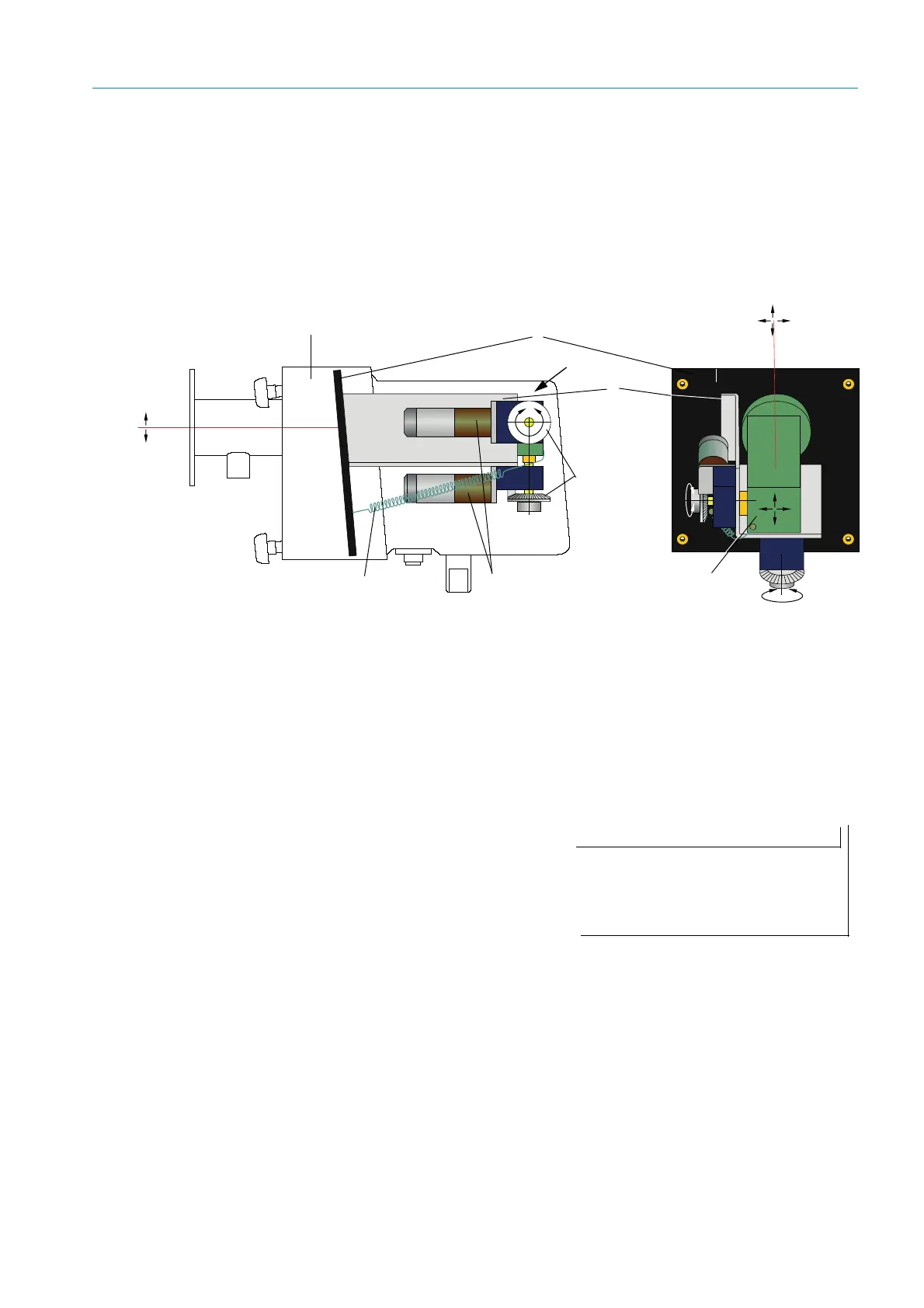

Fig. 8: Self-alignment principle design
Type code
A type code identifies the special version of the sender/receiver unit:
A
A
Sender/receiver unit
Sender module
Base plate
Drive
Retaining bracket
Tension spring
Bevel gear
Sender/receiver unit: DHT-TXX
Contamination measurement:
- 0: Without
- 1: With contamination measurement on one side (sender side only)
- 2: With contamination measurement on both sides
Self-alignment:
- 0: Without
- 1: With
