SICK Flexi Loop User Manual

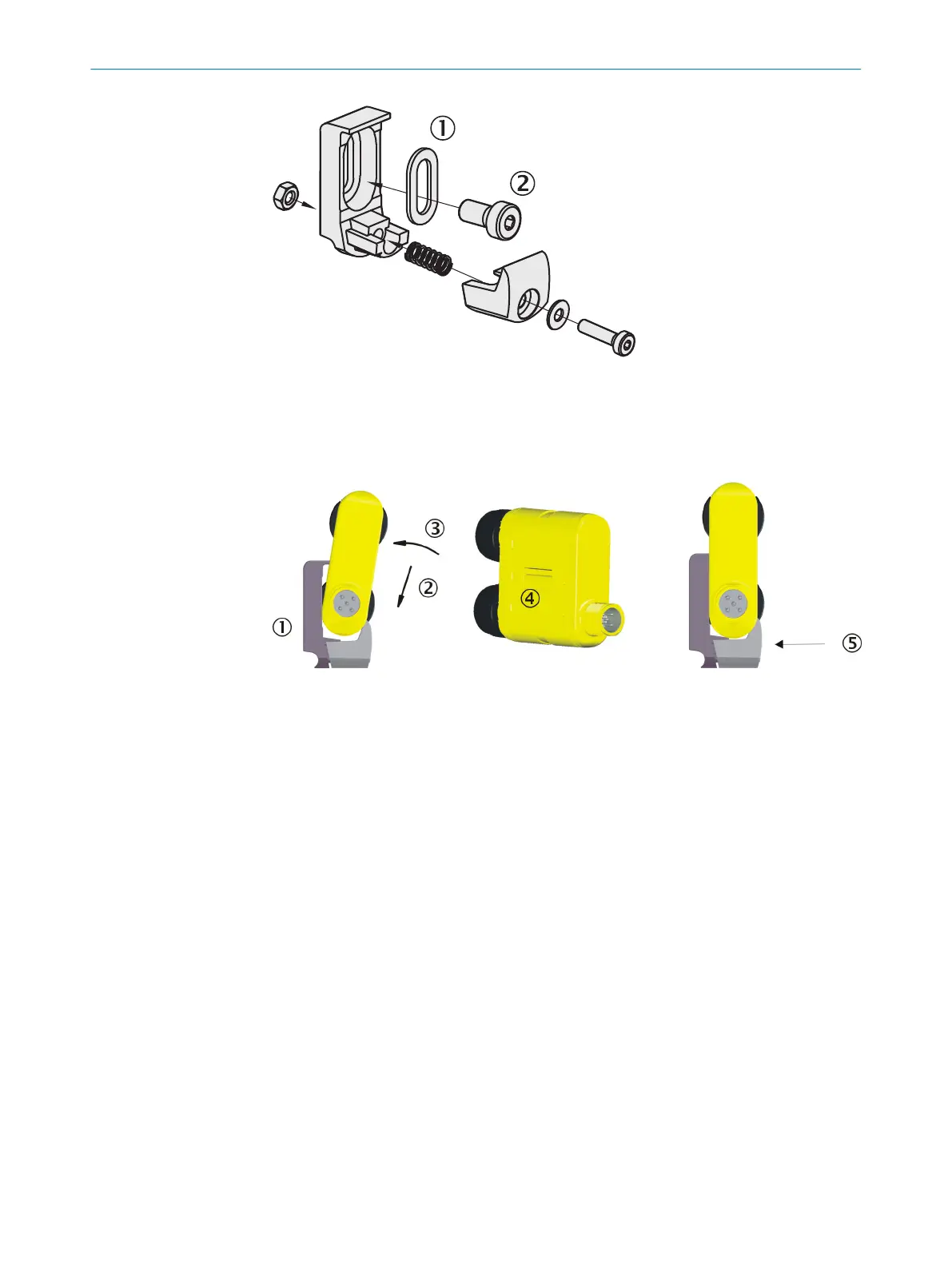

Figure 38: C-Fix bracket
1
Washer
2
Fixing screws M5 (not included)
How to install a Flexi Loop node with a C-Fix bracket:
Figure 39: Mounting the Flexi Loop node with C-Fix bracket
b Mount t
he C-Fix bracket (1) on a flat surface.
b
Fasten the M5 screws to a torque approx. 3 Nm. Higher torques can damage the
bracket, lower torques provide inadequate protection against displacement.
b Fit the Flexi Loop node in the C-Fix brackets and press it down gently (2).
b Rotate the Flexi Loop node to the rear (3) until the C-Fix bracket engages in the
slot on the housing of the Flexi Loop node (4).
b
Fasten the M3 screws for the C-Fix brackets to a torque of approx. 1.5 Nm to fix
the Flexi Loop node (5).
Mounting on mounting profiles with T-slots
The C-F
ix brackets are suitable for mounting the Flexi Loop nodes on mounting profiles
with T-slots.
INSTALLATION AND MOUNTING 5
8015836/YT10/2016-05-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Loop
41
Subject to change without notice
