Node LEDs 1 to 32 MS LED Meaning
 R
ed/green (2 Hz)  Red/green (2 Hz)
Node found, but does not correspond to the
conf
igured type or the number of nodes config‐
ured has been exceeded.
 R
ed (2 Hz)  Red/green (2 Hz)
Configured node not found
 R
ed/green (1 Hz)  Green (0.5 Hz)
Node found, but safe sensor cascade inter‐
r
upted (cable break detected).
If multiple LEDs are flashing: The connection
has probably been interrupted downstream of
the Flexi Loop node whose LED is the last one
flashing.
 R
ed (node 1)  Green (0.5 Hz)
Number of Flexi Loop nodes allowed not
r
eached
 R
ed (node 32)  Green (0.5 Hz)
Number of Flexi Loop nodes allowed exceeded
Table 39: Node LEDs of the MSTR1 and MSTR2 Flexi Loop accessory
Operating mode LED Meaning

No operating voltage, or voltage too low
 Gr
een
Compatible safety controller detected, safe sensor cascade in
oper
ation
 Or
ange
Safety controller found, compatibility test in progress
 R
ed
No safety controller found
 R
ed
Configuration required
 R
ed/green
Configuration process in progress, please wait
 Gr
een
Configuration saved successfully, reboot required
Table 40: Operating mode LED of the MSTR1 and MSTR2 Flexi Loop accessories
9.3.6 LEDs of the MSTR2 Flexi Loop accessory

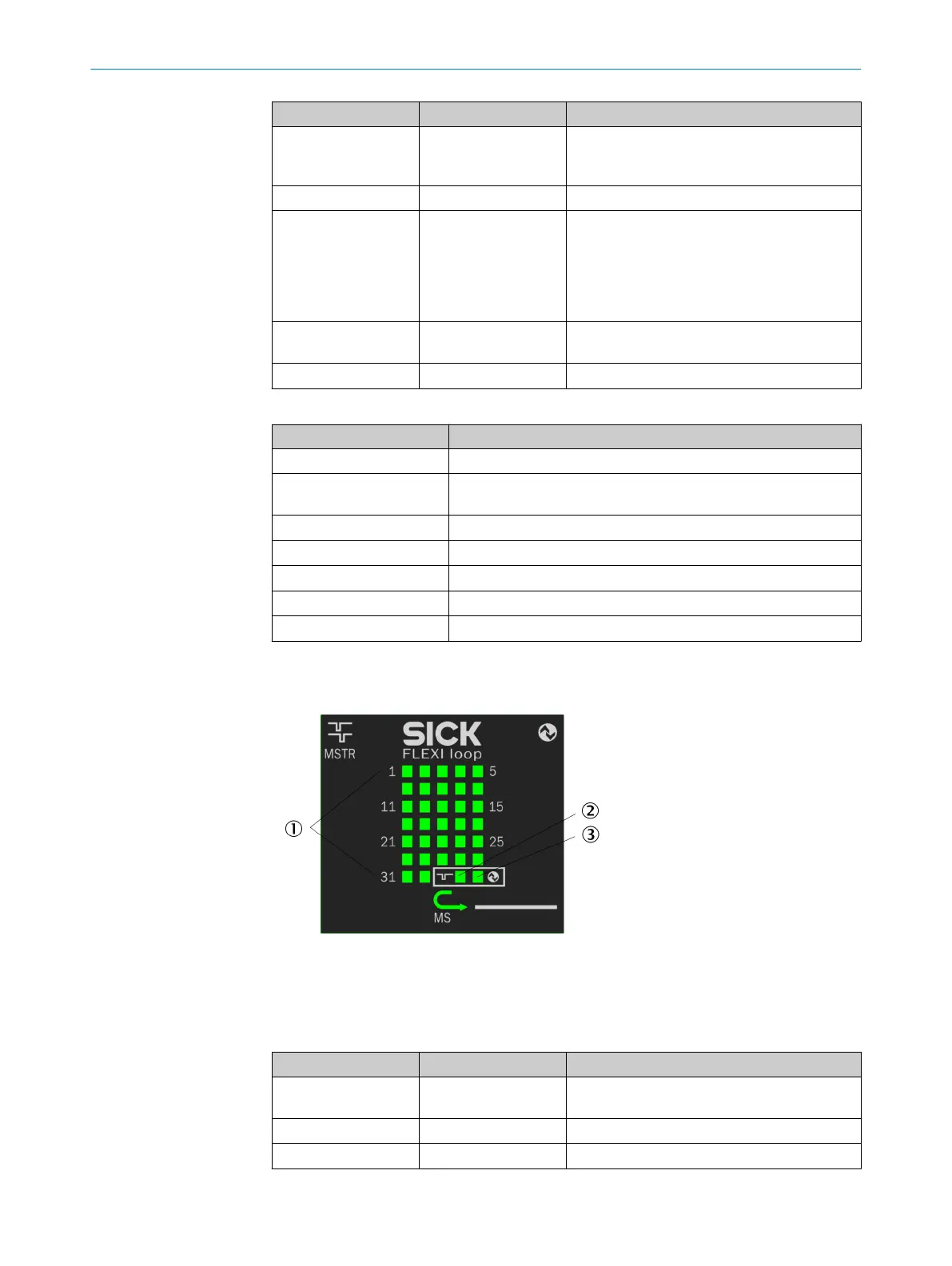

Figure 65: LEDs of the MSTR2 Flexi Loop accessory
1
Node LEDs 1 to 32
2
Operating mode LED
3
IO-Link LED
Node LEDs 1 to 32 MS LED Meaning

–
Node not found (not connected, not in opera‐
tion)
 Gr
een
–
OSSD or EMSS in the ON state
 Gr
een
–
OSSD or EMSS in the OFF state
Table 41: Node LEDs of the MSTR1 and MSTR2 Flexi Loop accessory
9 TROUBLESHOOTING
74
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
