SICK Flexi Loop User Manual

9 Troubleshooting
9.1 In the event of faults or errors
DANGER
In t
he event of unclear faults, cease operation! Stop the machine if you cannot clearly
identify or allocate the error and if you cannot safely rectify the malfunction.
NOTE
b
The saf
e sensor cascade must be disconnected from the voltage supply before
any changes are made.
b
Restart the system after restoring a lost connection or repairing a cable break.
9.2 SICK support
If you cannot remedy the error with the help of the information provided in this chapter,
please cont
act your SICK subsidiary.
9.3 Indications of the LEDs
9.3.1 MS LED

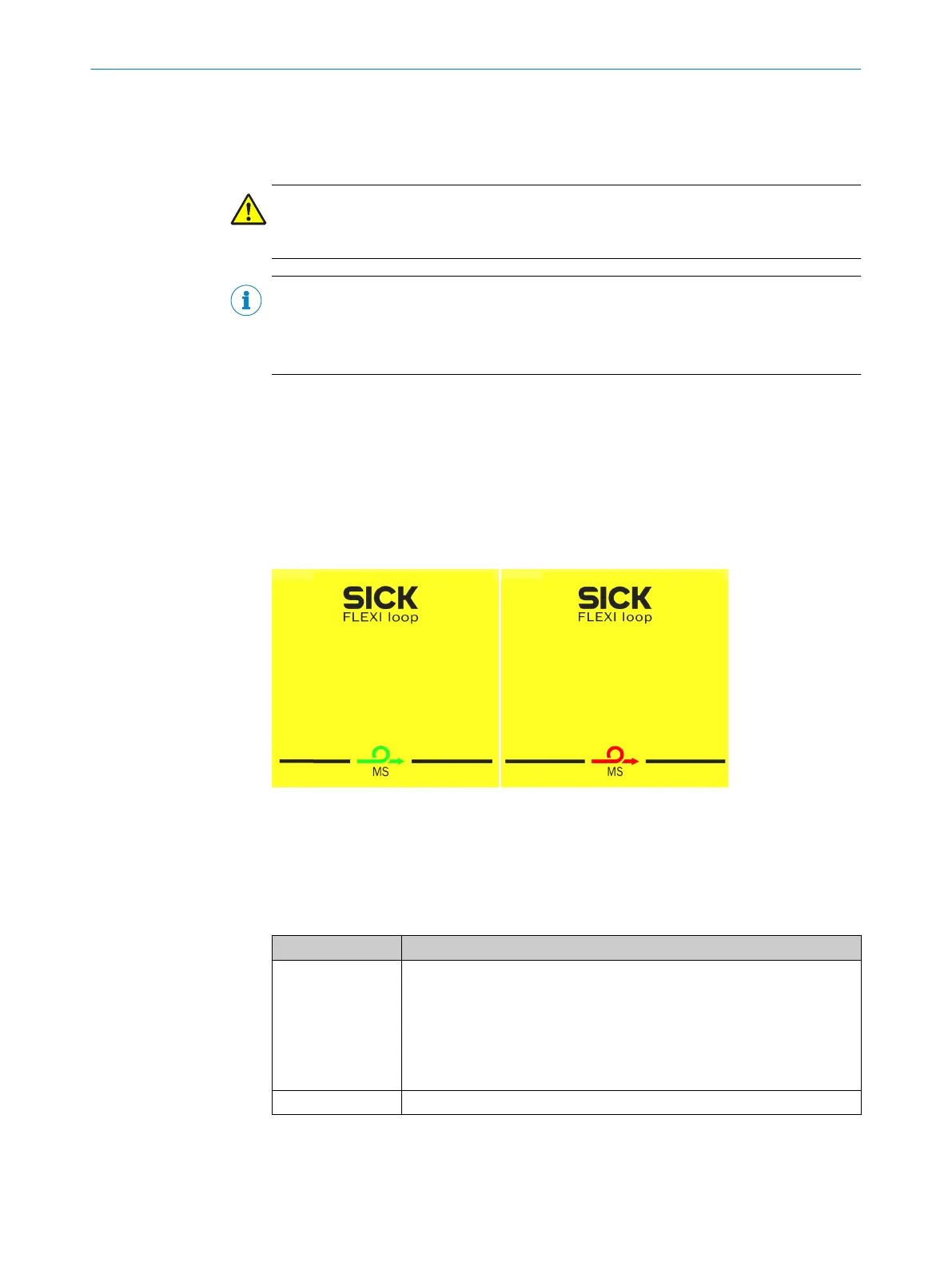

Figure 59: MS LED
The Fle
xi Loop nodes and the Flexi Loop accessory have an LED
10)
which indicates the
communication status and the status of the Flexi Loop node. The designation MS =
module status comes from the Flexi Soft safety controller.
The indications on the LED have the following meaning:
MS Meaning
 Gr
een
The safe sensor cascade is in operation on this and all downstream nodes
and on all Fle
xi Loop accessories. No error occurred.
On the FLN-EMSS0000105, FLN-EMSS1100108, FLN-OSSD1000105
and FLN-OSSD1100108 Flexi Loop nodes:
If both EMSS LEDs or both OSSD LEDs are not constantly illuminated
green on this node, then the safe sensor cascade has been shut down by
this node.

No operating voltage, or voltage too low
Table 29: Displays of the MS LEDs
10)
The onl
y exception is the Flexi Loop YCON adapter.
TROUBLESHOOTING 9
8015836/YT10/2016-05-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Loop
69
Subject to change without notice
