3.3.2 Flexi Loop terminator
FLT-TERM00001

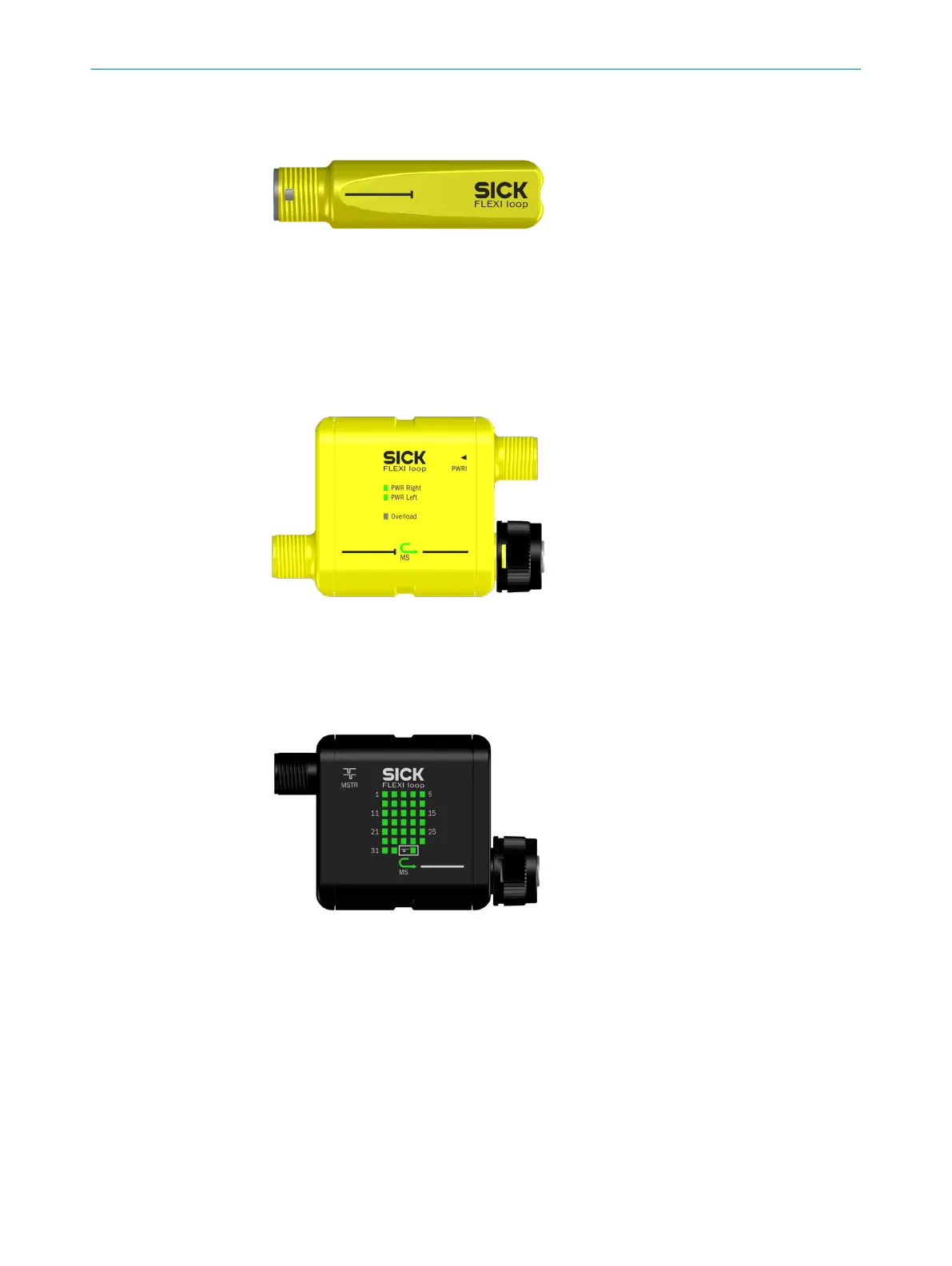

Figure 14: Terminator FLT-TERM00001
The t
erminator is used to terminate the safe sensor cascade at the last Flexi Loop
node. The terminator must be connected directly to the FL_OUT connection of the last
Flexi Loop node (see "Connections of the Flexi Loop nodes", page 44).
3.3.3 Flexi Loop accessories
FLA-PWRI00001
Figure 15: FLA-PWRI00001 power supply accessory
The po
wer supply accessory is used to connect a power supply with +24 V, for the elec‐
trical isolation of individual Flexi Loop sections and for overcurrent shutdown.
FLA-MSTR00001
Figure 16: FLA-MSTR00001 Flexi Loop accessory
The MS
TR1 Flexi Loop accessory connects a safe sensor cascade to a Flexi Classic
safety controller. It requires two test signal outputs (X) and two safe inputs (I) on a Flexi
Classic module. In addition the MSTR1 Flexi Loop accessory is used to monitor the sys‐
tem during commissioning and in operation.
3 PR
ODUCT DESCRIPTION
22
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
