SICK Flexi Loop

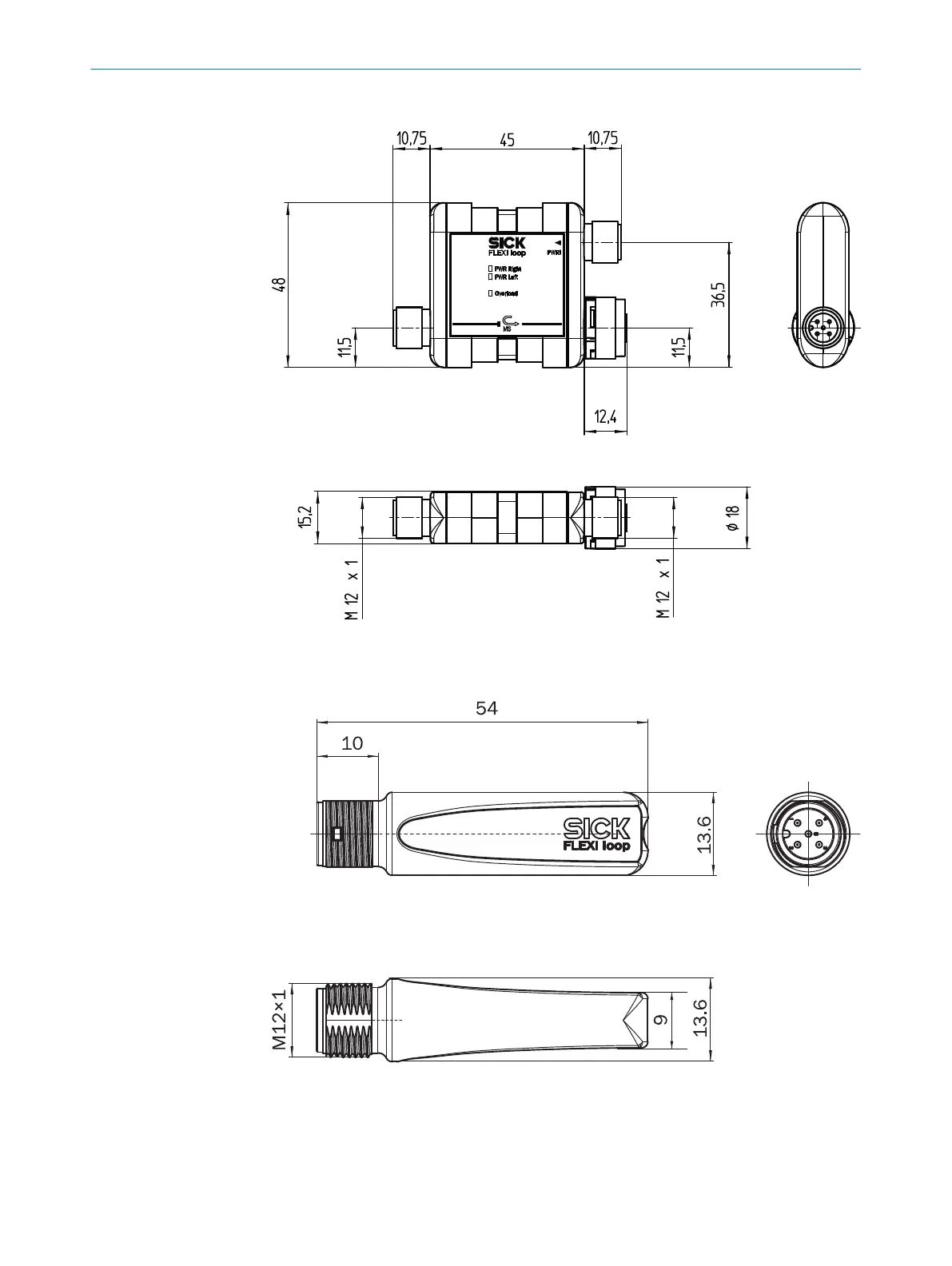

10.2.2 Dimensional drawing PWRI power supply accessory
Figure 71: Dimensional drawing PWRI power supply accessory (mm)
10.2.3 Dimensional drawing terminator
Figure 72: Dimensional drawing Flexi Loop termination element (mm)
10 TECHNICAL DATA
88
