SICK Flexi Loop - Dimensional Drawing C-Fix Bracket

10.2.4 Dimensional drawing C-Fix bracket

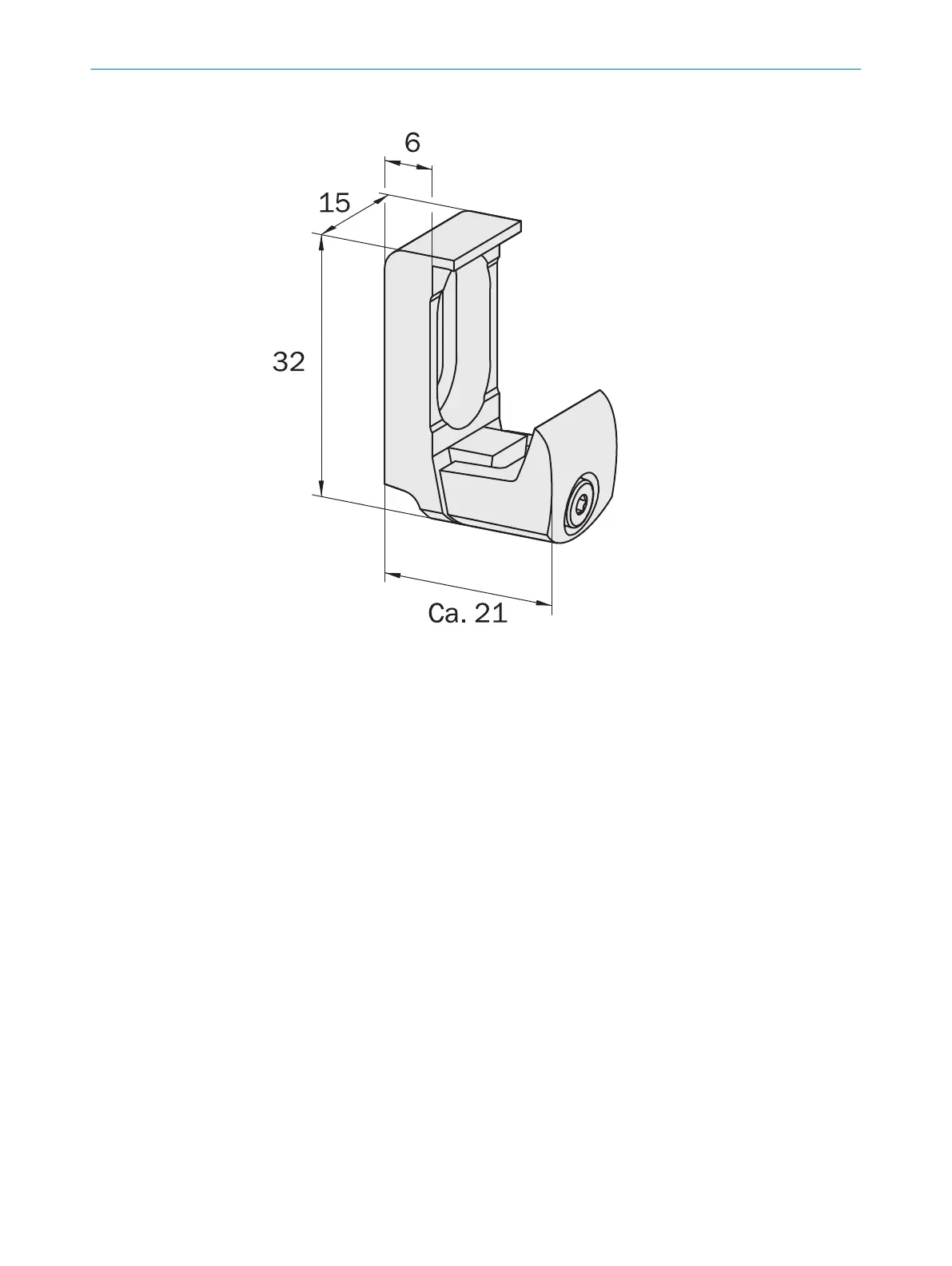

Figure 73: Dimensional drawing C-Fix bracket (mm)
TECHNICAL DATA 10
8015836/YT10/2016-05-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Loop
89
Subject to change without notice
