SICK Flexi Loop

10.2.5 Dimensional drawing MSTR Flexi Loop accessory

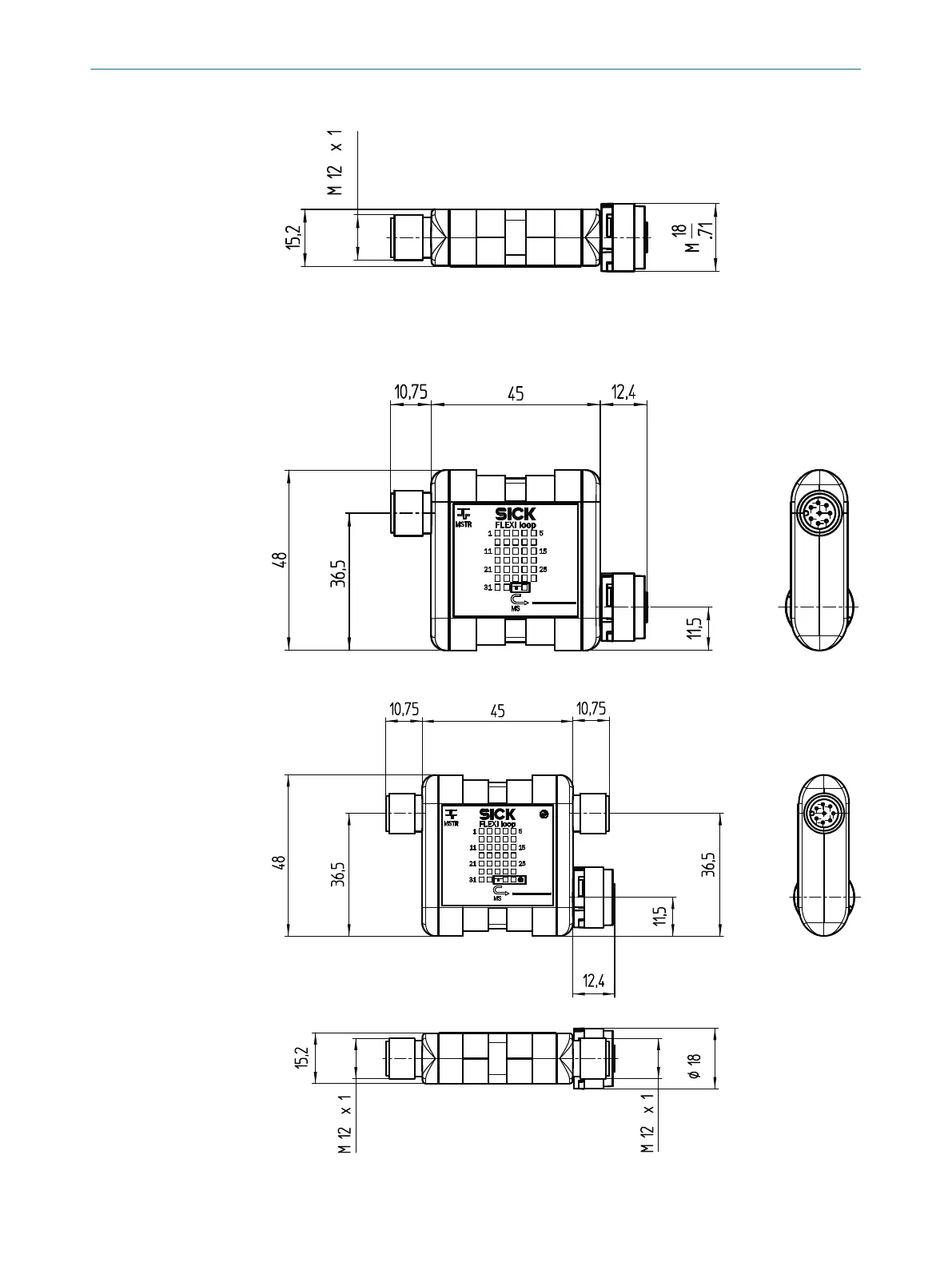

Figure 74: Dimensional drawing FLA-MSTR00001 Flexi Loop accessory (mm)
Figure 75: Dimensional drawing FLA-MSTR00002 Flexi Loop accessory (mm)
10 TEC
HNICAL DATA
90
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
