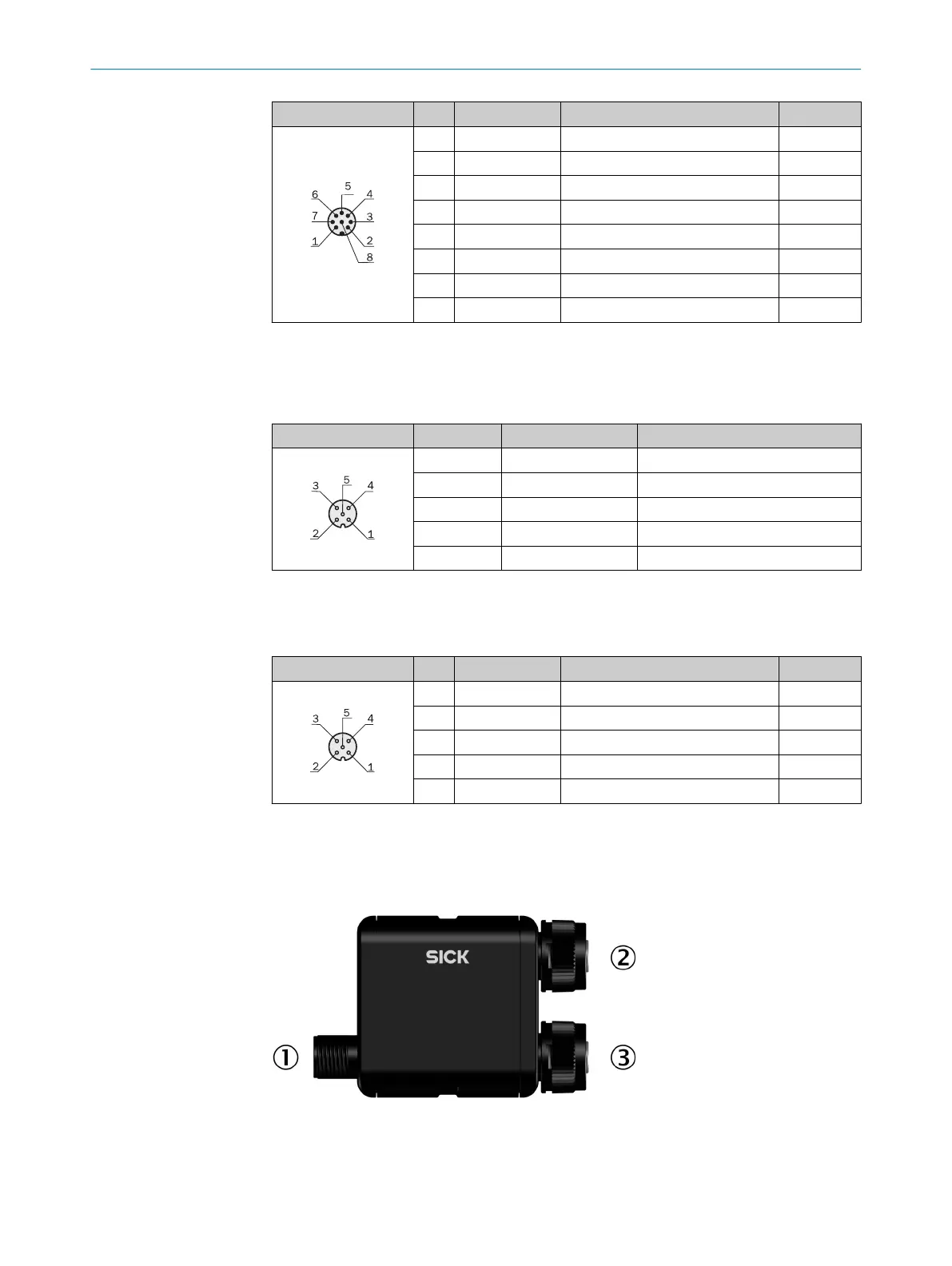

Male connector Pin Signal Meaning Color
1)
1 VDC 24 V supply voltage White
2 AUX_IN Non-safe input Brown
3 EMSS1_A Switching contact 1, connection A Green
4 EMSS1_B Switching contact 1, connection B Yellow
5 AUX_OUT Non-safe output Gray
6 GND GND supply voltage Pink
7 EMSS2_A Switching contact 2, connection A Blue
8 EMSS2_B Switching contact 2, connection B Red
Table 22: Pin assignment 8-pin EMSS (male connector)
1)
The colors listed apply when using pre-assembled cables (no guarantee).
5-pin AUX
Female connector Pin Signal Meaning
1 VDC 24 V supply voltage
2 AUX_IN Non-safe input
3 AUX_OUT Non-safe output
4 GND GND supply voltage
5 NC Not connected
Table 23: Pin assignment 5-pin AUX (female connector)
EMSS 5-pin
Female connector Pin Signal Meaning Color
1)
1 EMSS1_A Switching contact 1, connection A Brown
2 EMSS1_B Switching contact 1, connection B White
3 EMSS2_A Switching contact 2, connection A Blue
4 EMSS2_B Switching contact 2, connection B Black
5 EMSS2_A Switching contact 2, connection A Gray
Table 24: Pin assignment EMSS 5-pin (female connector)
1)
The stated colors apply on the usage of pre-assembled cables (should be checked).
6.2.13 Connections of the Flexi Loop YCON2 adapter
Figure 55: Connections of the Flexi Loop YCON2 adapter
1
8-pin OSSD
2
5-pin AUX
3
5-pin OSSD
6 ELECTRICAL INSTALLATION
52
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
