SICK Flexi Loop User Manual

8-pin OSSD
NOTE
Alw
ays use a connecting cable to connect the Flexi Loop YCON2 adapter to the Flexi
Loop OSSD8 node. Do not plug the male connector on the Flexi Loop adapter directly
into the female connector on the Flexi Loop node.

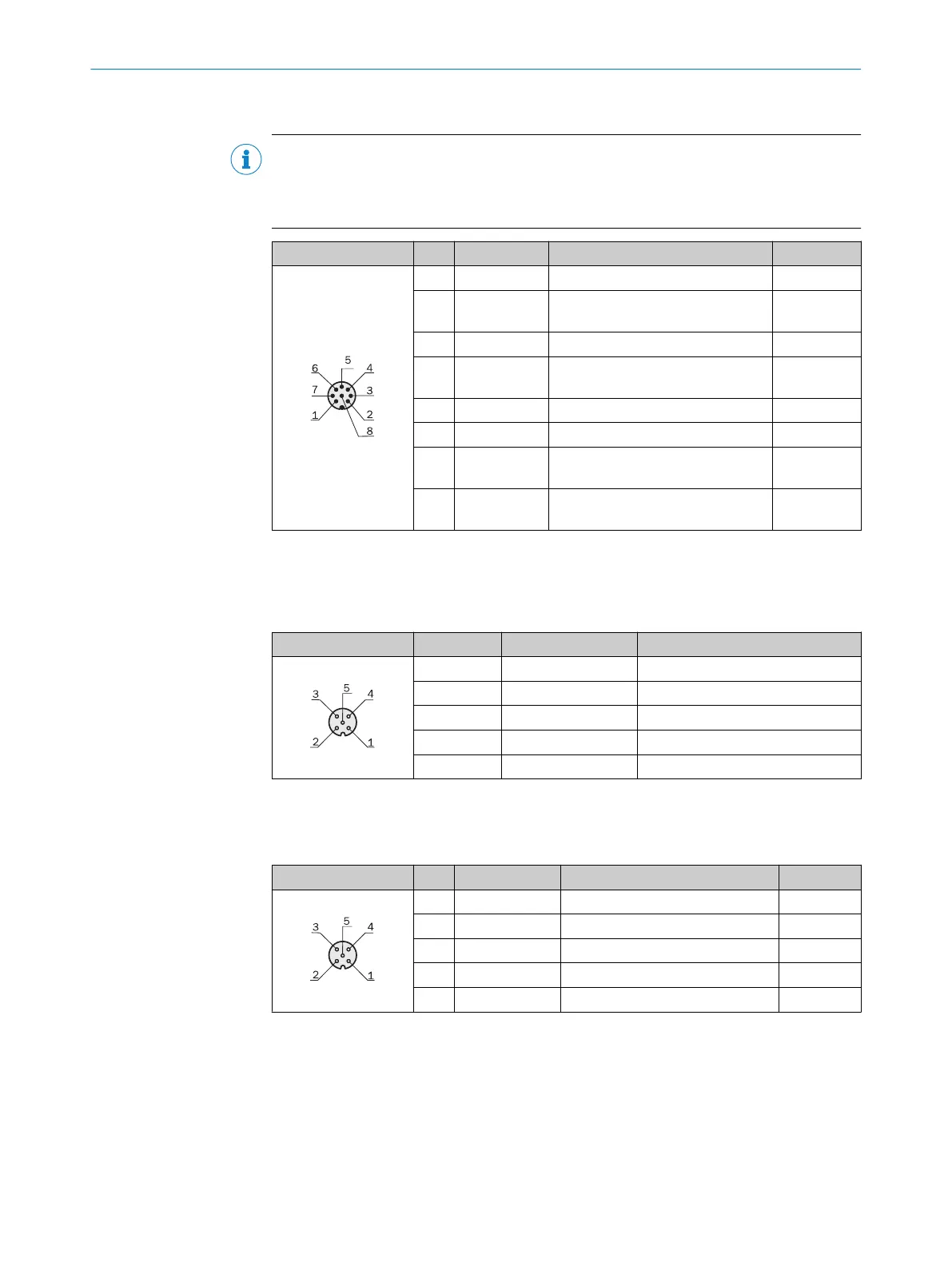

Male connector Pin Signal Meaning Color
1)
1 AUX_IN Non-safe input White
2 VDC 24 V supply voltage for safety
de
vice
Brown
3 AUX_OUT Non-safe output Green
4 VDC 24 V supply voltage for safety
de
vice
Yellow
5 OSSD1 Input OSSD1 Gray
6 OSSD2 Input OSSD2 Pink
7 GND GND supply voltage for safety
de
vice
Blue
8 VDC 24 V supply voltage for safety
device
Red
Table 25: Pin assignment 8-pin OSSD (male connector)
1)
The colors listed apply when using pre-assembled cables (no guarantee).
5-pin AUX
Female connector Pin Signal Meaning
1 VDC 24 V supply voltage
2 AUX_IN Non-safe input
3 AUX_OUT Non-safe output
4 GND GND supply voltage
5 NC Not connected
Table 26: Pin assignment 5-pin AUX (female connector)
EMSS 5-pin
Female connector Pin Signal Meaning Color
1)
1 EMSS1_A Switching contact 1, connection A Brown
2 EMSS1_B Switching contact 1, connection B White
3 EMSS2_A Switching contact 2, connection A Blue
4 EMSS2_B Switching contact 2, connection B Black
5 EMSS2_A Switching contact 2, connection A Gray
Table 27: Pin assignment EMSS 5-pin (female connector)
1)
The stated colors apply on the usage of pre-assembled cables (should be checked).
ELECTRICAL INSTALLATION 6
8015836/YT10/2016-05-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Loop
53
Subject to change without notice
