SICK Flexi Loop User Manual

OSSD 5-pin
Female connector Pin Signal Meaning Color
1)
1 VDC 24 V supply voltage for safety
de
vice
Brown
2 OSSD1 Input OSSD1 White
3 GND GND supply voltage
f
or safety device
Blue
4 OSSD2 Input OSSD2 Black
5 AUX_IN Non-safe input Gray

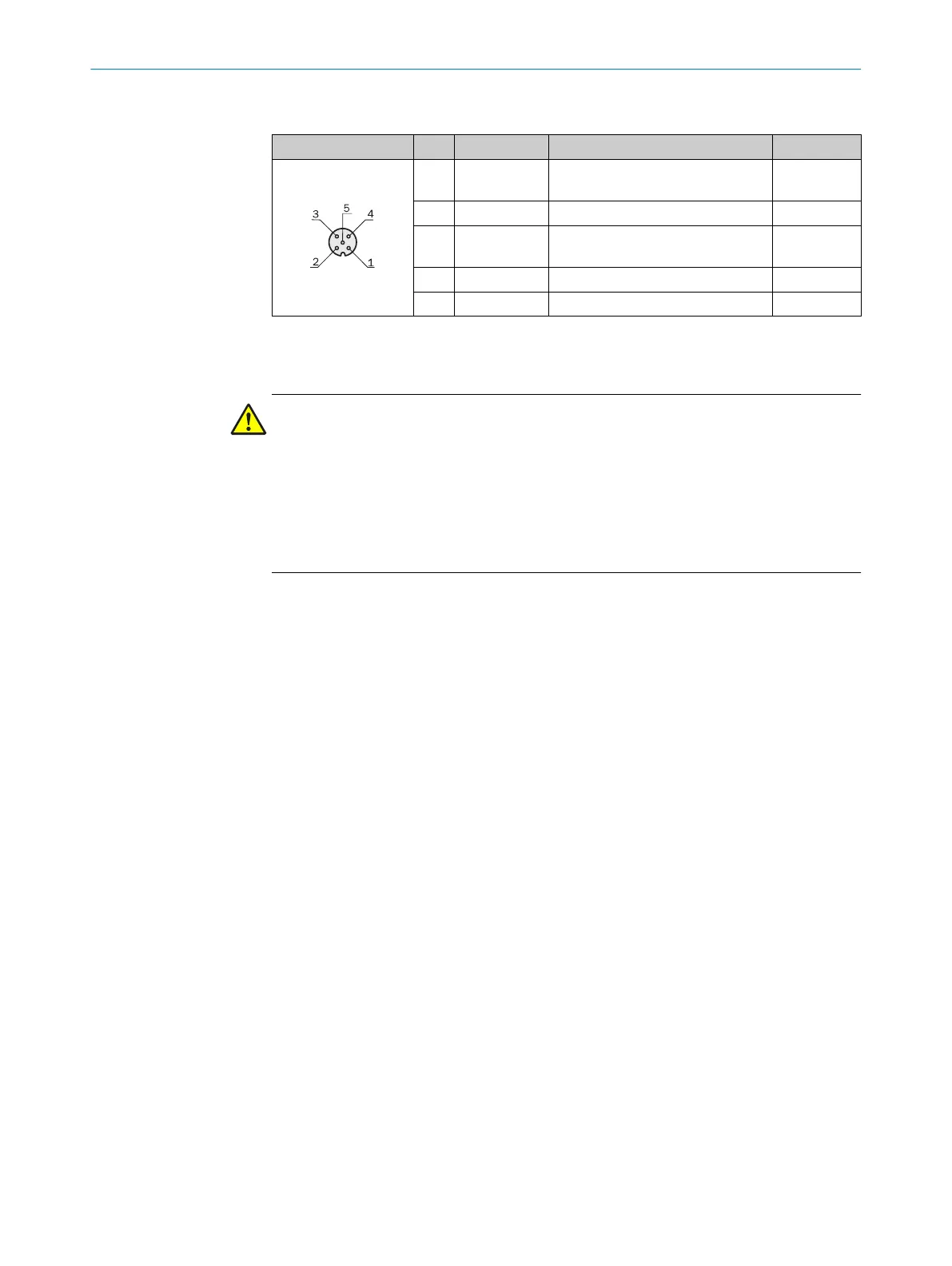

Table 28: Pin assignment OSSD 5-pin (female connector)
1)
The stated colors apply on the usage of pre-assembled cables (should be checked).
DANGER
Connect
ed OSSD devices should be supplied with power via the OSSD female connec‐
tor of the Flexi Loop YCON2 adapter.
Never use a separate power supply unit to supply power directly to a connected OSSD
device. If multiple power supply units are connected in parallel, the loss of the GND
connection can lead to overcurrent and cable fires.
The OSSD devices must always be connected to the same voltage supply as the Flexi
Loop node to which they are connected.
6 ELECTRIC
AL INSTALLATION
54
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
