SICK Flexi Loop User Manual

5 Installation and mounting
This chapter describes the preparation and completion of the mounting of the safe sen‐
sor cascade.
5.1 Scope of delivery
The following is included with delivery of the Flexi Loop node and the Flexi Loop acces‐
sor
ies:
•
Flexi Loop node or Flexi Loop accessory depending on order
•
general safety notes
5.2 Mounting in a cable channel
Due to its size, the Flexi Loop node can be mounted in a cable channel with a width
≥40 mm.

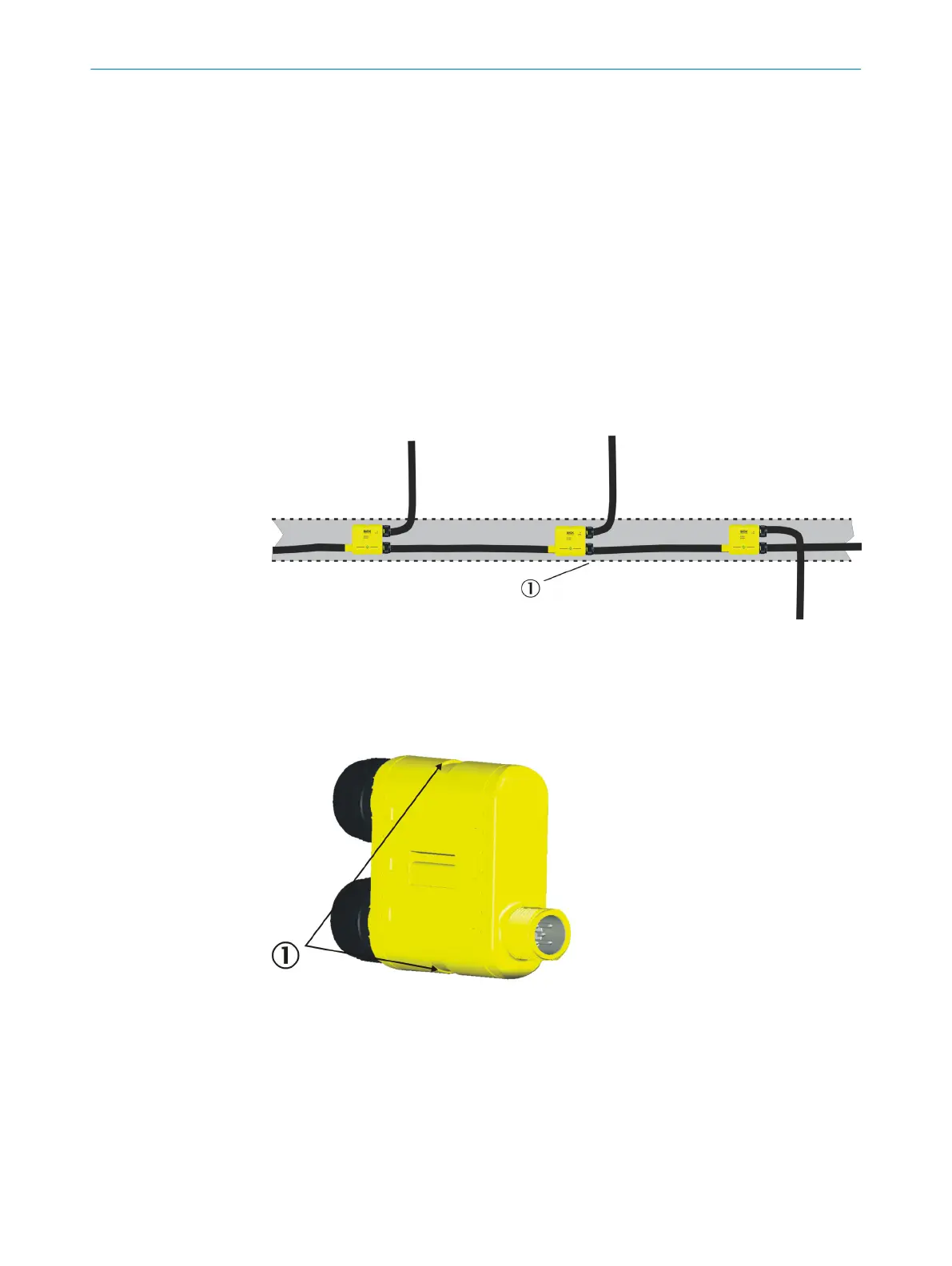

Figure 36: Mounting in a cable channel
1
Cable channel
5.3 Mounting with cable tie
Figure 37: Mounting with cable tie
1
Slot for cable tie
The Flexi Loop nodes have a slot on the top and bottom 1. These slo
ts are used for
mounting using a cable tie.
5.4 Mounting with C-Fix bracket
The Flexi Loop nodes can be installed with what is known as a C-Fix bracket.
5 INS
TALLATION AND MOUNTING
40
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
