9.3.3 LEDs of the OSSD Flexi Loop nodes

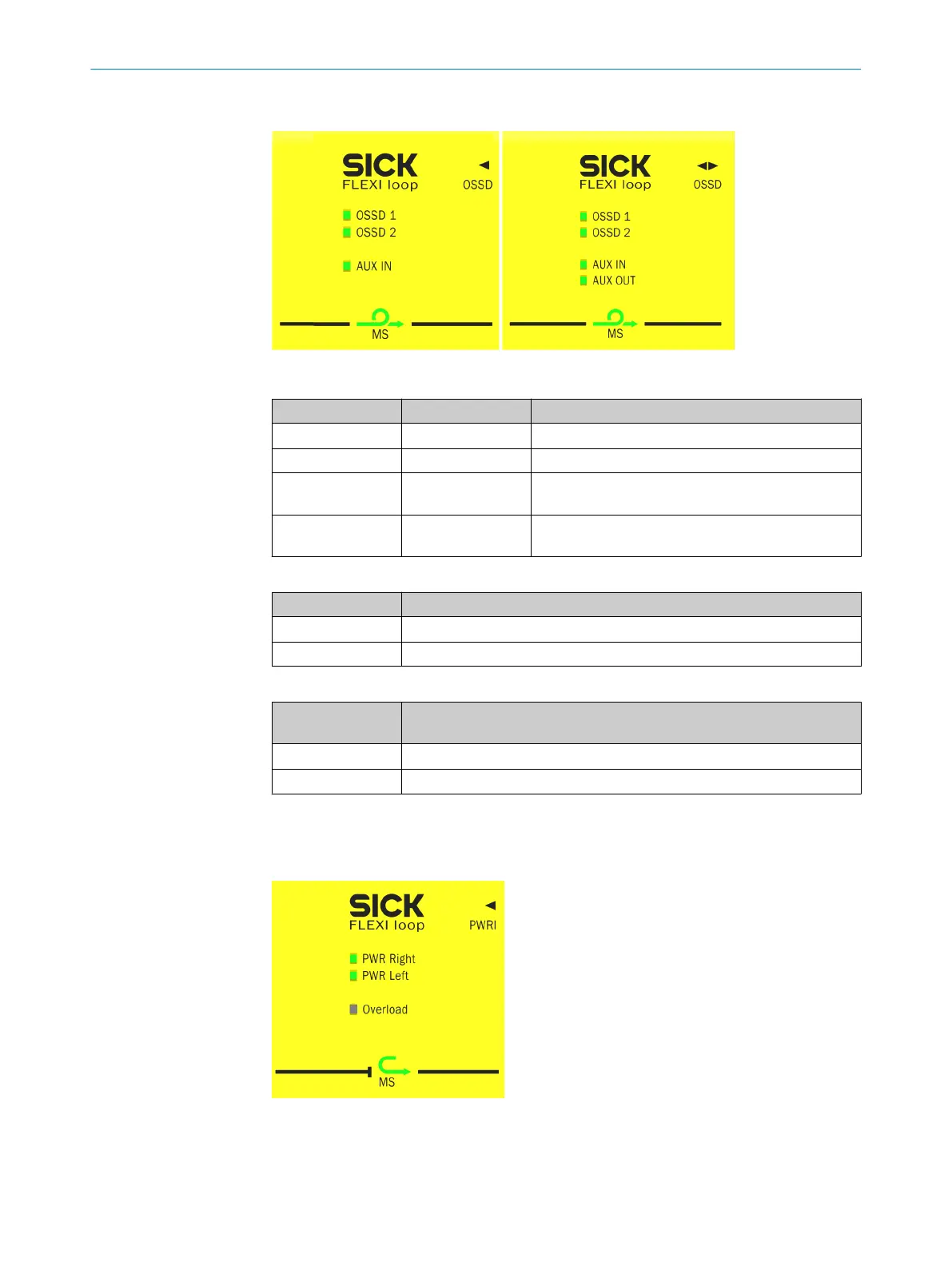

Figure 62: LEDs of the OSSD Flexi Loop nodes
OSSD1/2 MS Meaning
 Gr
een
– Connected OSSD in the ON state, no error

– Connected OSSD in the OFF state, no error
 Gr
een  Red
Discrepancy or sequence error, related connection is
high.
 Gr
een  Red
Discrepancy or sequence error, related connection is
lo
w.
Table 33: OSSD LEDs and MS LED of the OSSD Flexi Loop nodes
AUX_IN Meaning
 Gr
een
Non-safe input is active.

Non-safe input is inactive.
Table 34: AUX_IN LED of the OSSD Flexi Loop nodes
AUX_OUT (8-pin
v
ariant only)
Meaning
 Gr
een
Non-safe output is active.

Non-safe output is inactive.
Table 35: AUX_OUT LED of the OSSD Flexi Loop nodes
9.3.4 LEDs of the PWRI power supply accessory
Figure 63: LEDs of the PWRI power supply accessory
9 TROUBLESHOOTING
72
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
