FLN-EMSS1100108 — 8-pin

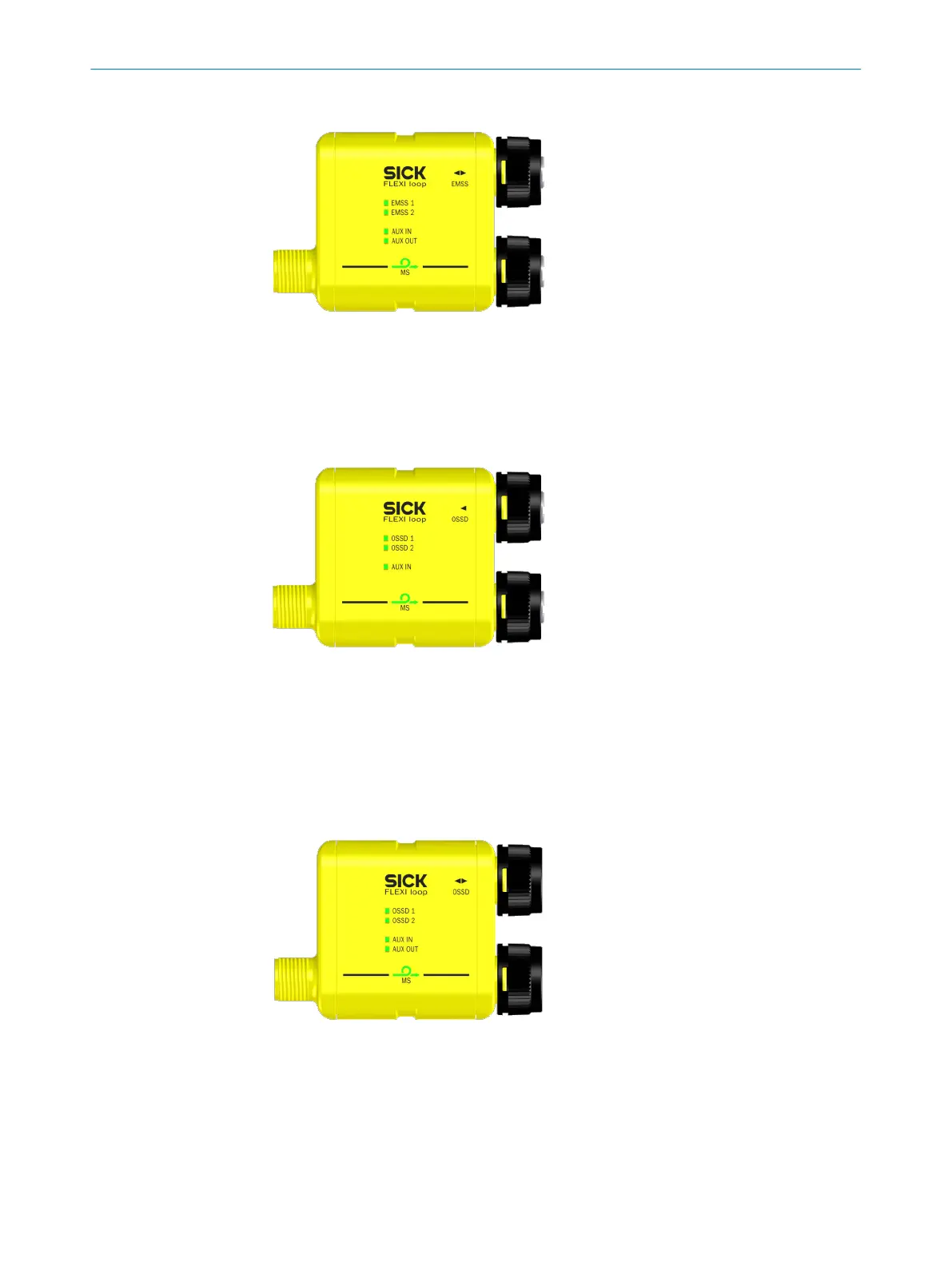

Figure 11: FLN-EMSS1100108 Flexi Loop node — 8-pin
The 8-pin Fle
xi Loop EMSS node has one more non-safe input and one more non-safe
output than the 5-pin Flexi Loop EMSS node. Control switches (e.g., pushbuttons) or
actuators (e.g., lamps or locks) can be connected here.
FLN-OSSD1000105 — 5-pin
Figure 12: FLN-OSSD1000105 Flexi Loop node — 5-pin
The 5-pin OSSD Fle
xi Loop node is suitable for connecting safety sensors with moni‐
tored semiconductor output (OSSD) (e.g. safety light curtains or transponder safety
switches). In addition it has a non-safe input. Signal outputs from the sensors (e.g. for
signaling contamination) can be connected to this input. The safety sensors connected
are tested for discrepancy and sequence errors.
FLN-OSSD1100108 — 8-pin
Figure 13: FLN-OSSD1100108 Flexi Loop node — 8-pin
The 8-pin Fle
xi Loop OSSD node has one more non-safe output than the 5-pin Flexi
Loop OSSD node. Sensor signal outputs (e.g., for weak signals) or LEDs (e.g., for reset
required) can be connected here.
PRODUCT DESCRIPTION 3
8015836/YT10/2016-05-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Loop
