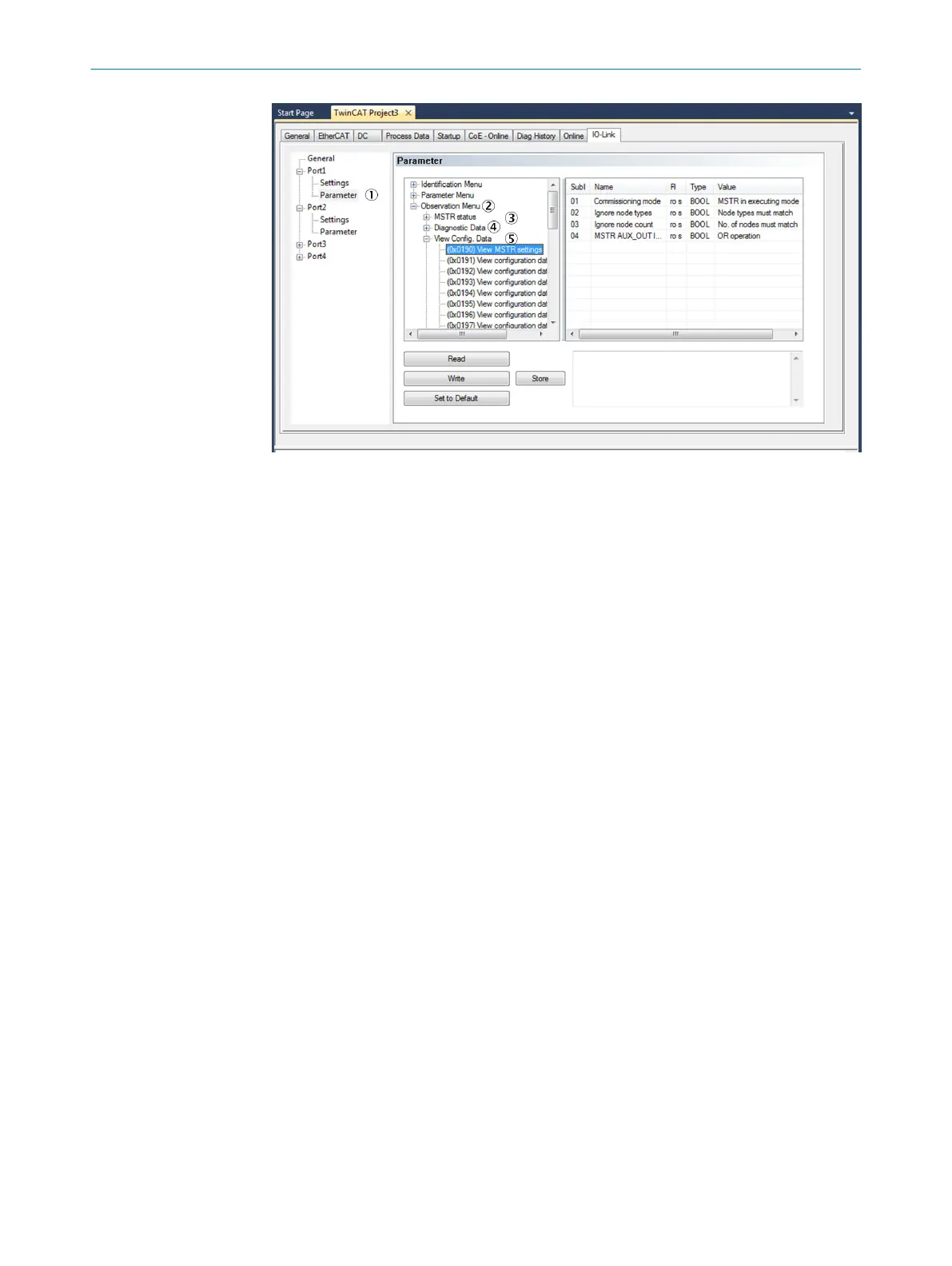

Figure 67: Observation Menu
1
Parameter
2
Observation Menu
3
MSTR status
4
Diagnostic Data
5
View Config. Data
Flexi Loop string
b
Open t
he MSTR Status branch.
✓
The Flexi Loop communication status branch indicates the status of the communica‐
tion in the safe sensor cascade.
°
The value is 0 if the safe sensor cascade communication is interrupted.
°
The value is 1 or 2 if the safe sensor cascade communication is initialized.
°
The value is 3 or 4 if the communication in the safe sensor cascade is run‐
ning.
°
The value is 6 if the safe sensor cascade is not terminated (missing termina‐
tor, open safe sensor cascade).
°
The value is 7 if there is a configuration error (e.g. incorrect number of nodes)
in the safe sensor cascade.
✓
The Total node count branch indicates the number of Flexi Loop nodes.
✓
The Safety controller status branch indicates whether the signal from the safety con‐
troller is detected.
°
The value is 0 if there is no supply voltage on FC_IN.
°
The value is 1 if a safety controller has not been found on FC_IN.
°
The value is 2 if a safety controller has been found on FC_IN and the compat‐
ibility test is in progress.
°
The value is 3 if a compatible safety controller has been found on FC_IN and
the safe sensor cascade is operational.
✓
The MSTR voltage branch indicates the voltage on FC_IN.
Diagnostics information
b
Open the Diagnostic Data branch.
✓
The branch indicates the currently valid status of the diagnostics data:
°
state of the cut-off path
°
dynamic errors
9 TR
OUBLESHOOTING
78
O P E R A T I N G I N S T R U C T I O N S | Flexi Loop 8015836/YT10/2016-05-24 | SICK
Subject to change without notice
