MAINTENANCE
Switch the filter box on; the warming up phase takes about 2.5 hours.
Switch on the zero gas pump or connect a different zero gas.
Switch all chamber valves to “Zero gas” and switch the Measuring/Purging valve to
“Purging”.
On the EvU:
After about 3 minutes, select menu Box measuring in menu cal (cal button), then option
gas”.
Enter password “1 2 3 4”.
The measuring device carries out a zero adjust and then switches to operating mode
Box measuring”.

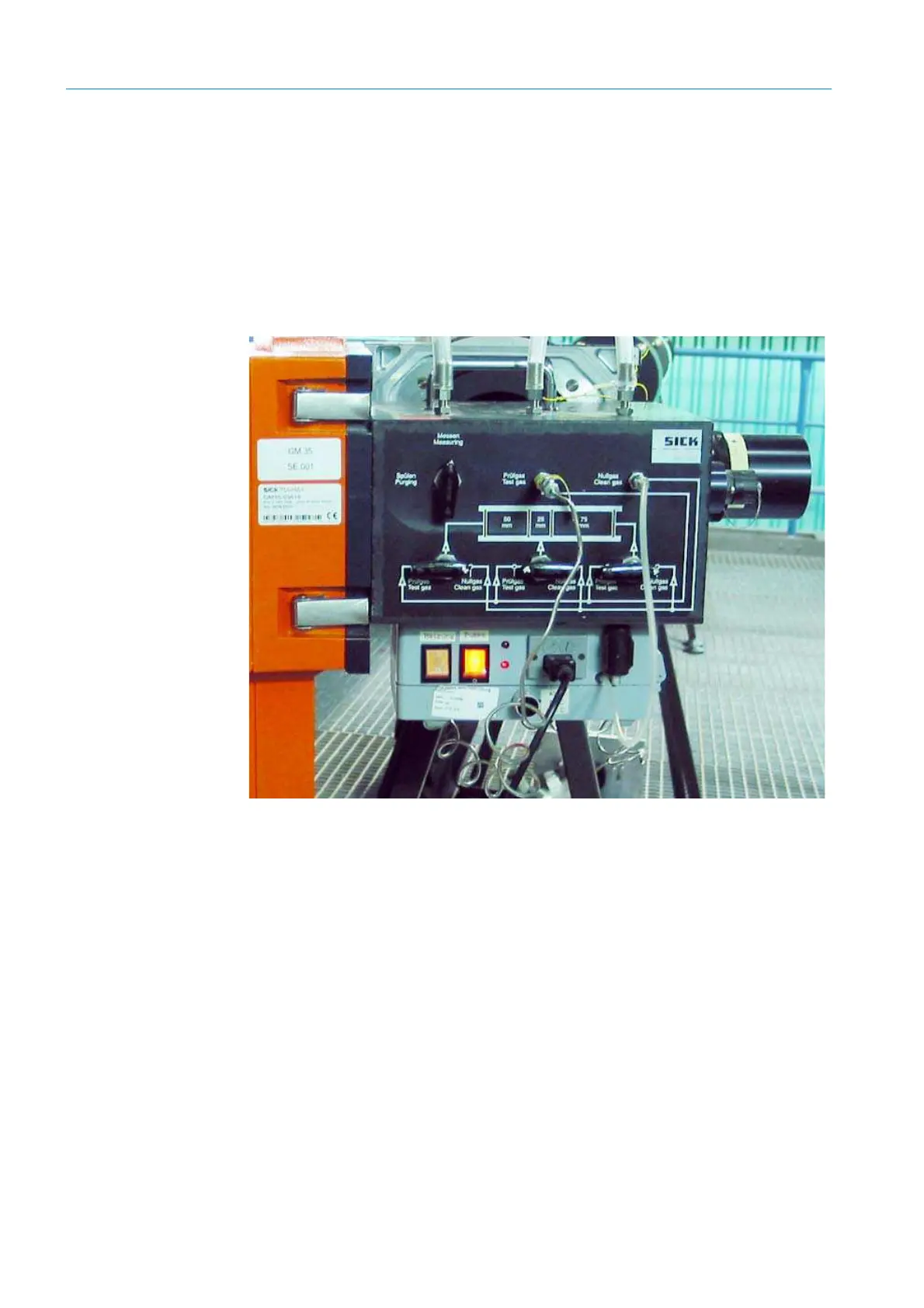

Fig. 72: Control elements on the filter box
Connect test gas; set the primary pressure to approx. 1000 hPa (1 bar).
Note the diameters of the individual chambers/chamber combinations in the filter box
and the concentration values;
see “Determining the necessary test gas concentration”,
page 98
.
When doing so, set the valves for the relevant filter chambers to “Test gas”.
Switch the Measuring/Purging valve to “Purging” for 2 to 3 minutes (until the
measured value has stabilized) and then to “Measuring”.
The overpressure from the purge phase now dissipates.
When the measured value has stabilized again, read off and note the value.
8.6.3 Restart Measuring mode
Purge the filter box with zero gas
On the EvU:
Exit operating mode “Box measuring” by pressing back.
Disassemble the filter box with plate and reflector from the SR-unit and store safely
Refit the SR-unit back onto the measuring point in the correct position.
