8009441/YN36/V3-0/2015-08| SICK OPERATING INSTRUCTIONS|GM35
Subject to change without notice
TECHNICAL DATA, CONSUMABLES AND SPARE PARTS
10.3.3 Spare parts for the reflector unit
Table 9: Spare parts for the reflector unit
10.3.4 Spare parts for purge air fixture – SR side

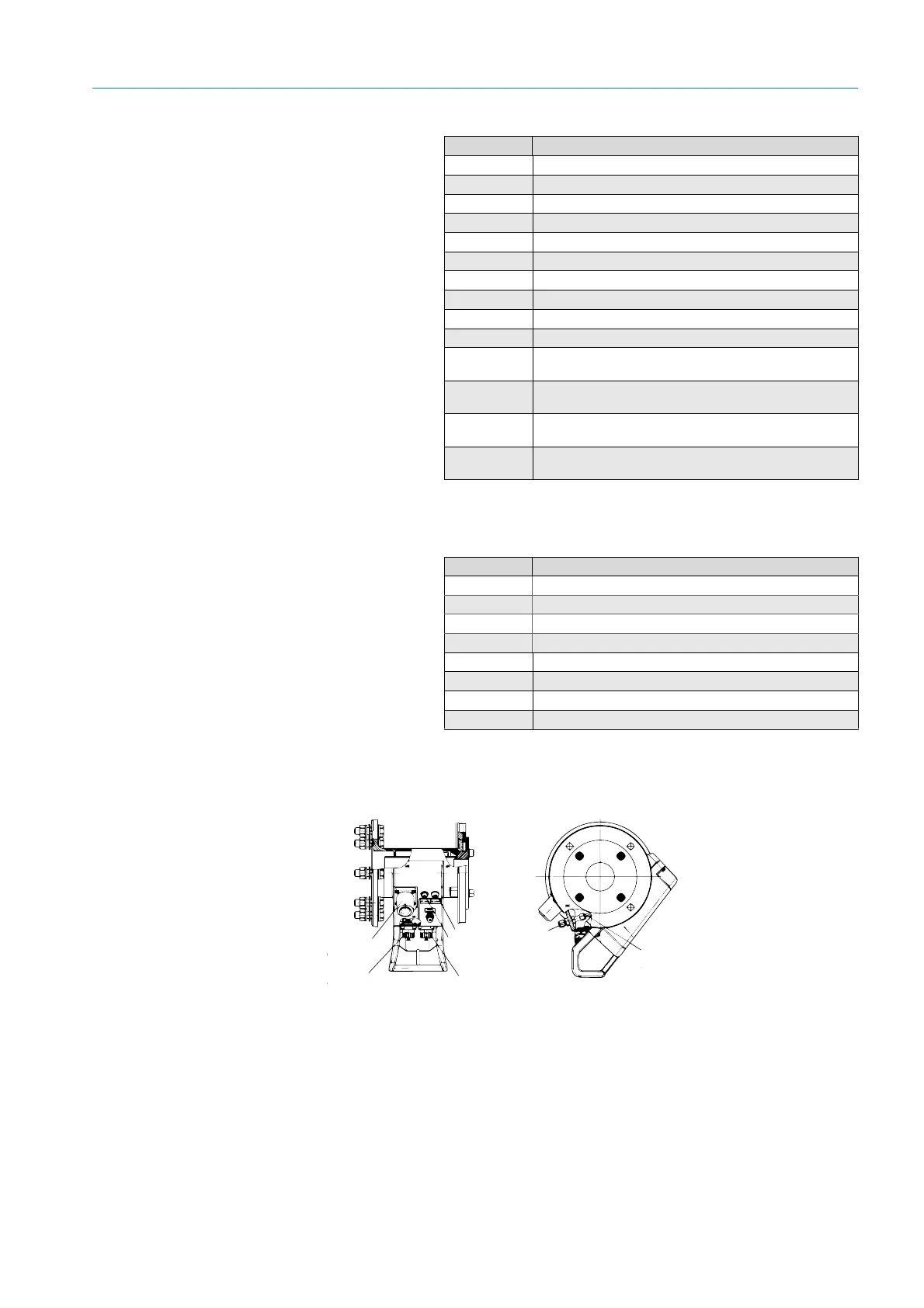

Fig. 88: Position of spare parts for the purge air fixture, SR side
2020432 CAN connection, SR-unit, socket
2024027 Cable harness
2023799 Temperature sensor, heating control, SR enclosure
2029931 Pressure equalization element (SR-unit)
2023687 CAN connection cable, 4 m in length
2023688 Power cable, SR-unit or reflector 3 x 1.5, 4 m
2023 704 CAN bus cable, reflector – SR-unit 3 x 2 x 0.74, 0.6 m
2 027404 Transport protection
2040863 Spare parts set, filter wheel housing with motor and lens H
2
O
2032125 Spare parts set, cell wheel housing with motor and lens CO, N
2
O
2031569 Spare parts set, automatic beam tracking R1090 FD4M5–7M5,
4.5…7.5 m
2031570 Spare parts set, automatic beam tracking R1000 FD2M3–4M0,
2.3…4.0 m
2031571 Spare parts set, automatic beam tracking R960 FD1M5–2M3,
1.5…2.3 m
2031572 Spare parts set, automatic beam tracking R878 FD0M5–1M5,
0.7…1.5 m
Part No. Spare part
Part No. Spare part
2032759 Hollow triple, lens, seal; 0.9 m
2032760 Hollow triple, lens, seal; 1.5 m
2032761 Hollow triple, lens, seal; 2.0 m
2032762 Hollow triple, lens, seal; 2.5 m
2032763 Triple R520, Suprasil 300; 0.9 m
2032 64 Triple R878, Suprasil 300; 1.5 m
2032765 Triple R1090, Suprasil 300; 2.0 m
2032766 Triple R1250, Suprasil 300; 2.5 m
1
2
3
4
5
6
7
8
