8009441/YN36/V3-0/2015-08| SICK OPERATING INSTRUCTIONS|GM35
Subject to change without notice
PROJECT PLANNING INFORMATION
3.3.3 Installing the flanges with tube
• Standard flanges
SICK delivers two flanges with tube with 240 mm total length and 125 mm inner
diameter as standard. A version with 500 mm total length is available for installation
locations with thicker insulation or for stone stacks. Special versions can be
manufactured on request. Onsite flanges, including ANSI flanges, can also be used.

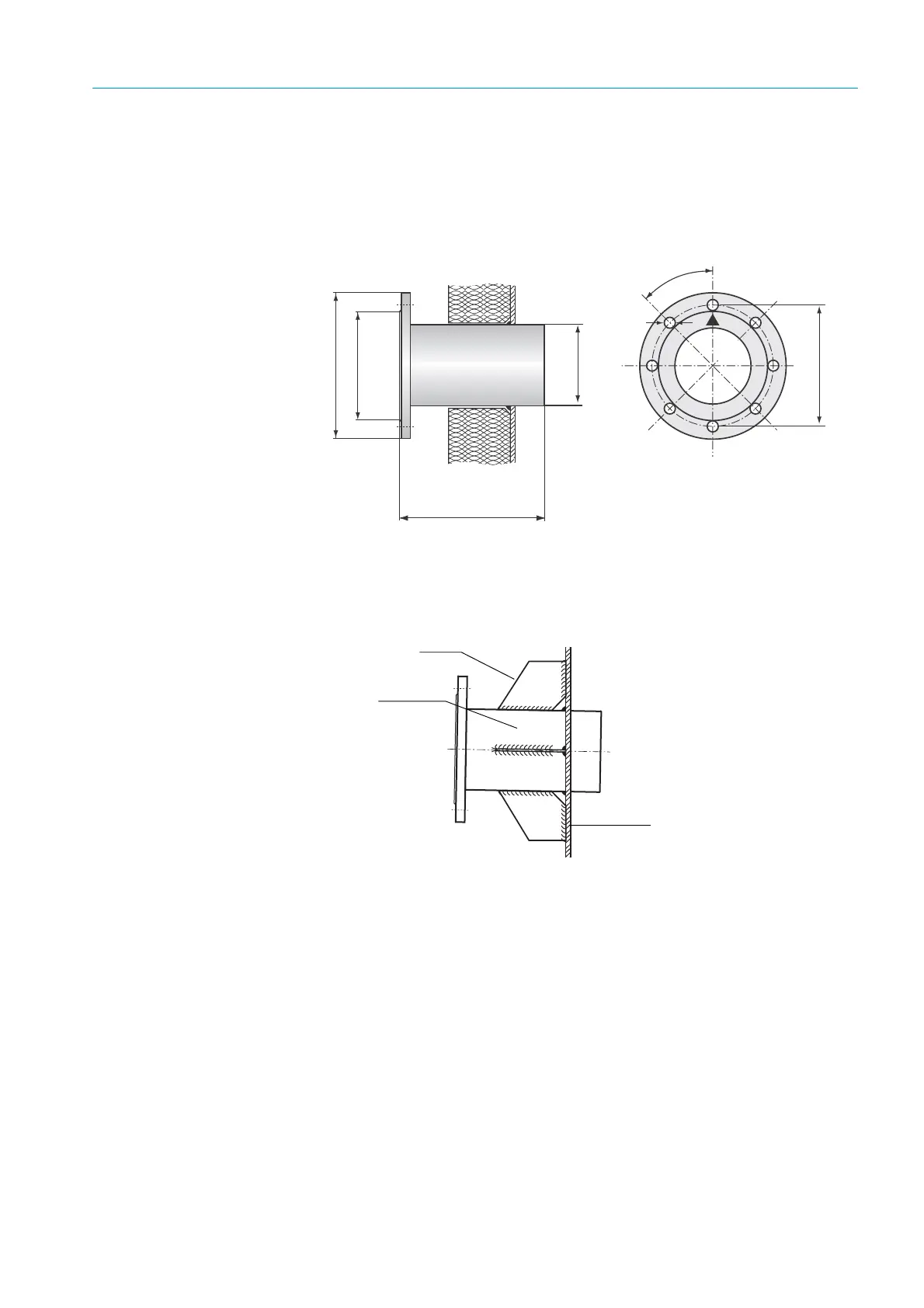

Fig. 7: Standard flange with tube
• Reinforcement with junction plates recommended
Due to the weight of the sender/receiver unit, it is recommended to reinforce the flange
tube onsite with junction plates.
Fig. 8: Reinforcing with junction plates
• Gas-carrying duct made of stone/concrete
An additional retaining plate with suitable opening can be manufactured for ducts not
made of steel and in which the flange with tube can be welded.
o
Duct wall (steel)
Reinforcing sheets (onsite)
Flange with tube
