8009441/YN36/V3-0/2015-08| SICK OPERATING INSTRUCTIONS|GM35
Subject to change without notice
HANDLING THE EVALUATION UNIT

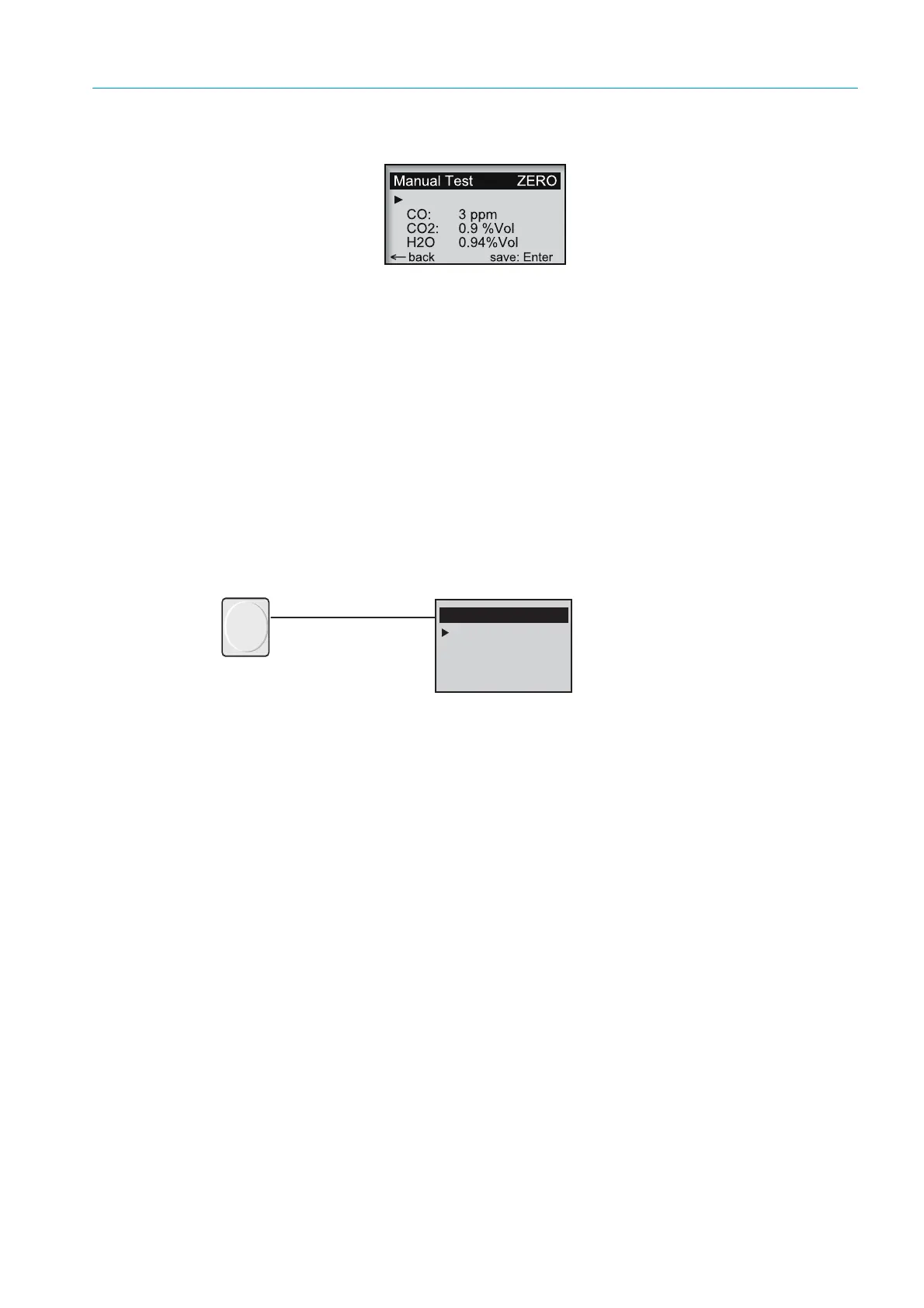

5.2.2 Display contents
• The header line shows the selected operating mode (e.g. parameter settings) or the
menu items just selected during navigation.
• Four lines for submenus, plain-text messages or settings (values)
• Function line:
← back: To return to a higher level menu, use the Arrow
← button
save: EnterTo activate menu items or confirm entries, use the Enter button
select: To select a value, use the Enter button
↑ (↓) When selecting a variable for which a number is to be entered,
use the Arrow ↑ (↓) buttons to select the value for each digit
Password: When prompted for the password, enter 1 2 3 4 with ↑ (↓).
5.2.3 Menu structure
5.2.3.1 Menu structure Measuring Mode
Fig. 25: Menu Operation
Zero gas
Measuring
meas
ppm
2875
Measuring
CO
CO2
H2O
Ref. conditions
Hum: wet
