103
8009441/YN36/V3-0/2015-08| SICK OPERATING INSTRUCTIONS|GM35
Subject to change without notice
MAINTENANCE
Insert the push rod for filter selection completely; at the same time, make sure the filter
is swiveled out.
On the EvU:
Select filter box mode “Grid”
Enter the password “1 2 3 4” and wait for scaling to complete.
Measurement can start as soon as the display shows the extinction values for H
2
O and
CO
2
.
Select the different positions of the push rod sequentially and swivel the appropriate
filter in
When the measured value has stabilized again, read off and note the value.

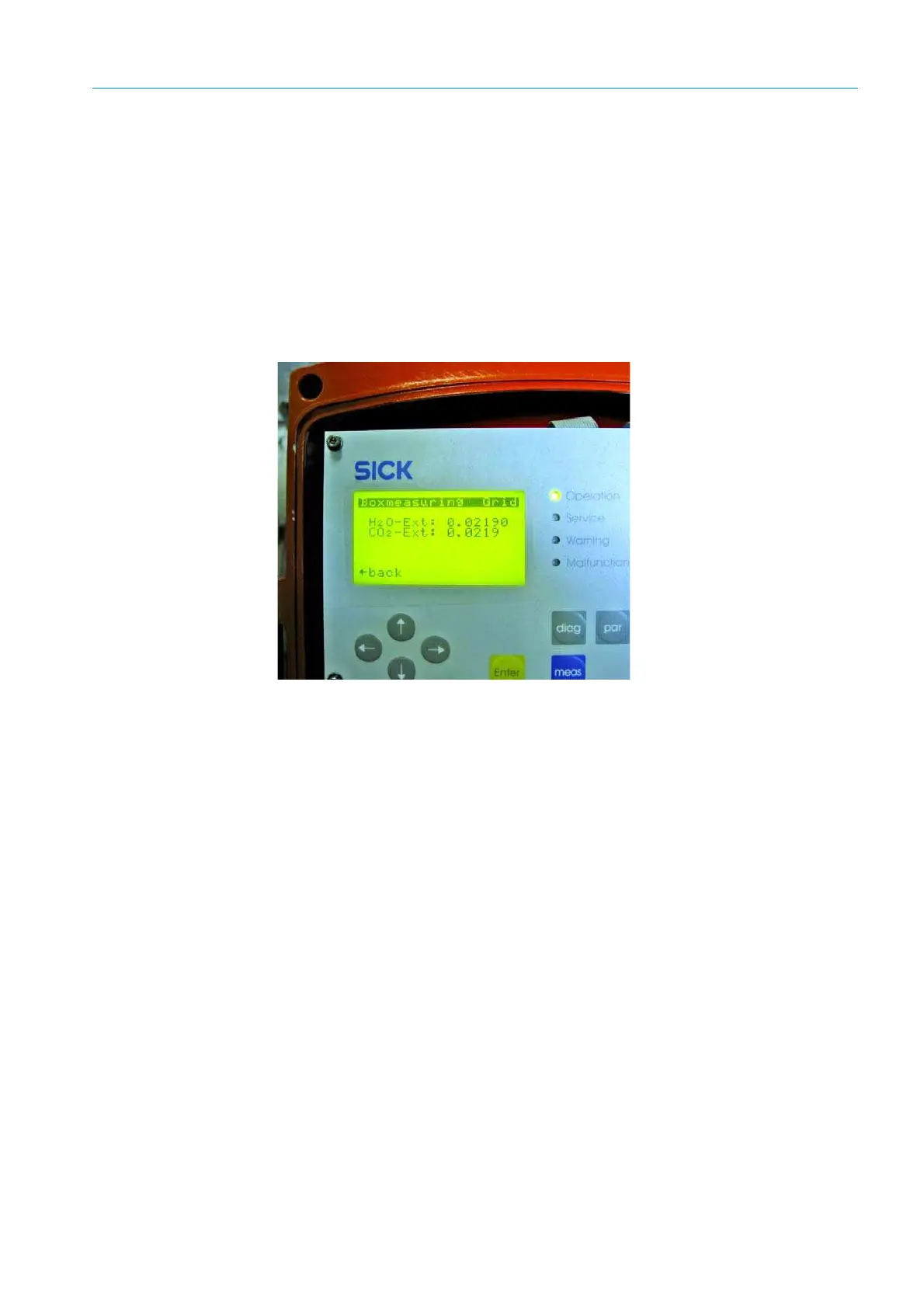

Fig. 74: Measured value display on the EvU
8.7.3 Restart Measuring mode
On the EvU:
Exit operating mode “Box measuring” by pressing back.
Disassemble the filter box with plate and reflector from the SR-unit and store safely.
Refit the SR-unit back onto the measuring point in the correct position.
