TROUBLESHOOTING AND CLEARING MALFUNCTIONS
9.3 Integrated monitoring and diagnosis system
The GM35 is equipped with an integrated system that constantly monitors the operating
state of the SR-unit and evaluation unit. Appropriate messages are generated and logged
in the devices for subsequent evaluation should any deviations from normal operating
states occur.
Messages for the two system components are categorized into error messages and
warning messages depending on the anticipated effects:
• Warning messages are generated if the measurement results are not (yet) directly
affected by the change in the system state. Nevertheless, it is important that the cause(s)
be investigated and corrected, e.g. by means of maintenance measures, to avoid further
malfunctions and damage to the device in particular.
• Error messages are generated when measuring operation is no longer possible or no
longer reliable.
These warning and error messages are stored in the integrated message memory of the
evaluation unit.

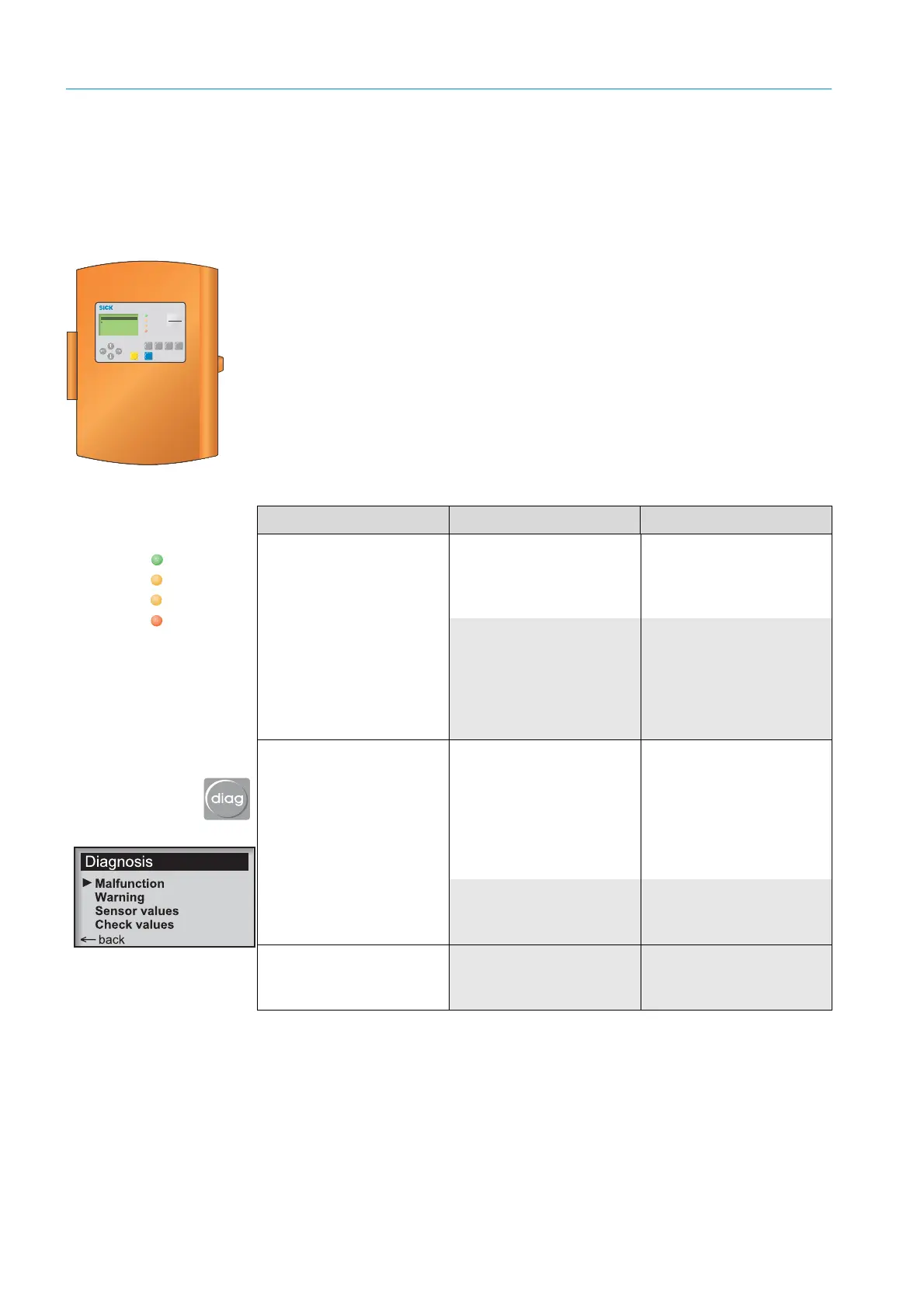

Message signaling and retrieval on the evaluation unit
* The relay is active during normal operation (no malfunction), i.e. the contact is closed.
Procedure
Troubleshooting Table If a warning or malfunction is signaled, first call up pending error messages in the Error
menu. Then localize the possible cause and clear the malfunction; see Troubleshooting
Table.
maintcalpardiag
GM 35
Evaluation Unit
CO
CO
2
H
2
O
mg/
m
3
236
Ref. conditions
Hum: wet
Measuring
Operation
Service
Warnin
Malfunction
Component/Tool Signal Remark
Front panel
Evaluation unit
Warning LED goes on Functional impairment on
system that will not directly
lead to corrupt measured
values.
Malfunction LED blinks Functional impairment on
system that can lead to
system failure or restricted
function.
Diagnosis mode Error memory ▸ Call up menu Error Plain-text message(s) for
errors that have occurred
to localize and clear the
problem.
See “Troubleshooting
Table”.
Warning memory
▸ Call up menu Warning Plain-text message(s) for
pending warnings
Output
for serious problems (mal-
function, error message)
Relay 1 inactive* Group malfunction
Operation
Service
Warning
Malfunction
