CONNECTING THE SYSTEM CONTROL UNIT - SCU
Analog inputs (Menu GM35/Parameter/Analog Input)

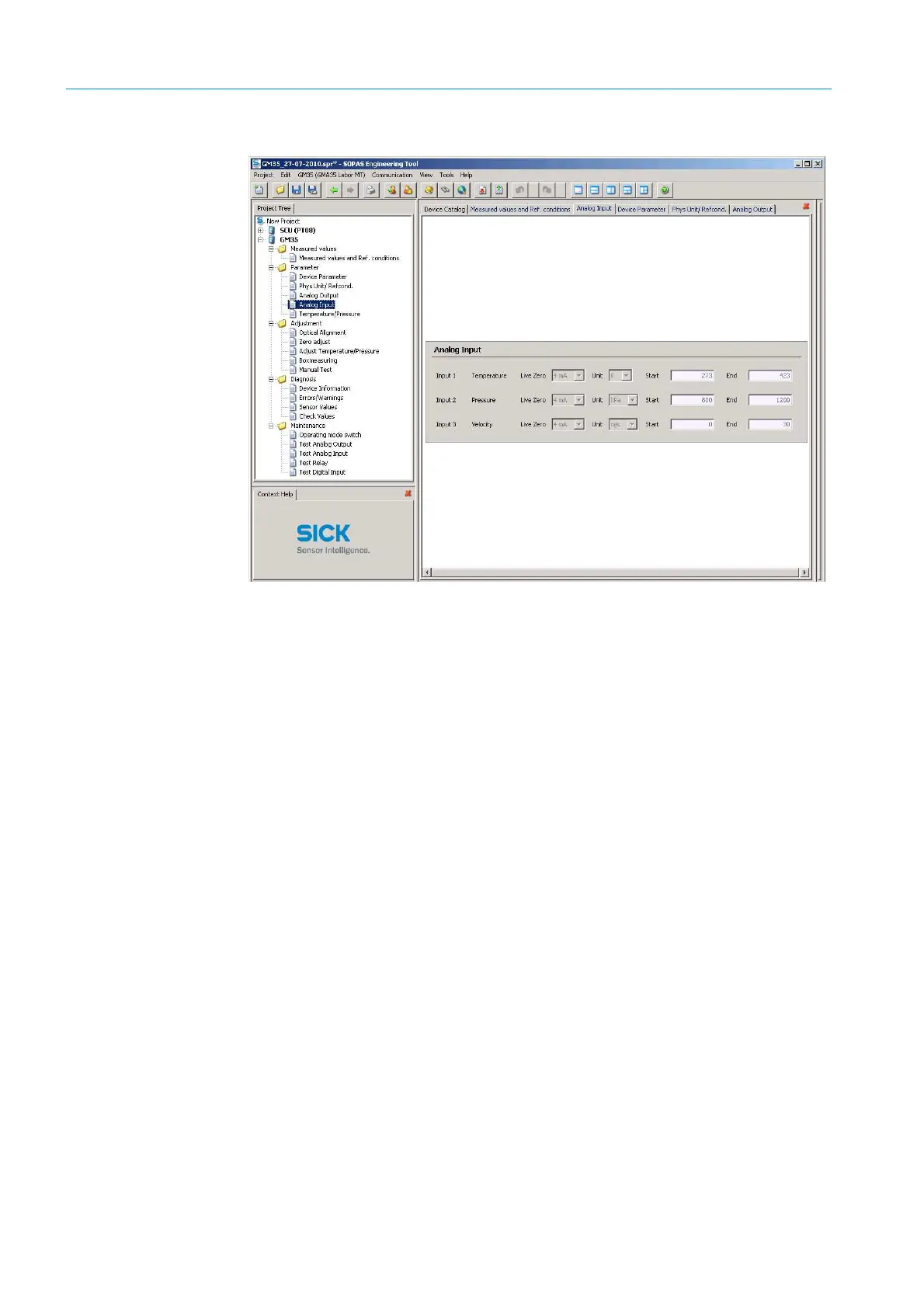

Fig. 35: Menu: Analog Input
This menu serves to set the following for 3 analog inputs:
• Analog input 1: Temperature: Live Zero (0, 2, 4 mA), unit assignment (K, °C, °F), start
and end values for the read-in range.
• Analog input 2: Pressure: Live Zero (0, 2, 4 mA), unit assignment (hPa), start and end
values for the read-in range.
• Analog input 3: Unused.
