Siemens SIMATIC ET 200M Manual

Wiring
5-18
Distributed I/O Device ET 200M
EWA-4NEB780600602-06
Preparing the Connector for Wiring
To prepare for wiring, proceed as follows:
!
Warning
Accidental contact with live conductors is possible, if the power supply module and
any additional load power supplies are switched on.
Make sure the ET 200M is de-energized before doing any wiring!
1. Open the front door.
2. Put the front connector in the wiring position.
To do this, push the front connector into the signal module until it snaps into
place. The front connector still protrudes from the module in this position.
An advantage of the wiring position is that it makes wiring easier; in the wiring
position a wired front connector has no contact with the module.

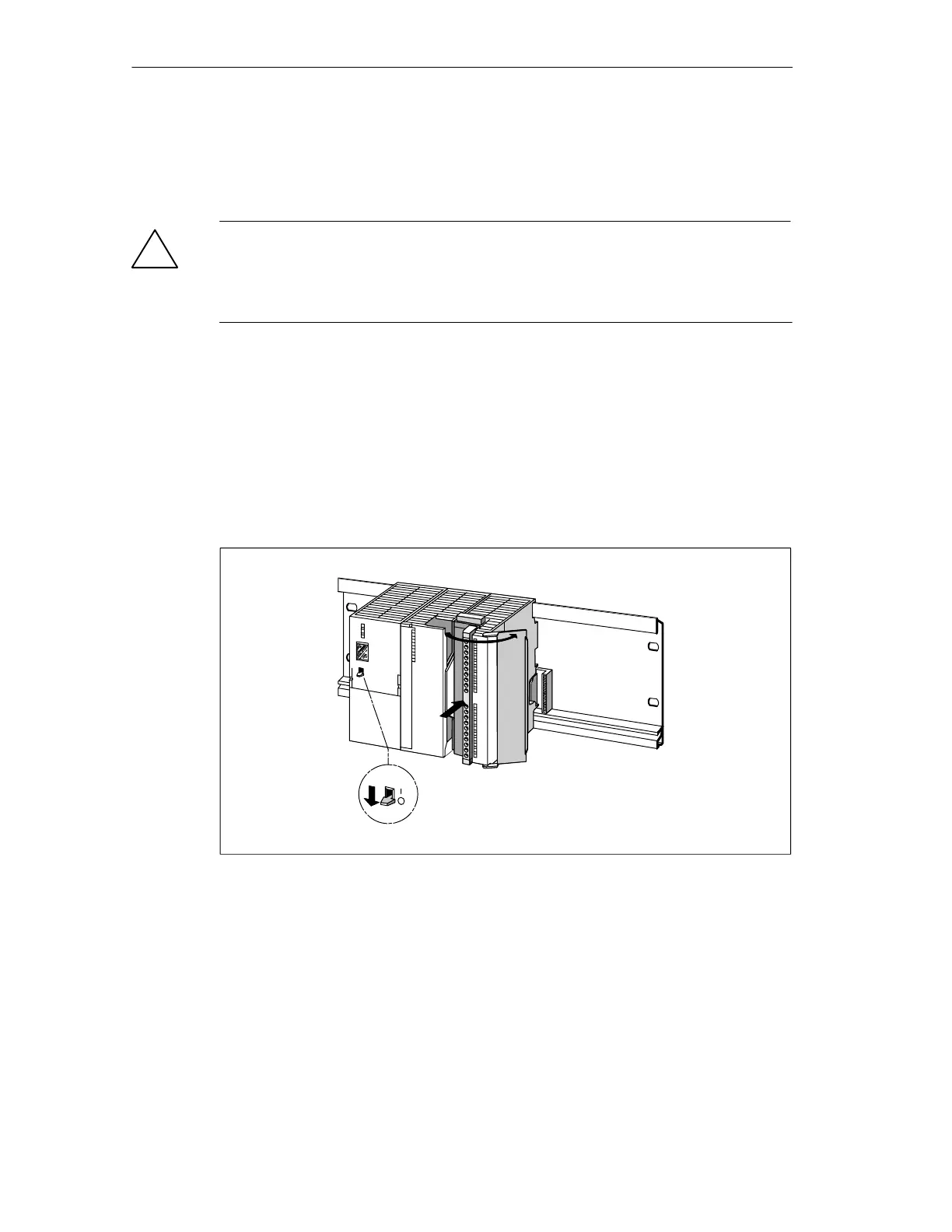

Figure 5-7 shows you how to get the front connector into wiring position.
ET–0049
2
1
Figure 5-7 Bringing the front connector into the wiring position
3. Strip the insulation off the cables (see Table 5-3 on page 5-14)
4. Do you want to use end ferrules?
If so: Press the end ferrules and the cables together
