Getting Started
2-9
Distributed I/O Device ET 200M
EWA-4NEB780600602-06
5. Set the following parameters:
– in the DP slave properties dialog box for ET 200M,
accept the default settings
– in the DP slave properties dialog box for SM 321, slot 4 in the configuration
table
Diagnostics: No load voltage yes
Diagnostic alarm: yes
– in the DP slave properties dialog box for SM 322, slot 5 in the
configuration table (see Figure 2-5)

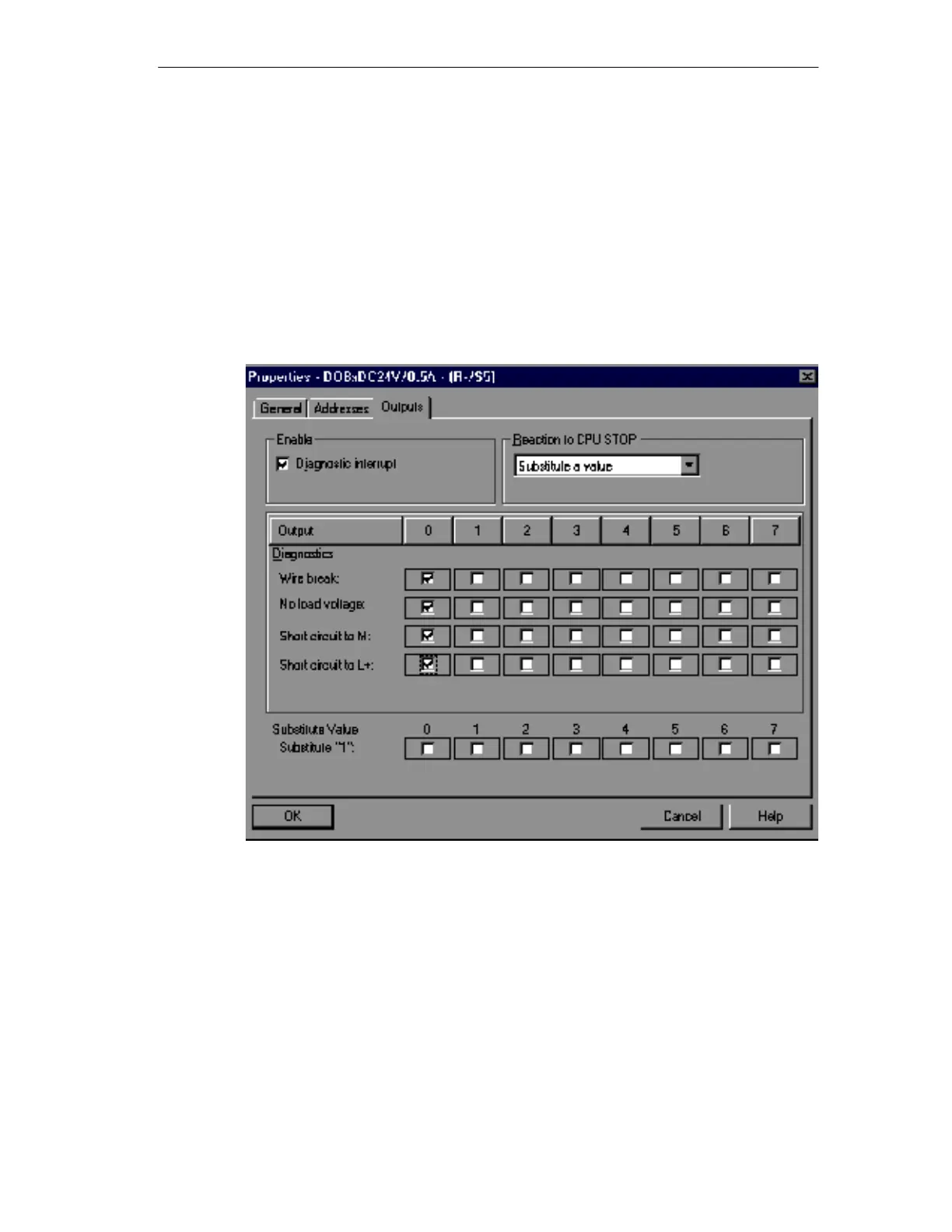

Figure 2-5 DP slave properties dialog box for SM 322
6. Save and compile the configuration.
7. Load the configuration into the CPU 315-2 DP.
