Siemens SIMATIC ET 200M

Installation
4-16
Distributed I/O Device ET 200M
EWA-4NEB780600602-06
Applying Slot Numbers

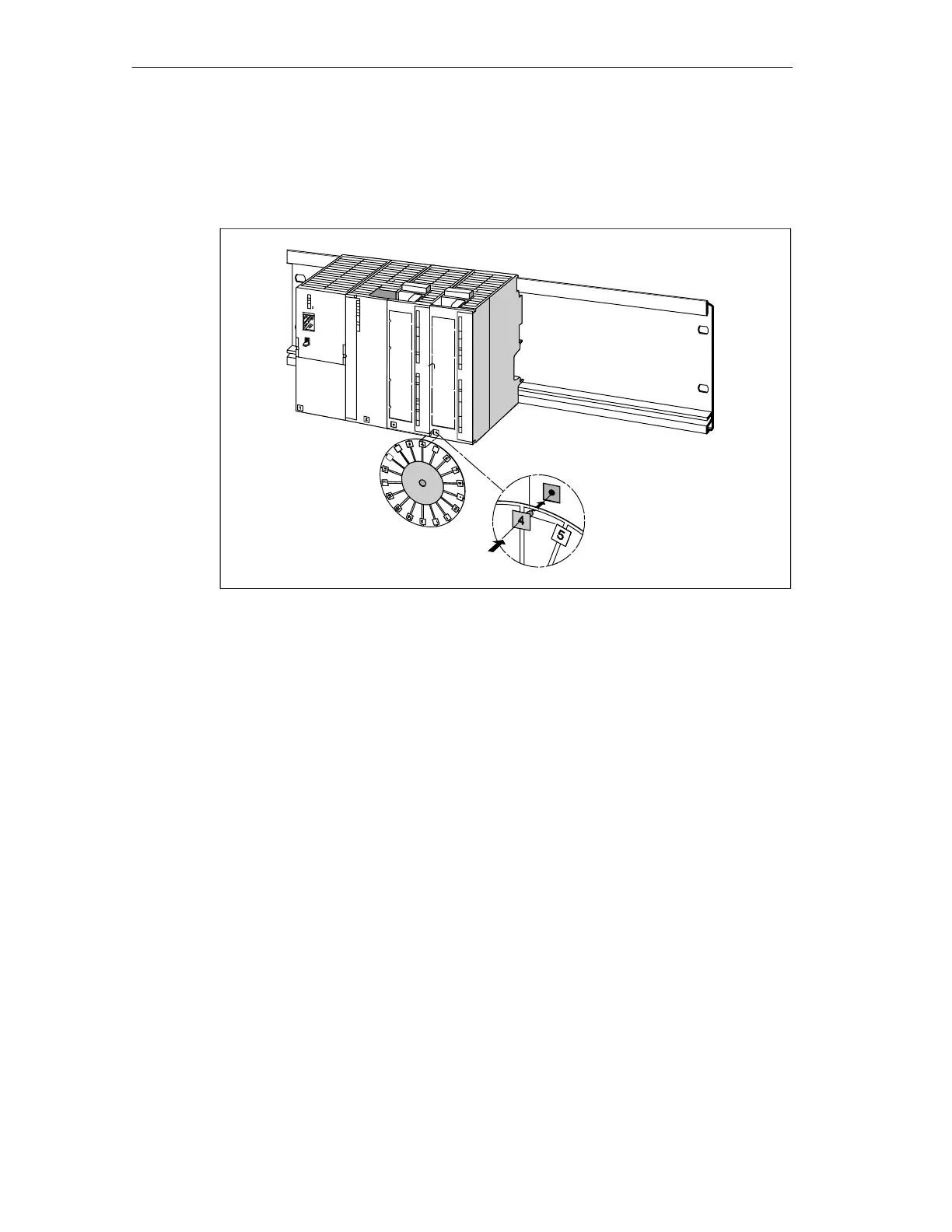

Figure 4-7 shows you how to apply the slot numbers. The slot number labels are
included with the IM 153-x.
ET–0046
1
2
Figure 4-7 Applying slot numbers to the modules
