Configuration Options with the ET 200M
3-25
Distributed I/O Device ET 200M
EWA-4NEB780600602-06
3.9 Fiber-Optic Network with the IM 153-2 FO
In this section we show you a sample configuration of a fiber-optic network without
considering the function performed by the IM 153-2 FO.
Sample Configuration
Figure 3-10 shows an example of how a fiber-optic network is configured with the
ET 200M and the IM 153-2 FO as the slave interface.
Note the following points when using a fiber-optic network with nodes with
integrated fiber-optic interfaces:
The fiber-optic network can be set up as a line or star-type configuration.
If you remove the fiber-optic cable from an integrated fiber-optic interface, the
following nodes will also no longer be accessible:
ET 200M
distributed I/O device with the IM 153-2
S7-400H programmable controller
with the IM 467 FO as DP master
Fiber-optic duplex cable
Fiber-optic duplex cable

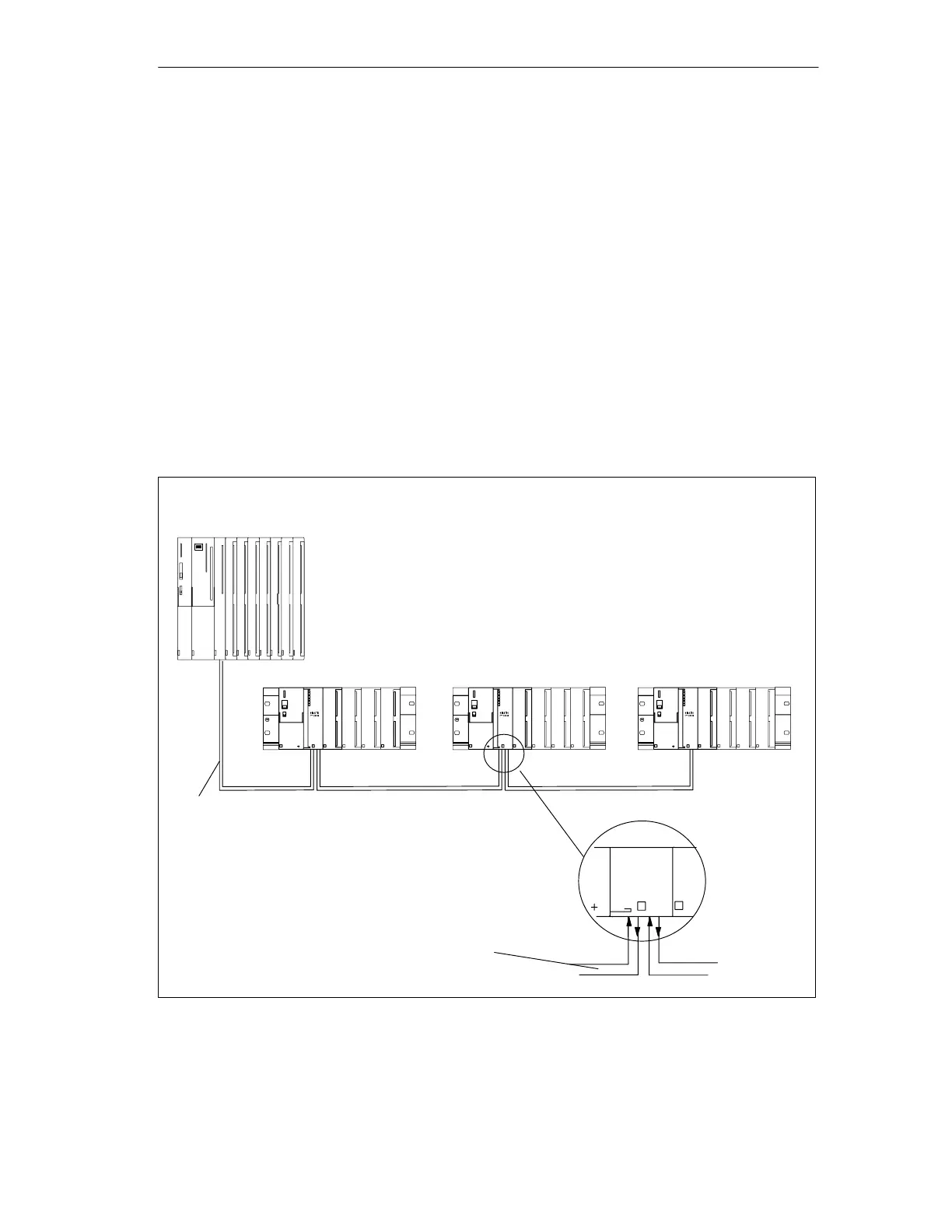

Figure 3-10 Fiber-optic network with the IM 153-2 FO
Further information on network configuration and network components can be
found in the manual SIMATIC NET; PROFIBUS Networks (Order No.
6GK1 970-5CA20-0BA0).
