Installation
4-10
Distributed I/O Device ET 200M
EWA-4NEB780600602-06

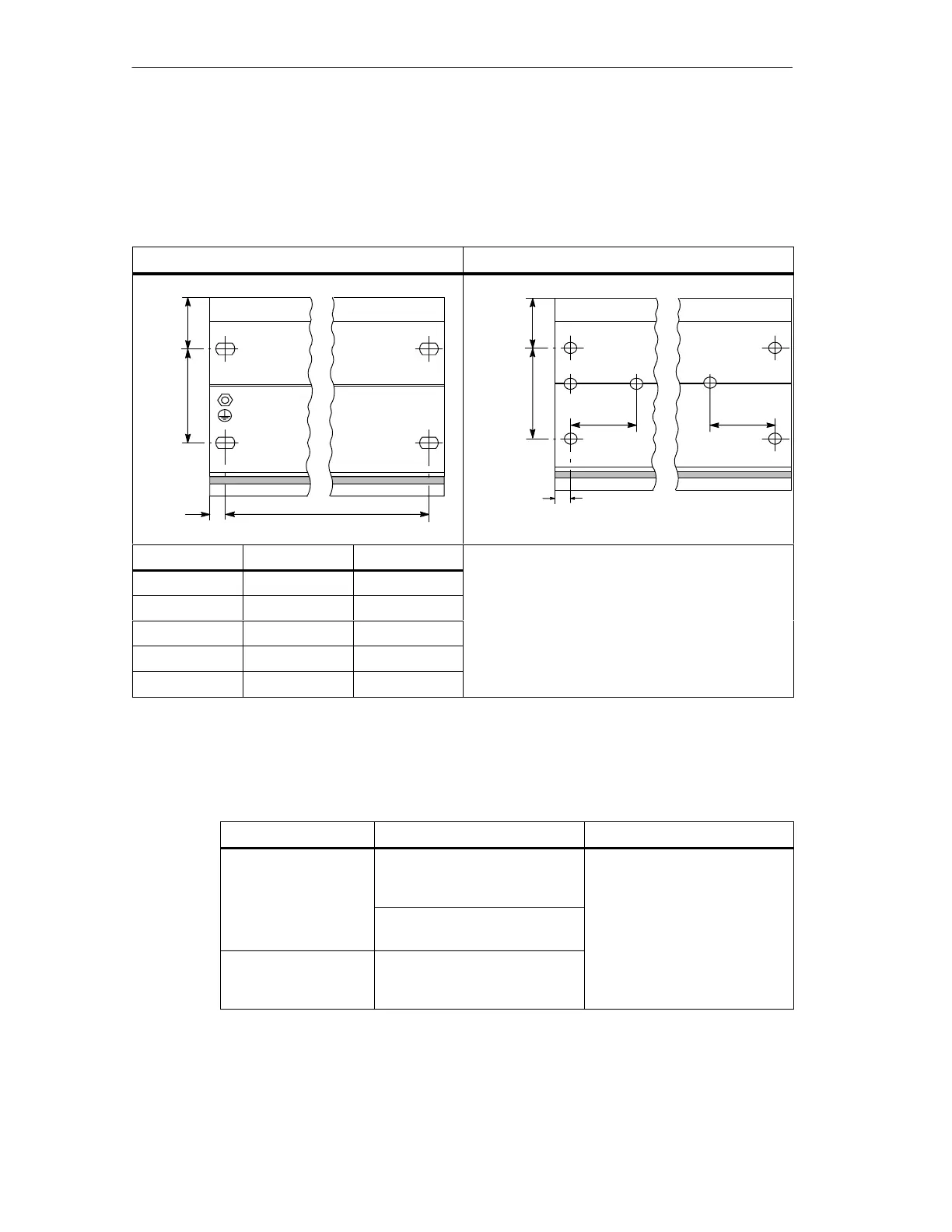

Dimensioned Drawing for Fixing Holes
The fixing-hole dimensions for the rail are shown in Table4-1.
Table 4-1 Fixing holes for rails
Din Rail
2 m Rail
32.5
mm
57.2
mm
a
b
32.5 mm
57.2 mm
15 mm
approx.
500 mm
approx.
500 mm
Length of Rail Dimension a Dimension b –
160 mm 10 mm 140 mm
482.6 mm 8.3 mm 466 mm
530 mm 15 mm 500 mm
620 mm 15 mm 590 mm
830 mm 15 mm 800 mm
Fixing Screws
You have a choice of the following screw types for fixing the rail.
For Type of Screw Description
Lateral fixing screws M6 cheese-head screw M6 to
ISO 1207/ ISO 1580
(DIN 84/DIN 85)
Choose a suitable screw length
for your configuration.
You will also require 6.4 was-
M6 hexagon-head screw to ISO
4017 (DIN 4017)
hers to ISO 7092 (DIN 433)
Extra fixing screw
(only for 2 m rail)
M6 cheese-head screw to
ISO 1207/ ISO 1580
(DIN 84/DIN 85)
