Maintenance
7-9
Distributed I/O Device ET 200M
EWA-4NEB780600602-06
Removing the Front Connector Coding Key
Prior to installing the new module, you must remove the front connector coding key
from the new module. Reason: This part is already in the wired front connector
(see Figure 7-1).

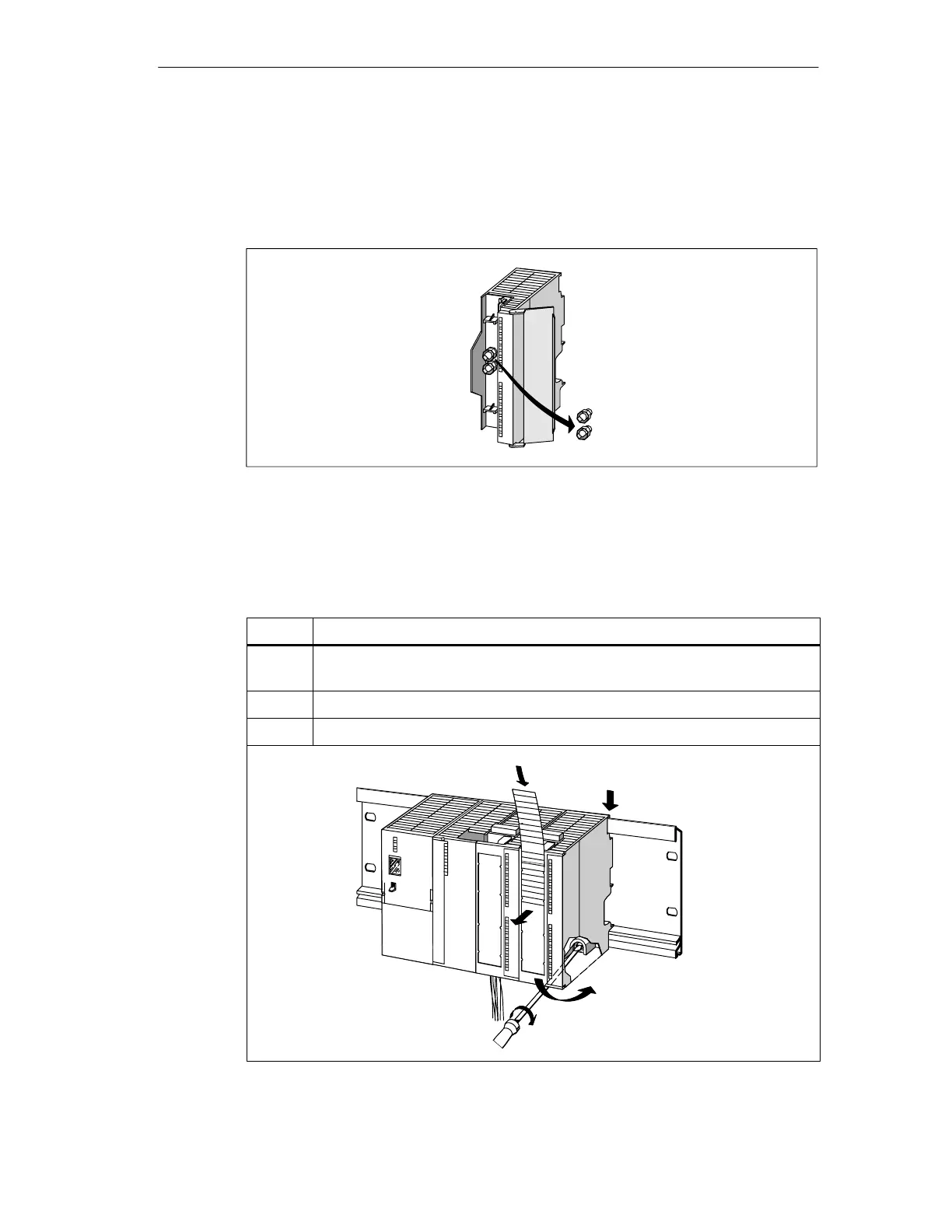

Figure 7-1 Removing the front connector coding key
Installing a New Module
Table 7-2 Installing new modules
Step Installing a Module
1. Hook the new module of the same type onto the rail and swing it down
into place.
2. Screw the module on securely.
3. Push the labeling strip of the old module into place on the new module.
ET–0056
1a
2
3
1b
