Wiring
5-7
Distributed I/O Device ET 200M
EWA-4NEB780600602-06
ET 200M in the Overall Configuration

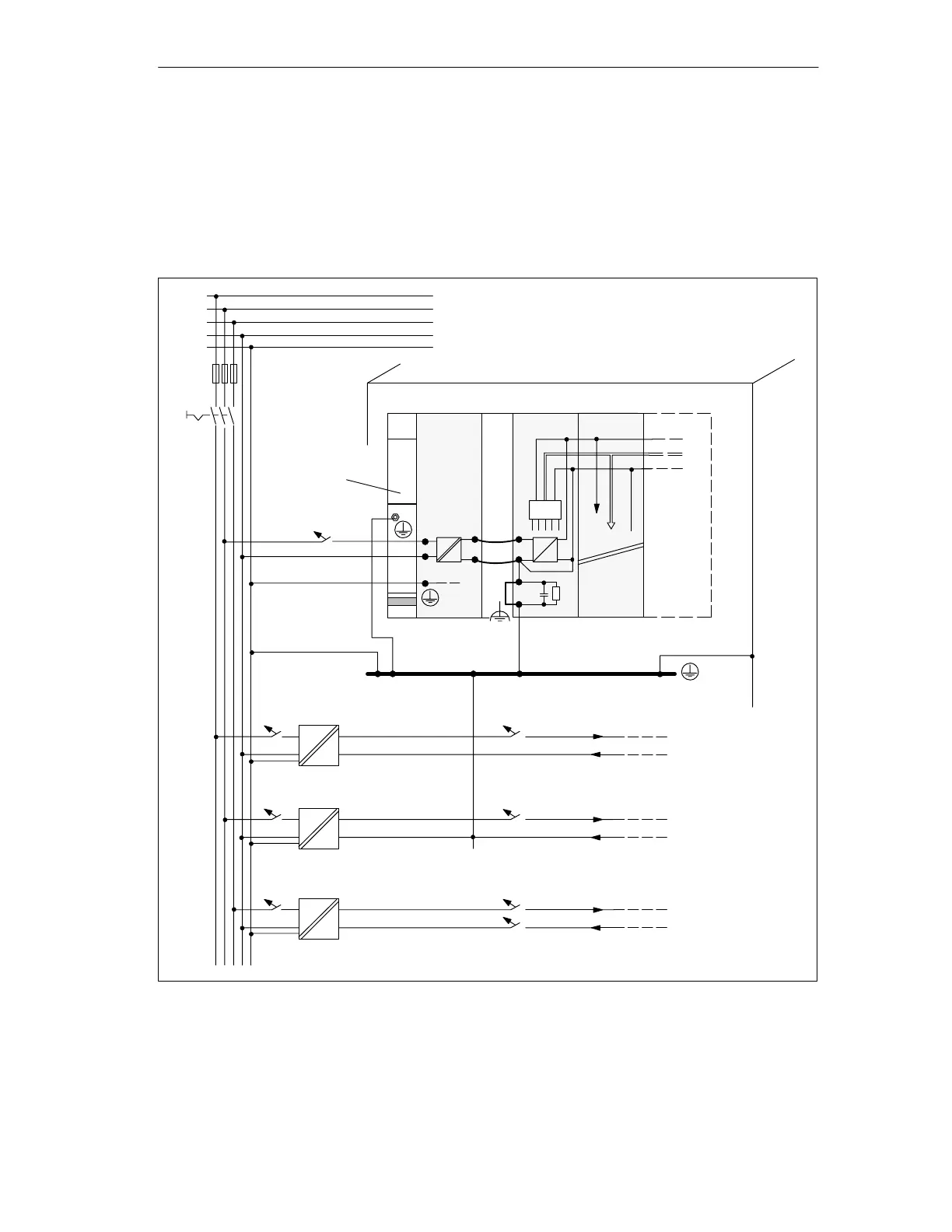

Figure 5-1 shows you the position of the ET 200M in the overall configuration (load
power supply and grounding concept) with power infeed from a TN-S system.
Note: The illustration of the power supply connections does not reflect the actual
physical arrangement; this has been done to improve clarity.
Ground bus in cabinet
N
M
L1
L +
M
PS
mP
L1
L2
L3
N
Load circuit
24 to 230V AC for AC modules
5 to 60V DC load circuit for
non-isolated DC modules
5 to 60V DC load circuit for
isolated DC modules
Cabinet
AC
AC
AC
DC
AC
DC
S7-300 modules
Low-voltage distribution
For example, TN-S system
(3 400 V)
PI
SM/FM
Rail
IM 153-x
Figure 5-1 S7-300 modules operated on a grounded incoming supply
