Siemens SIMATIC ET 200M

Technical Specifications
8-11
Distributed I/O Device ET 200M
EWA-4NEB780600602-06

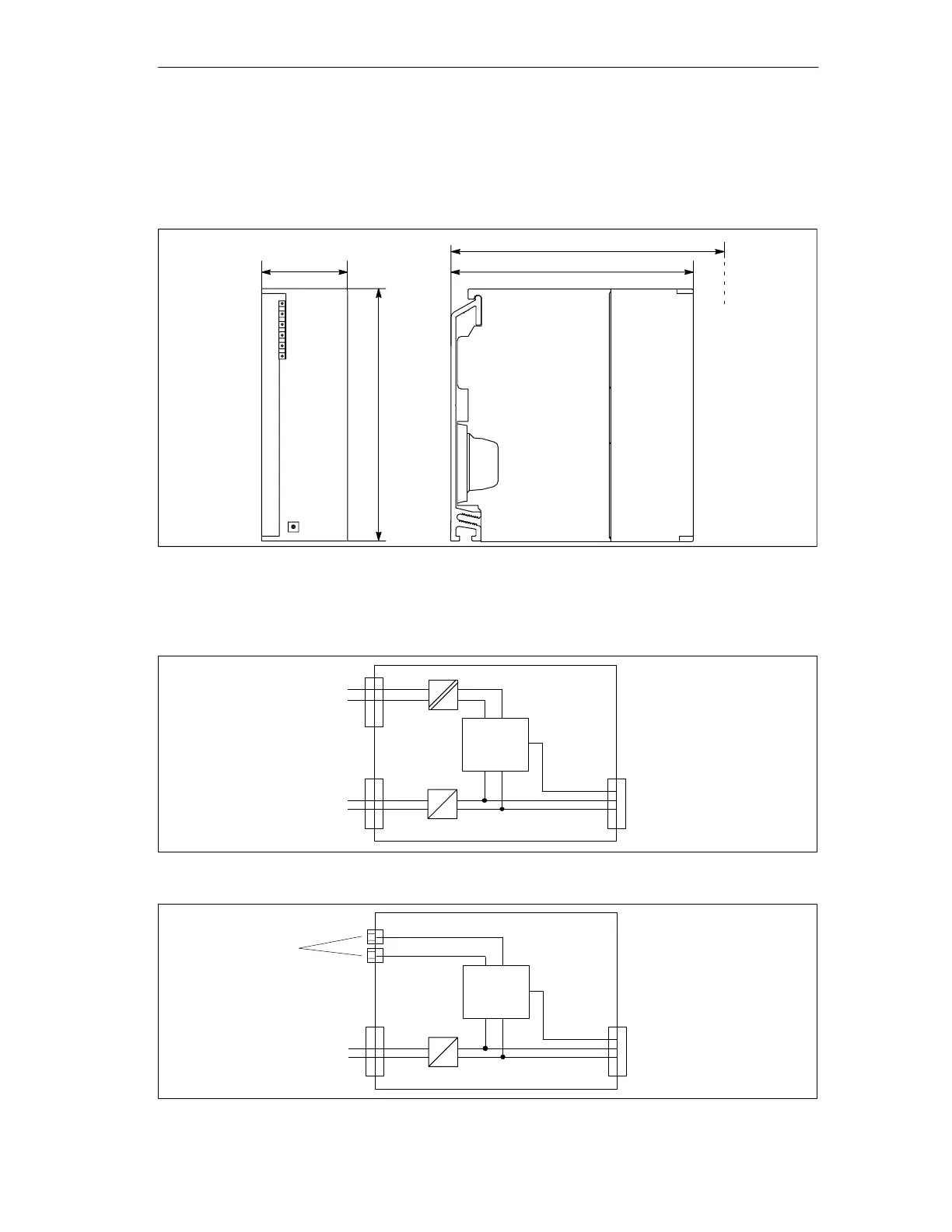

Dimensioned Drawing of the IM 153-1/-2/-2 FO
You can find a dimensioned drawing of the rail for the active bus modules in the
Module Specifications Reference Manual.
12040
125
160 with front door open
Figure 8-1 Dimensioned drawing of the IM 153-1 and IM 153-2
Basic Circuit Diagram of the IM 153-1/-2/-2 FO
Logic
M
L1+
Power supply
PROFIBUS-DP
Backplane bus
Figure 8-2 Basic circuit diagram of the IM 153-1 and IM 153-2
Logic
M
L1+
Power
supply
Backplane bus
Fiber-optic
interfaces
Figure 8-3 Basic circuit diagram of the IM 153-2 FO
