Installation
4-2
Distributed I/O Device ET 200M
EWA-4NEB780600602-06
4.1 Mechanical Configuration
In This Section
Section Subject Page
4.1.1 Horizontal and Vertical Installation 4-2
4.1.2 Clearance Measurements 4-3
4.1.3 Arrangement of the Modules in an ET 200M Configuration 4-4
4.1.4 Rules for Configuring the ”Module Change During Operation” and
”Redundancy” Functions
4-5
4.1.1 Horizontal and Vertical Installation
You can install the ET 200M horizontally or vertically.
Permissible Ambient Temperature
Horizontal installation From 0 to 60 C
Vertical installation From 0 to 40 C
Installing the ET 200M together with IM 153-1AA8x (outdoor) and outdoor modules
extends the specified temperature range to –25 °C.
Horizontal installation
Vertical installation
You must always position the IM 153-x and the
power supply at the bottom or on the left.

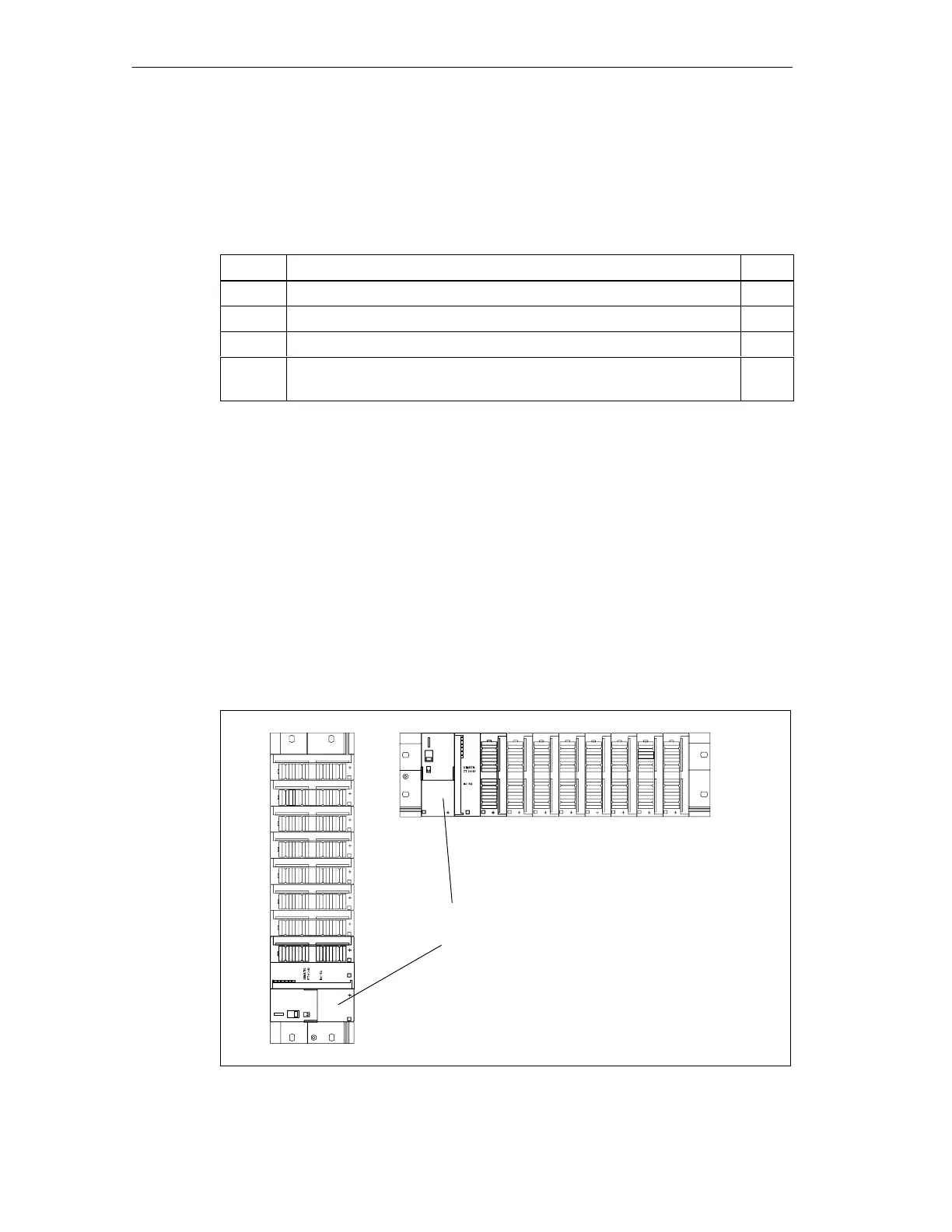

Figure 4-1 Horizontal and vertical installation of an ET 200M
