2.7 Configuration
1. Start the SIMATIC Manager and create a new project with a
DP master (e.g. CPU 315-2 DP). In addition to OB 1 also create OB 82 for the
project.
2. Add the IM 153-2 from the hardware catalog to the PROFIBUS.
3. Set PROFIBUS address 3 for IM 153-2.
4. Drag the individual modules out of the hardware catalog and drop them onto the
configuration table.

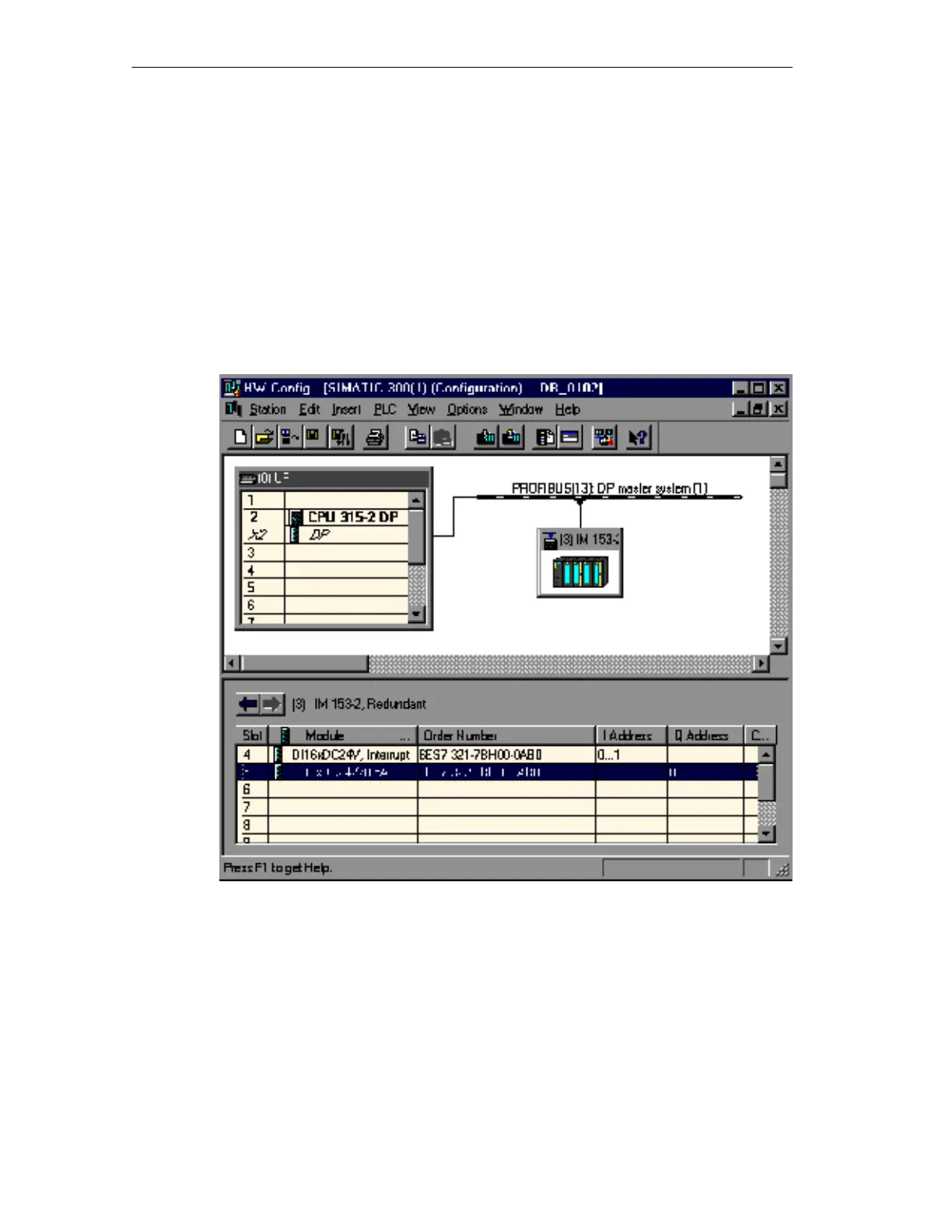

Figure 2-4 Configuration table for ET 200M
