Installing and connecting the device
3.2 Installing the device
SIMATIC IPC547D
Operating Instructions, 06/2011, A5E03473780-01
29
3.2.2 Mounting location and position
Optional mounting locations
The device can be mounted in control desks, switching cabinets and 19" rack systems, both
horizontally and vertically.
Possible mounting positions
You can mount the device as follows:
● Mounting with mounting brackets, horizontal
● Mounting on device bases, horizontal
● Tower installation, vertical: a separate tower kit can be ordered for tower installation (not
available in some countries).
● Mounting on telescopic rails
When telescopic rails are used for mounting, the device can be withdrawn fully from the
cabinet or rack. For detailed information on telescopic rails, see the sections "Technical
specifications of the telescopic rails
(Page 102)" and "Dimensional drawing for the use of
telescopi
c rails (Page 94)".

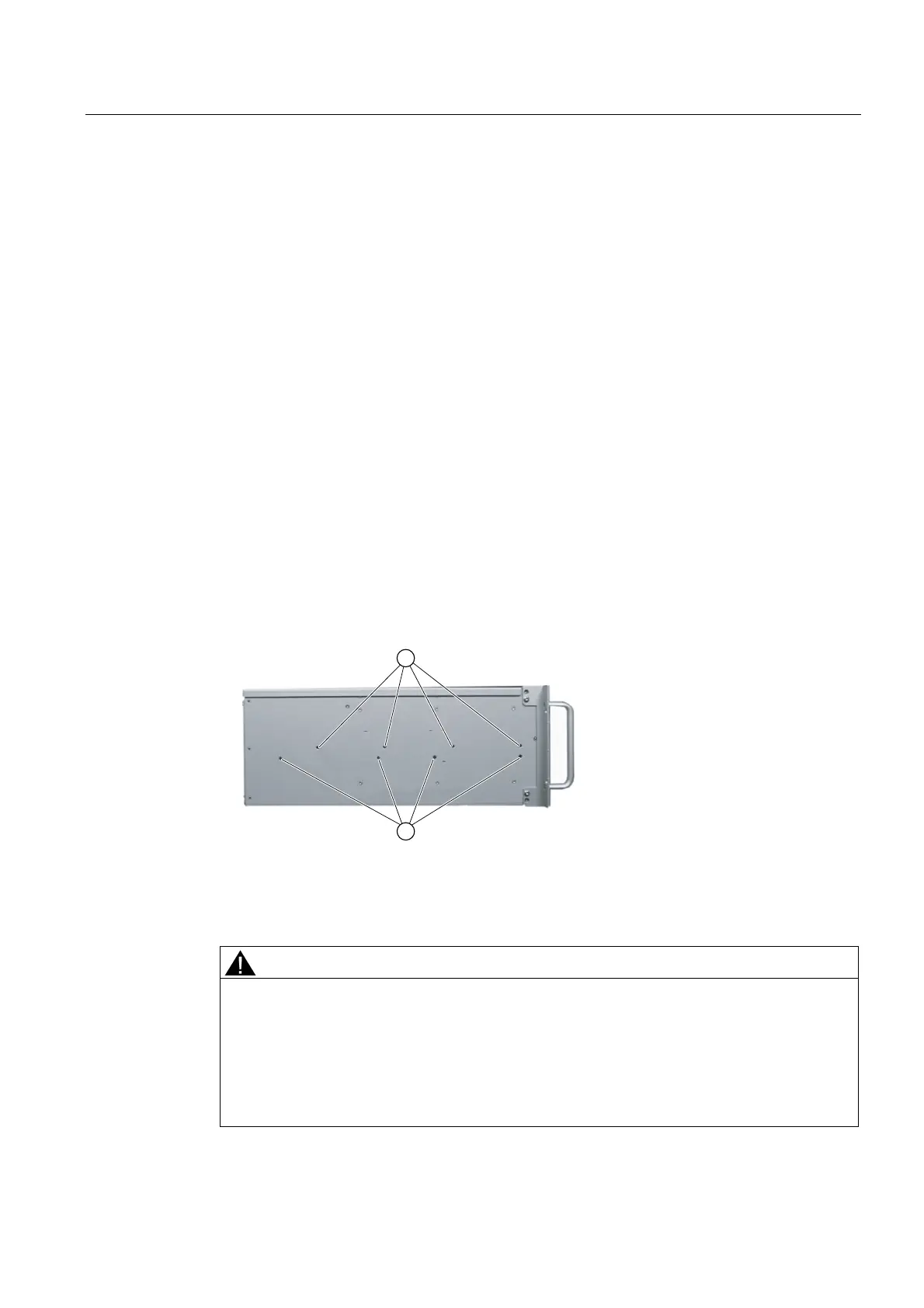

The followi
ng figure shows the position of the mounting holes for angle brackets or
telescopic rails.
①
Threaded holes for type 3659 telescopic rails from the Rittal company
②
Threaded holes for type 20110-072 telescopic rails from the Schroff company
CAUTION
Risk of physical injury
The device is too heavy to be mounted exclusively with the 19 inch brackets of the front
panel.
The device may fall down, injure people and get damaged.
Secure the device using additional measures. The mounting screws of the telescopic rails
may not protrude more than 5 mm into the device..
