Installing hardware expansions
6.5 Disk drives
SIMATIC IPC547D
66 Operating Instructions, 06/2011, A5E03473780-01
6.5.5 Removing and installing internal hard disks
Requirement
● The device is disconnected from the power network.
● The device is opened.
Procedure for removing the hard disk drive
1. Disconnect the power supply and data cables from the drive.

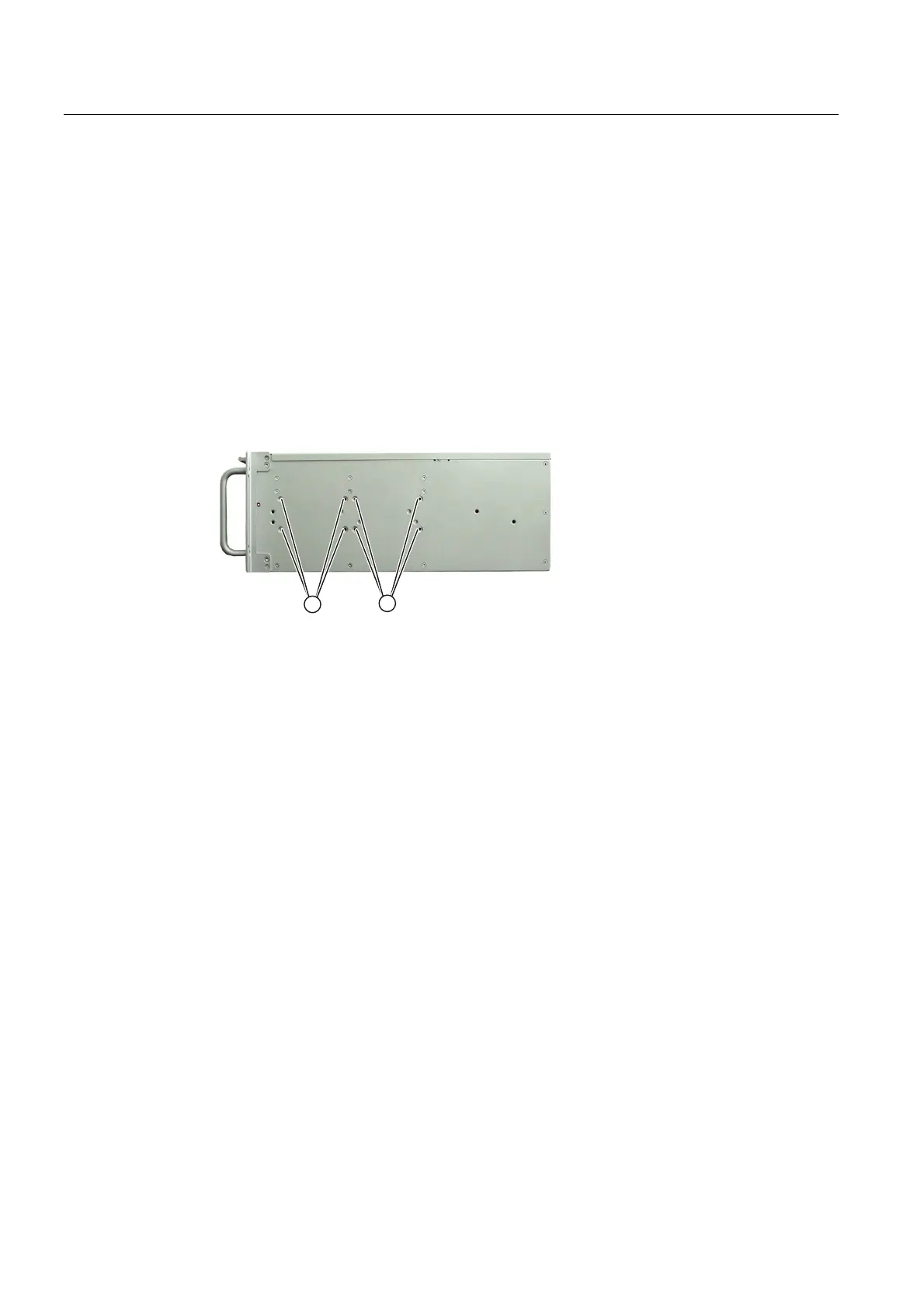

2. Loosen the four screws
① or ② on the drive bay plate and remove the drive from the
housing.


Procedure for installing the hard disk drive
1. Place the drive onto the drive bay plate and secure the drive with four screws ① or ②.
2. Connect the power and data cables to the drive.
