Siemens SIMATIC IPC547D - Removing and Installing the Drive from the Removable Rack

Installing hardware expansions
6.5 Disk drives
SIMATIC IPC547D
Operating Instructions, 06/2011, A5E03473780-01
63
4. Secure the drive or the removable rack to the slot with 4 screws.
The screws to be installed on the right side of the slot for a maximum configuration are

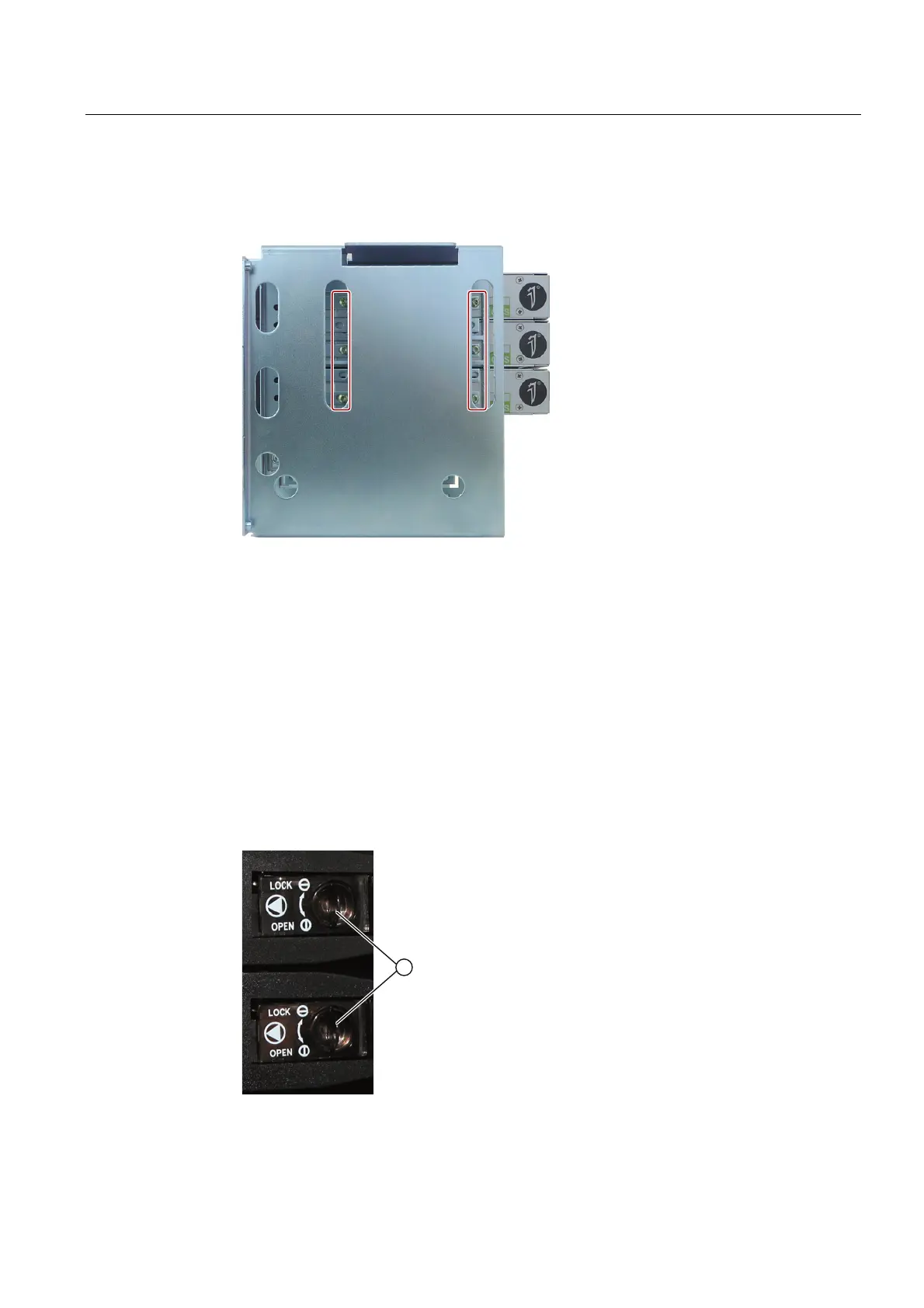

highlighted in the following figure.
5. Install the driver module again.
6. Connect the power and data cables to the drive.
6.5.4 Removing and installing the drive from the removable rack
Requirement
● T10 screwdriver
Procedure - Removing drive from the removable rack
1. Turn the locking switch ① to the "OPEN" position.

