Installing hardware expansions
6.5 Disk drives
SIMATIC IPC547D
64 Operating Instructions, 06/2011, A5E03473780-01

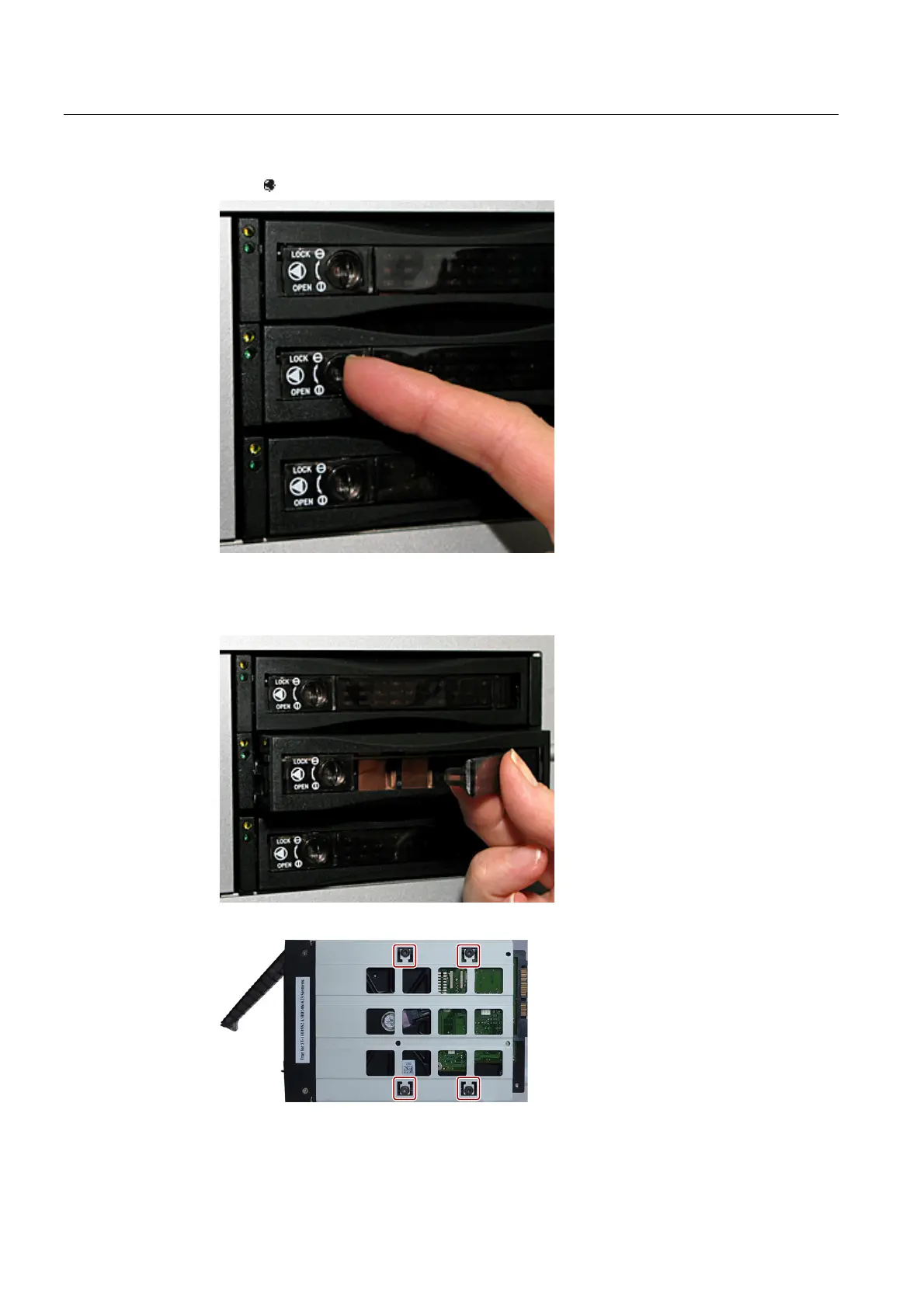

2. Press .
The lever of the hard disk drive cartridge opens.
3. Pull the lever out until you feel the hard disk cartridge release and then pull it out
completely.
4. Loosen the four screws on the base of the hard disk cartridge.
5. Pull the drive out of the hard disk cartridge.
