Device maintenance and repair
7.1 Removing and installing hardware components
SIMATIC IPC547D
Operating Instructions, 06/2011, A5E03473780-01
69
Procedure

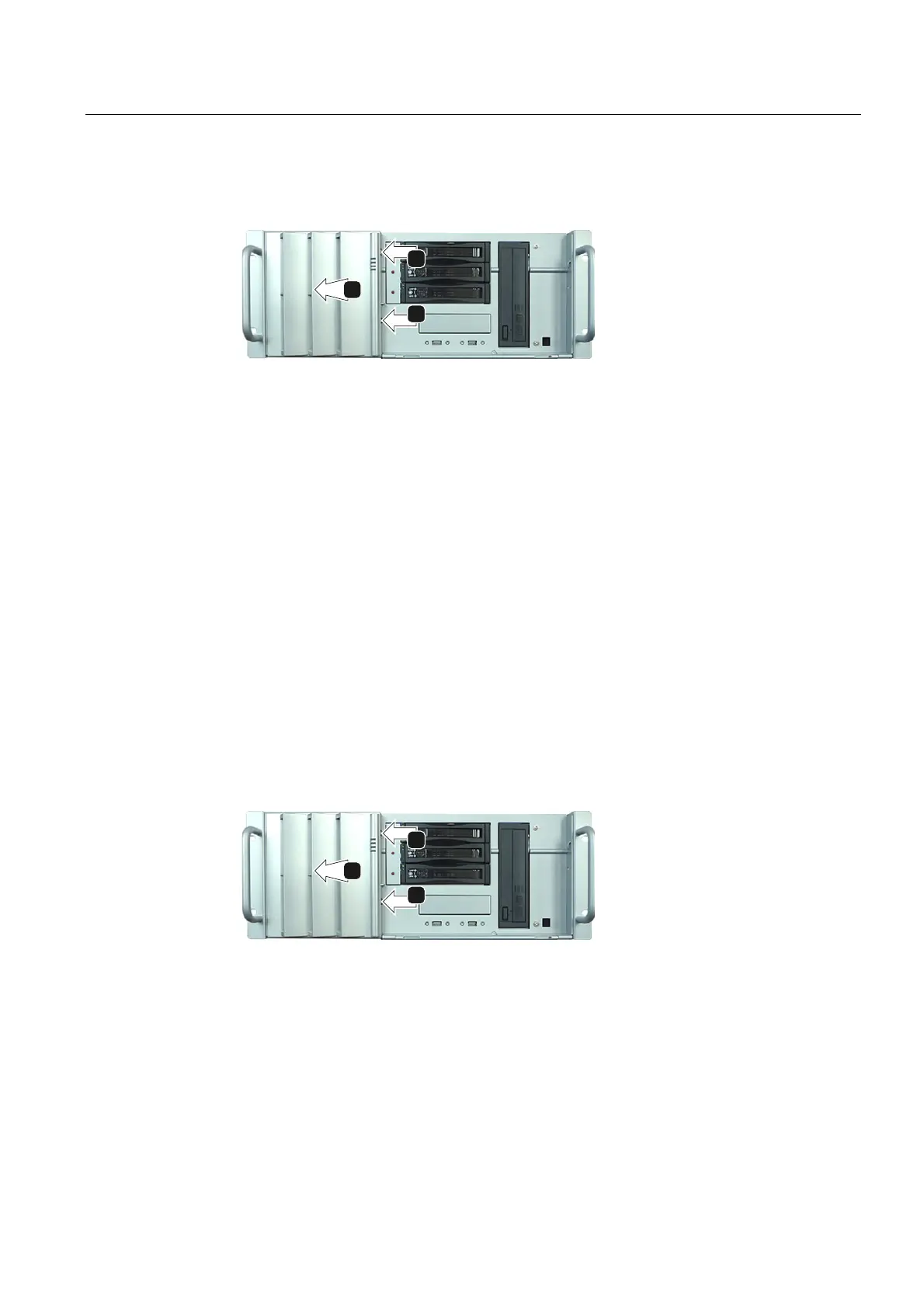

1. Press the marked hooks at the same time to release the front cover.



2. Move the front cover in the direction of the arrow.
3. Remove the front panel.
4. Remove the filter from the front cover.
7.1.4 Removing the device fan
Requirement
● The device is disconnected from the power network
● The front panel cover is open
● T20 screwdriver
● A fan
Use only a fan of the same type.
Procedure - Removing the fan
1. Press the marked hooks at the same time to release the front cover.



2. Move the front cover in the direction of the arrow.
3. Remove the front panel.
4. Open the housing cover.
5. Pull the fan plug from the motherboard.
