Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC547D
32 Operating Instructions, 06/2011, A5E03473780-01
Procedure

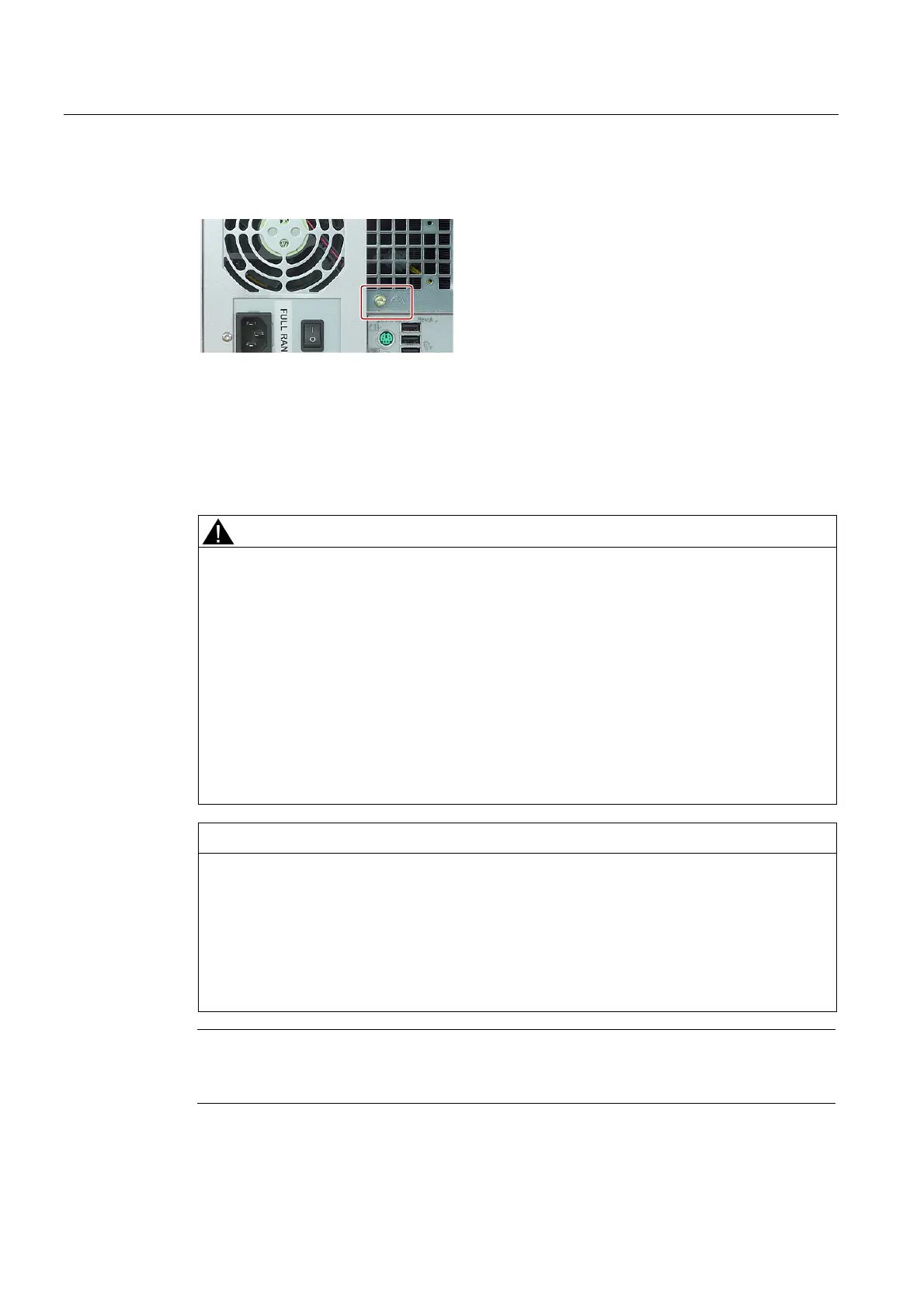

1. Connect the marked equipotential bonding
connection to the PE conductor of the
switchgear cabinet where the device is
installed.
The minimum cross-section of the
equipotential bonding line is 5 mm
2
.
3.3.3 Connecting the power supply
Note before you connect the device
WARNING
Injury to persons or damage to property when operated on an incorrect power supply
network
If you connect the device to an unsuitable power supply, the device receives voltages and
currents that are too high or too low.
Injuries to persons, malfunctions or a damage to the device can result.
Note the following information regarding the power supply network:
The permitted nominal voltage of the device must correspond to the local mains voltage.
Do not operate the device via non-grounded or impedance-grounded networks (IT
networks).
Operate the device only in grounded power networks (TN networks in accordance with
VDE 0100, Part 300 or IEC 60364-3).
NOTICE
Operation with uninterruptible power supply
An uninterruptible AC power supply (UPS) must be used when this device is operated with
a PFC (Power Factor Correction) circuit that supplies a sinusoidal output voltage in normal
and buffer mode.
UPS characteristics are described and classified in the standards EN 50091-3 or
IEC 62040-3. Devices with sinusoidal output voltage in the normal and buffered mode are
identified with the classification "VFI-SS-...." or "VI-SS-....".
Note
The power supply of the device contains a PFC (Power Factor Correction) circuit to conform
to the EMC directive.
