Device maintenance and repair
7.1 Removing and installing hardware components
SIMATIC IPC547D
74 Operating Instructions, 06/2011, A5E03473780-01
3. Disconnect all cables from the motherboard.

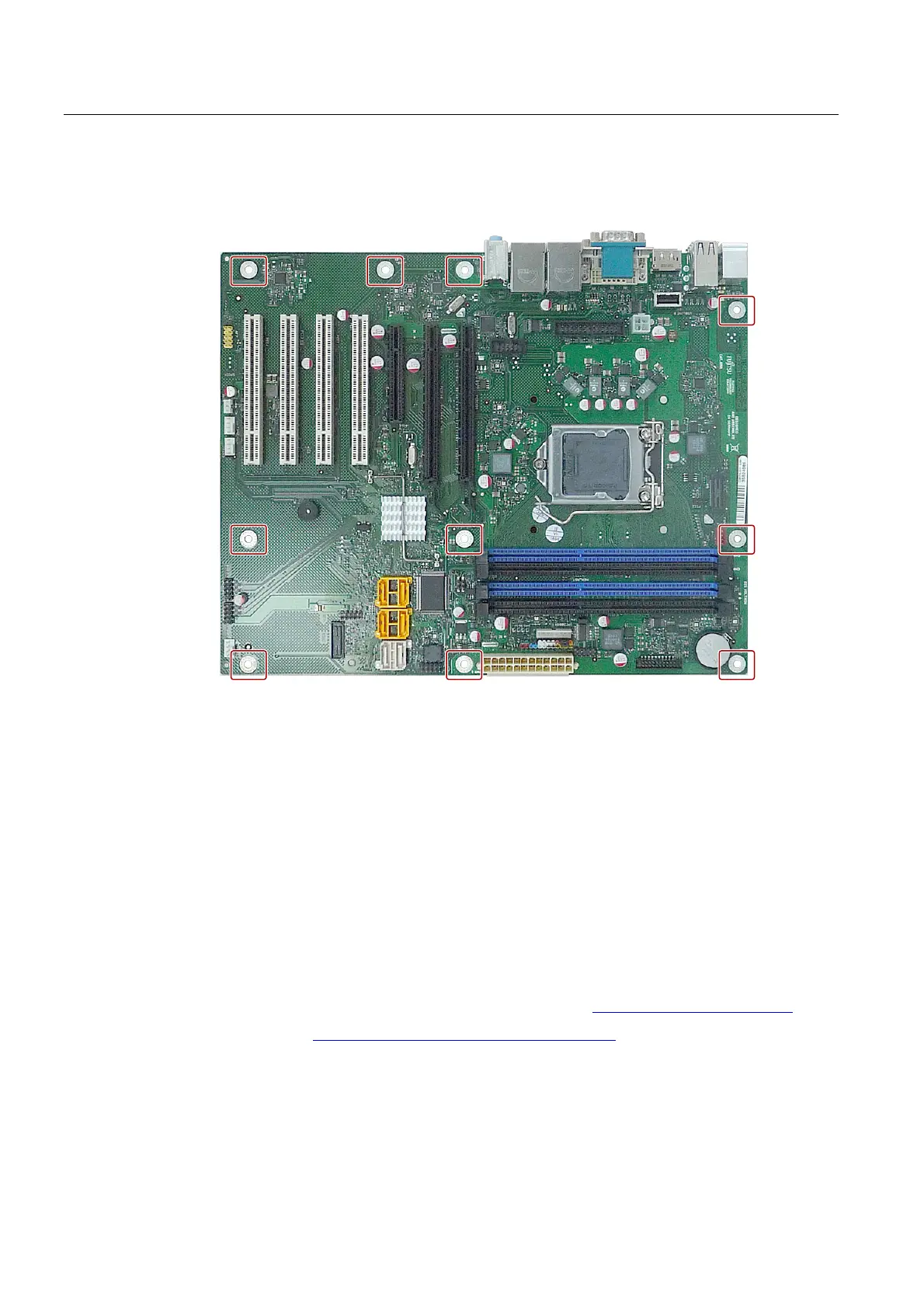

4. Remove the ten screws indicated in the following figure.
7.1.10 Replacing the processor
Requirement
● The device is disconnected from the power network.
● The device is opened.
● A suitable processor
Only an approved processor is permitted to be installed on the motherboard of the
device. If the processor type is changed, the BIOS must be updated so that the suitable
microcode is loaded. Information about original spare parts for SIMATIC IPCs is available
on the Internet at:
– After sales information system from SIMATIC IPC (http://www.siemens.com/asis
).
– Contacts (http://www.siemens.com/auto
mation/partner)
