Device maintenance and repair
7.1 Removing and installing hardware components
SIMATIC IPC547D
Operating Instructions, 06/2011, A5E03473780-01
75

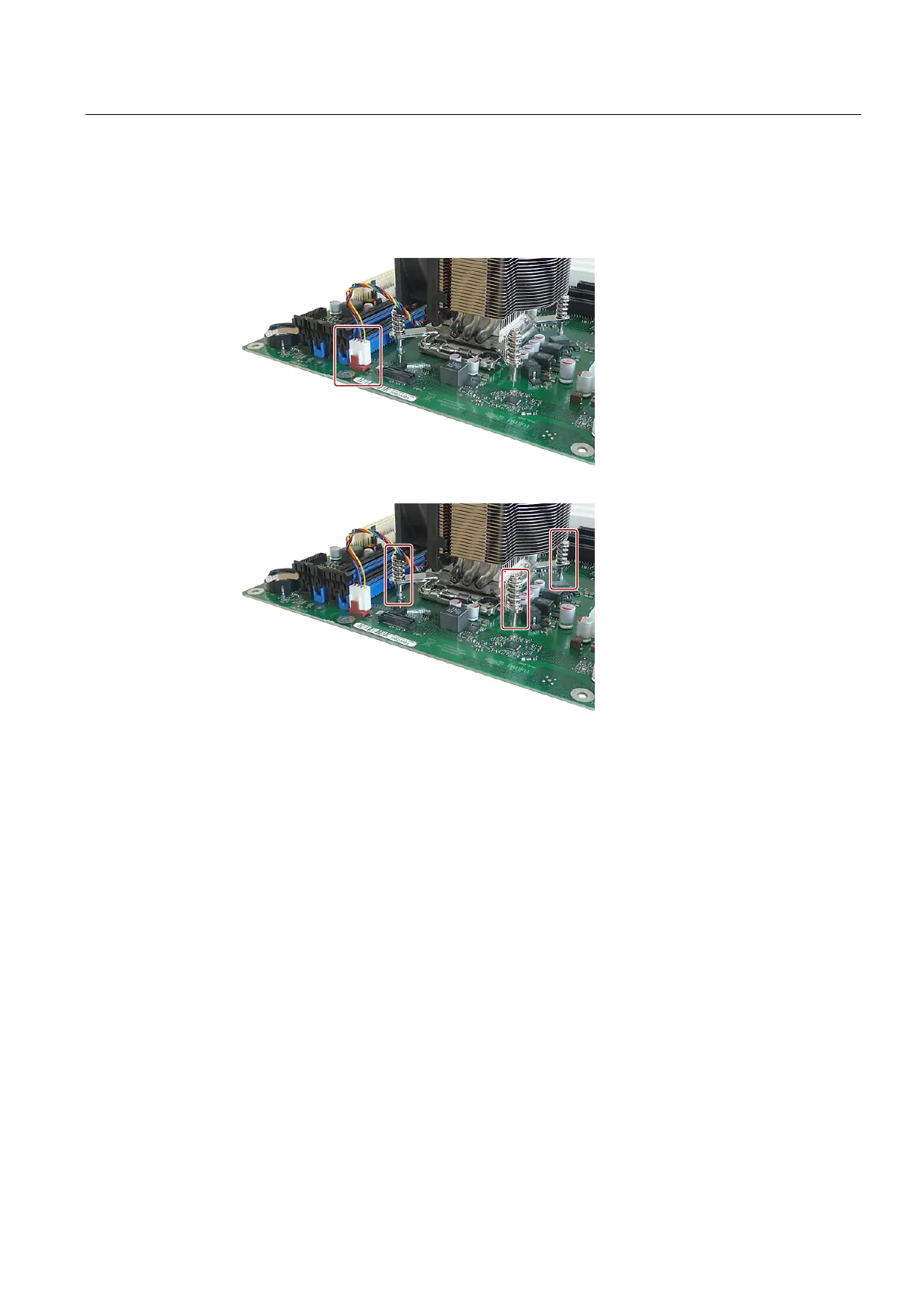

Procedure
1. Unlatch the fan rack on the heat sink and remove it.
2. Remove the highlighted fan connector.
3. Remove the highlighted screws.
The fourth screw is hidden by the heat sink in the figure.
4. Remove the heat sink.
5. Unlock the socket and lift the socket cover.
