Installing hardware expansions
6.2 Opening the front cover
SIMATIC IPC547D
58 Operating Instructions, 06/2011, A5E03473780-01

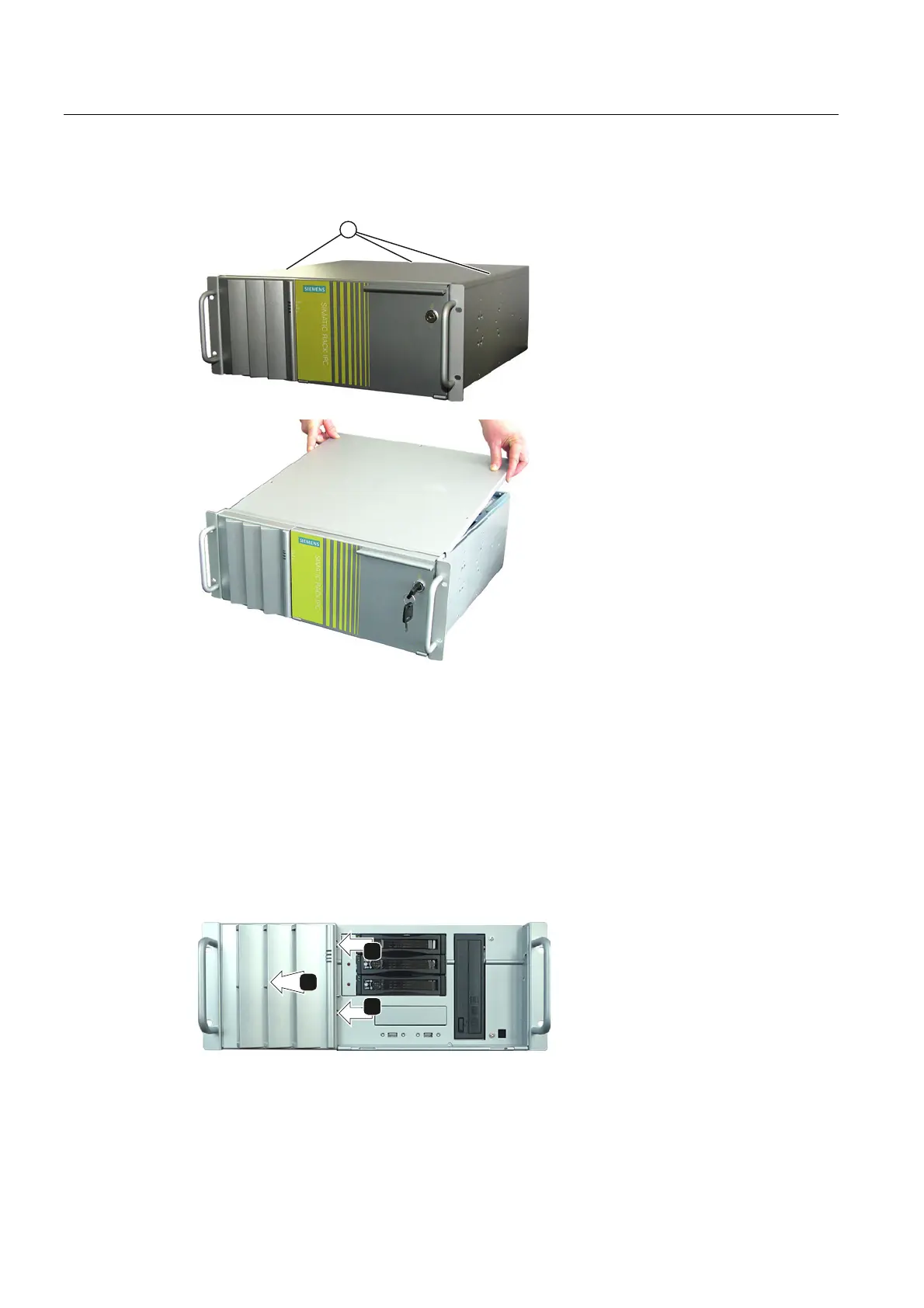

Procedure
1. Remove the retaining screws
①.
2. Lift the cover from the back and
remove it.
3. Open the front cover if necessary, see
chapter Opening the front cover
(Page 58).
6.2 Opening the front cover
Requirement
● The front panel cover is open.
Procedure
1. Press the marked hooks at the
same time to release the front
cover.
2. Move the front cover in the
direction of the arrow.
