Installing hardware expansions
6.5 Disk drives
SIMATIC IPC547D
Operating Instructions, 06/2011, A5E03473780-01
65
Procedure - Installing a drive in the removable rack
1. Carefully push the drive into the hard disk cartridge.
Do not touch the contacts.
2. Secure the drive with the four screws on the base of the hard disk cartridge. Use only the
original screws.
NOTICE
Damage to the hard disk cartridge
You can damage the hard disk cartridge by closing the lever prematurely.
Always slide the hard disk cartridge completely into the removable rack before you close
the lever.

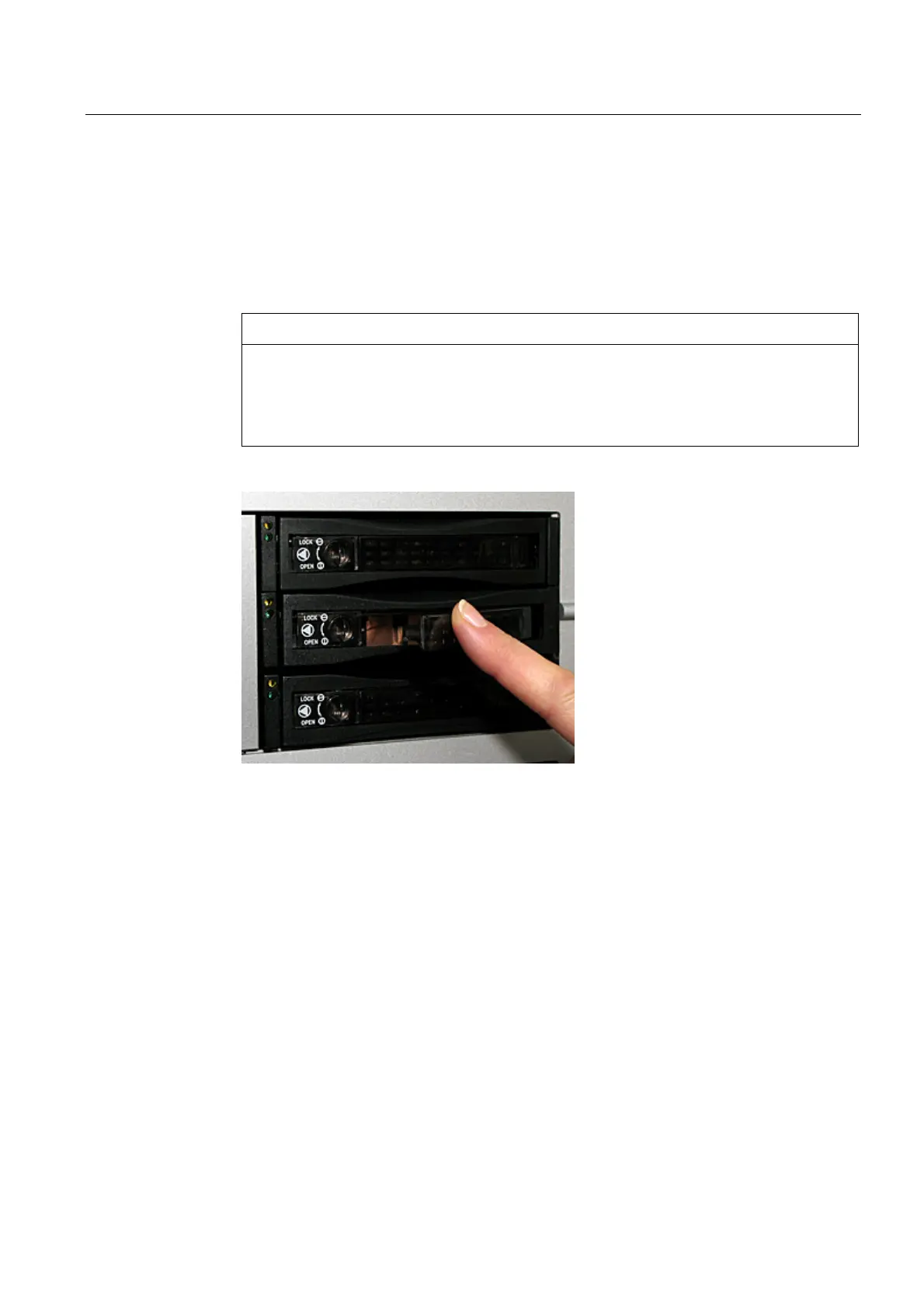

3. Close the lever of the hard disk cartridge again.
4. Return the locking switch to the "LOCK" position.
An audible tone signals that the removable rack is locked into position.
