Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC547D
34 Operating Instructions, 06/2011, A5E03473780-01

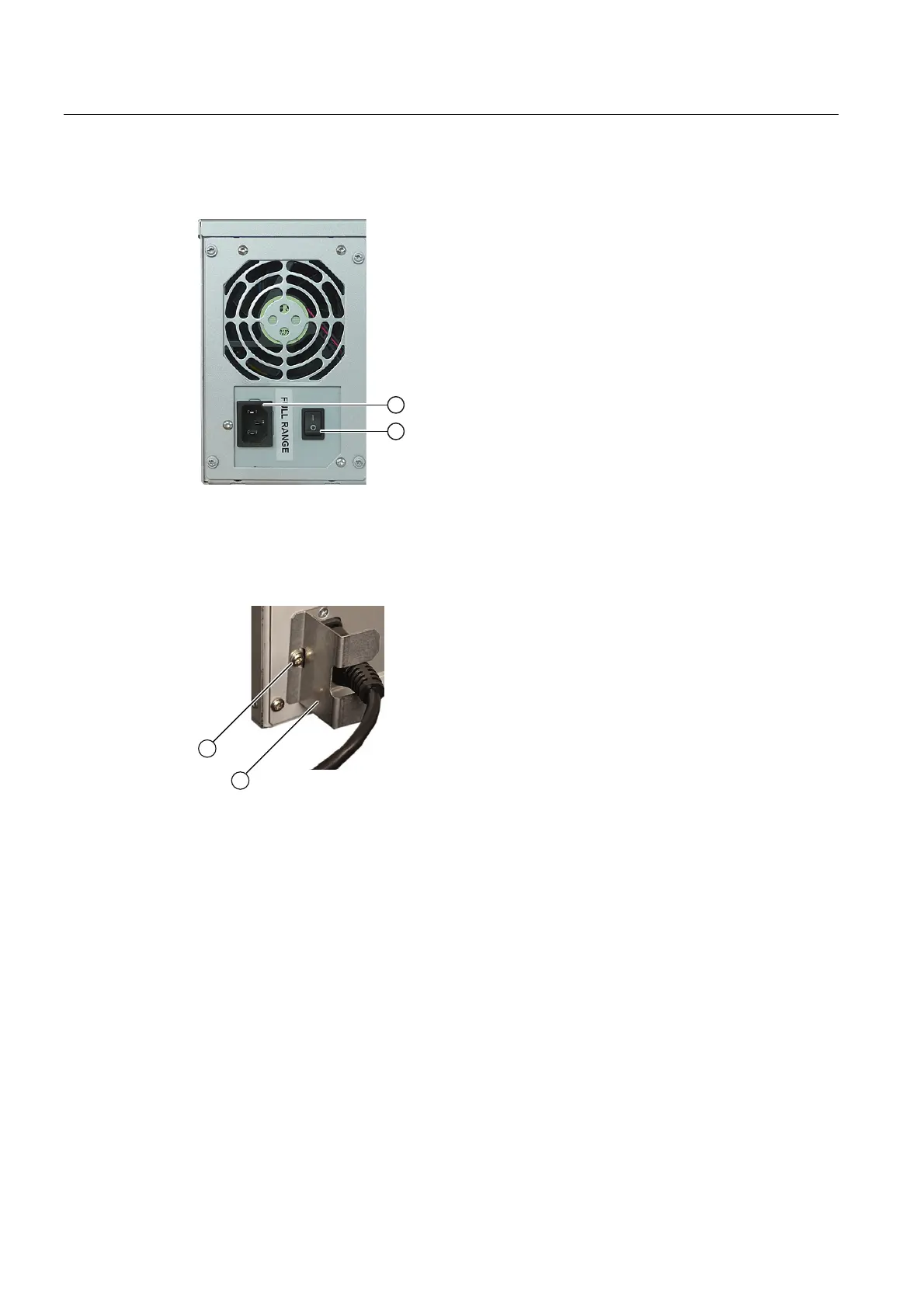

Procedure - connecting the power supply
1. Make sure that the on/off switch
② is in the
'0' (off) position.
This prevents unintentional startup of the
device when you plug in the power cable.
2. Connect the power cable to socket
①.
3. Insert the power cable in the electrical
socket.
4. Switch on the on/off switch
②.
Secure the power plug
To prevent unintentional removal of the power cable, you can secure the plug as follows:
1. Remove the retaining screw
①.
2. Screw on the latch for the power plug
②.
