Commissioning the device
4.3 Information on optional features
SIMATIC IPC547D
Operating Instructions, 06/2011, A5E03473780-01
45
Note
The following figures and notes apply only to the delivery state of the device, assuming
that no changes or expansions have been made.
Installation location

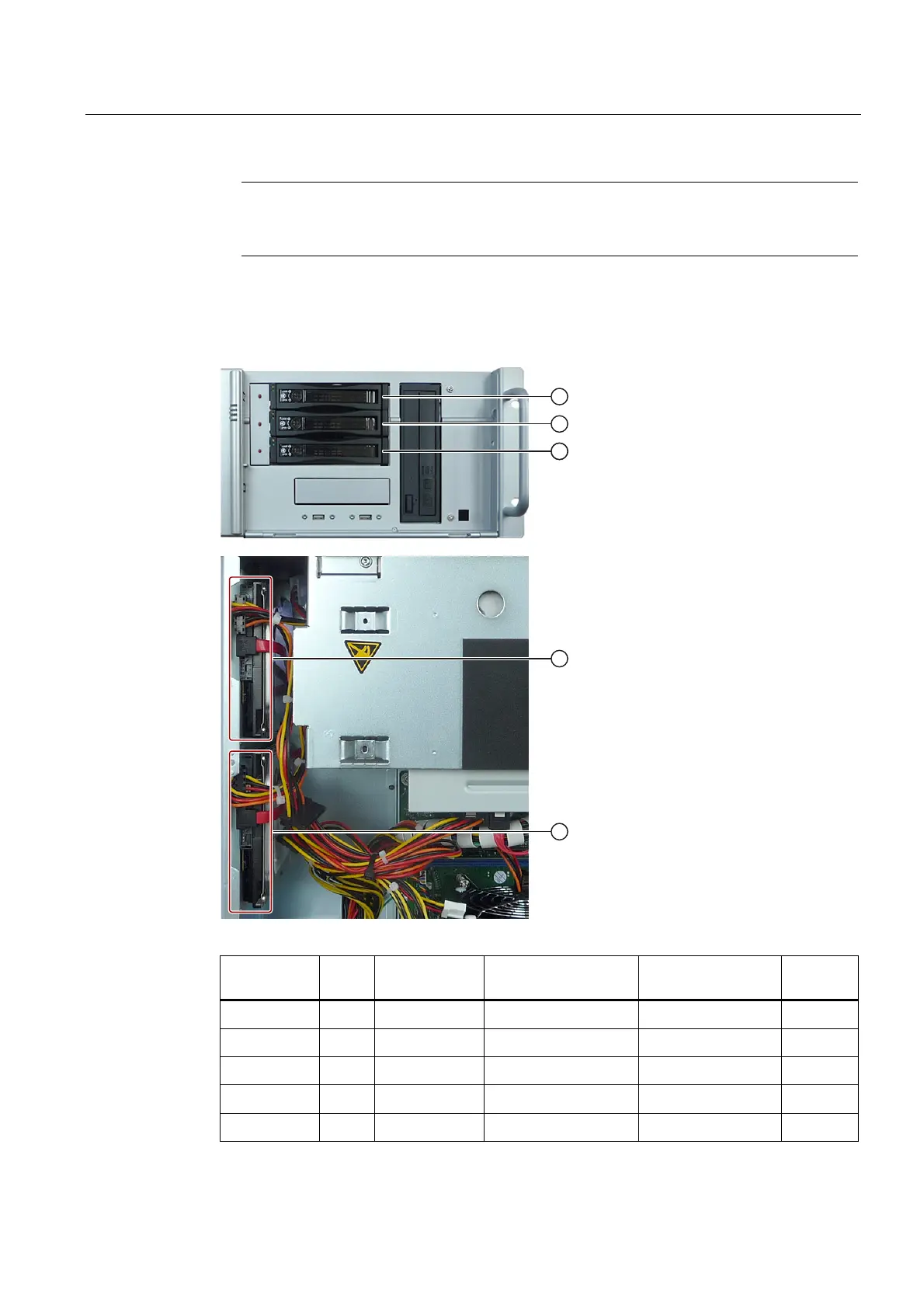

The following figure shows a RAID1 system with two hard disks in the removable rack and
SSD.
①
Hard disk in removable rack
②
Hard disk in removable rack



③
SSD in removable rack
④
Hard disk on side panel


⑤
Hard disk on side panel
LED RAID
BIOS
RAID software SATA connection on
the motherboard
Installation location Enclosure
labeling
HDD0 alarm Port 0 Device port 0 SATA0
Removable rack ①
0
HDD1 alarm Port 1 Device port 1 SATA1
Removable rack ②
1
HDD2 alarm Port 2 Device port 2 SATA2
Removable rack
③
2
- Port 0 Device port 0 SATA0
Side wall ④
0
- Port 1 Device port 1 SATA1
Side wall ⑤
1
