Siemens SIMATIC IPC647D

Technical specifications
8.3 Dimension drawings
SIMATIC IPC647D
122 Operating Instructions, 01/2014, A5E32996306-AA
8.3.2

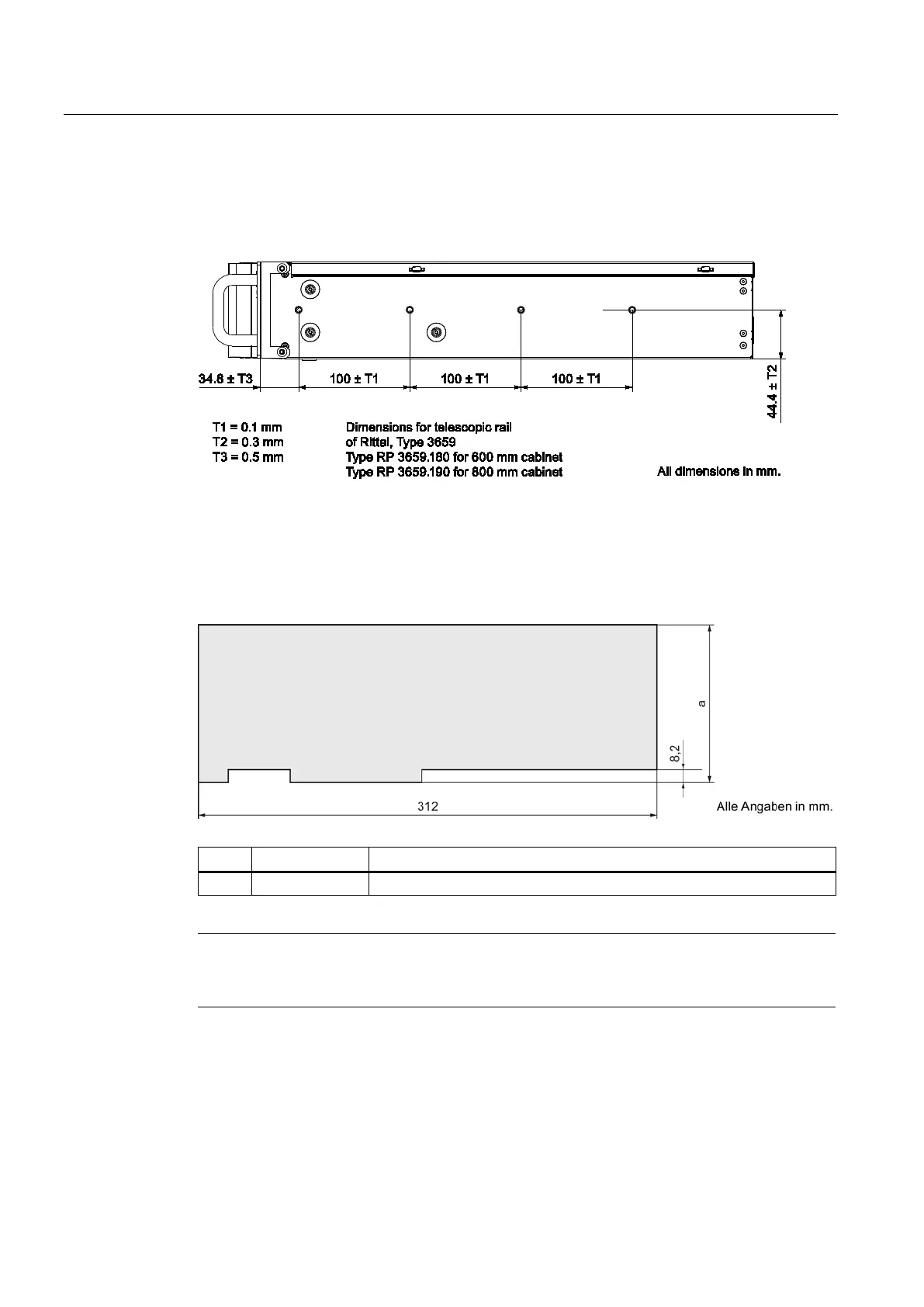

Dimension drawing of the telescopic rails
The following dimension drawing shows the dimensions of the telescopic rails from the Rittal
company.
8.3.3
Dimension drawing of the expansion cards
The following dimension drawing shows the main dimensions of the PCI and the PCI
Express expansion card without slot bracket and retainer.
PCI
PCIe
A
106.7 mm
111.2 mm
Note
Mounting of a retainer is required to ensure correct location of long expansion cards in the
provided guide rails.
